Installation GRS105/GRS106
Release 01 11/2021
49
For every supply voltage to be connected, perform the following work
steps:
 Remove the terminal block from the device.
 Connect the wires according to the pin assignment on the device with
the clamps.
 Fasten the wires in the terminal block by tightening the terminal
screws.
You find the prescribed tightening torque in chapter:
“General technical data” on page 61
6.6.2 Supply voltage characteristic value L
Exclusively supply your device with SELV/ES1 voltage.
You will find information on the characteristic values here:
“Device name and product code” on page 21
You have the option of supplying the supply voltage redundantly, with load
distribution.
Both supply voltage inputs are electrically isolated.

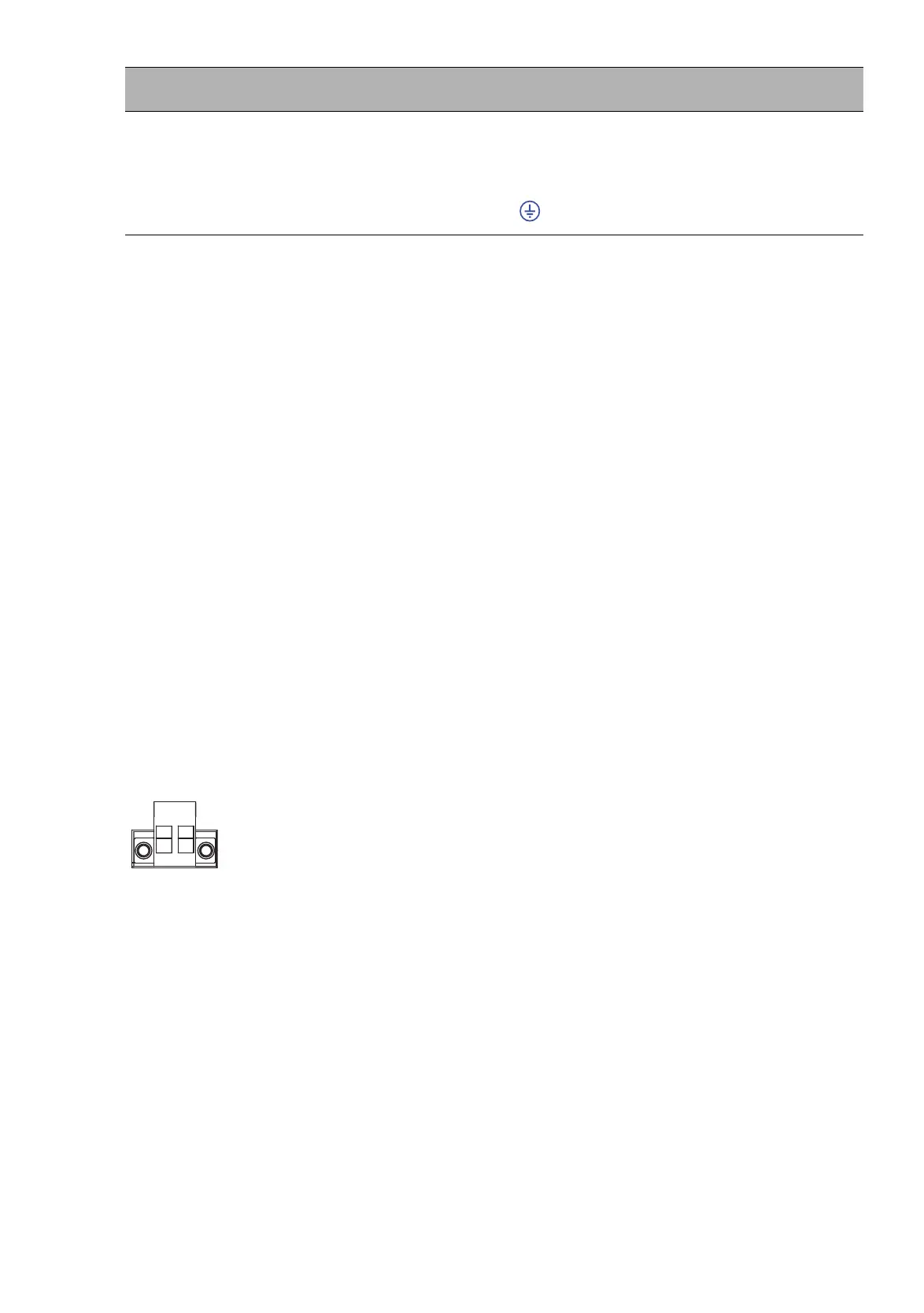

Figure 19: Supply voltage with characteristic value L: 2-pin terminal block with screw
lock
Type of the voltages
that can be connected
Specification of the
supply voltage
Pin assignment
DC voltage Rated voltage range
110 V DC ... 250 V DC
Voltage range incl.
maximum tolerances
88 V DC ... 288 V DC
+
-
Plus terminal of the supply voltage
Minus terminal of the supply voltage
Protective conductor
Table 14: Supply voltage with characteristic value M: type and specification of the
supply voltage, pin assignment on the device
−
+
