5.5.3 1/2.5 Gbit/s F/O port
This port is an SFP slot.
The port allows you to connect network components according to the
IEEE 802.3 1000BASE-SX/1000BASE-LX standard.
The port allows you to connect network components according to
IEEE 802.3bz 2.5GBASE-T.
This port supports:
Full duplex mode
Delivery state:
1 Gbit/s full duplex when using a Gigabit Ethernet SFP transceiver or
2.5 Gbit/s full duplex when using a 2.5 Gigabit Ethernet SFP transceiver.
Note: The F/O ports of the current device versions are not capable of
Fast Ethernet.
5.5.4 1/2.5/10 Gbit/s F/O port
This port is an SFP slot.
The port allows you to connect network components according to the
standards IEEE 802.3 1000BASE-SX/1000BASE-LX or IEEE 802.3
(Clause 49) 10GBASE-R.
This port supports:
Full duplex mode
Delivery state:
1 Gbit/s full duplex when using a Gigabit Ethernet SFP transceiver, or
2.5 Gbit/s full duplex when using a 2.5 Gigabit Ethernet SFP or 10 Gbit/s full
duplex when using a Gigabit Ethernet SFP+ transceiver.
Note: The F/O ports of the current device versions are not capable of
Fast Ethernet.
Pin Function
1BI_DB+
2BI_DB-
3BI_DA+
4BI_DD+
5BI_DD-
6BI_DA-
7BI_DC+
8BI_DC-

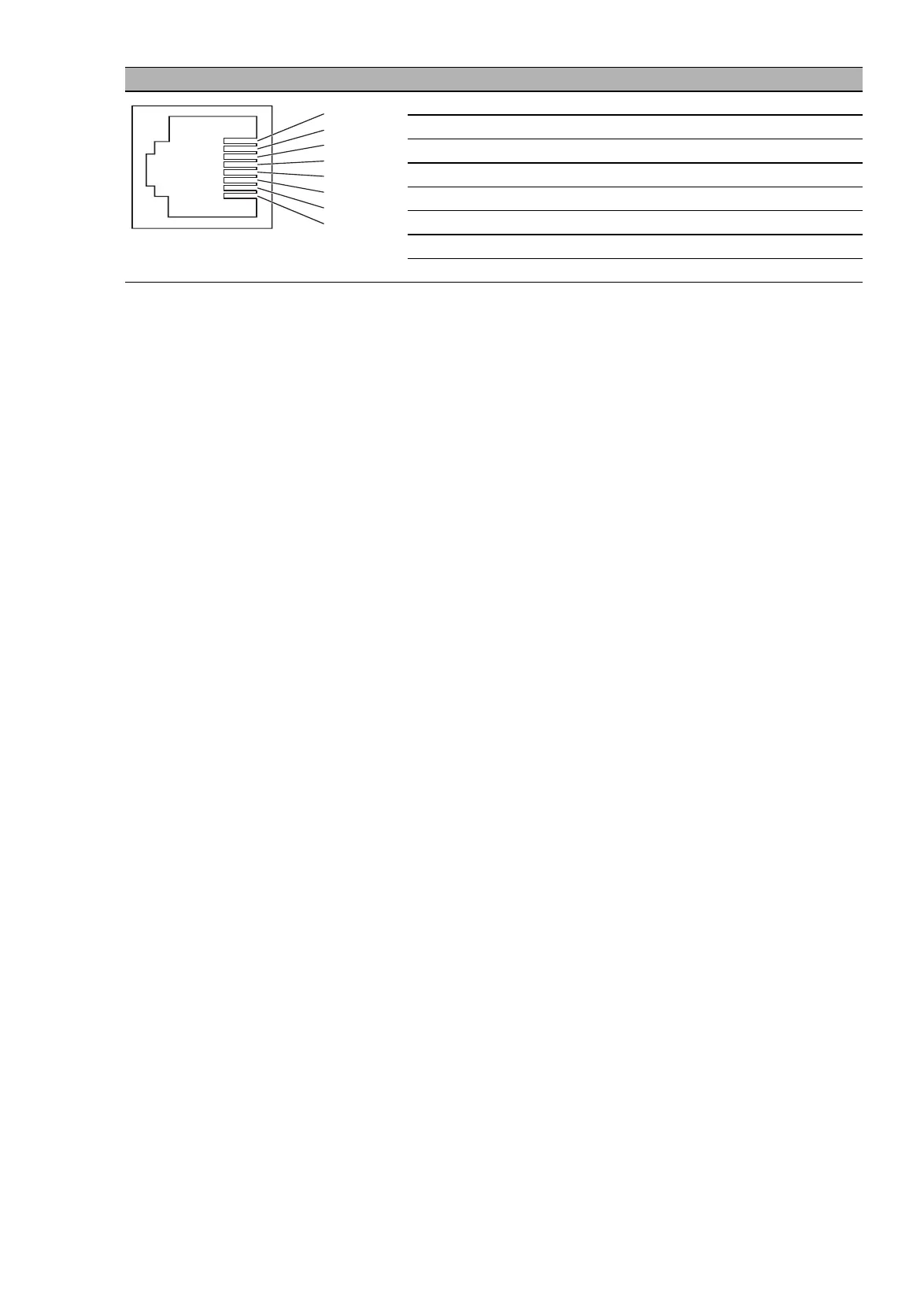

Table 13: Pin assignments of 100/1000/2500 Mbit/s twisted pair port, RJ45 socket,
MDI-X mode
1
2
3
4
5
6
7
8
