Installation OCTOPUS 8TX-EEC
Release 07 01/2021

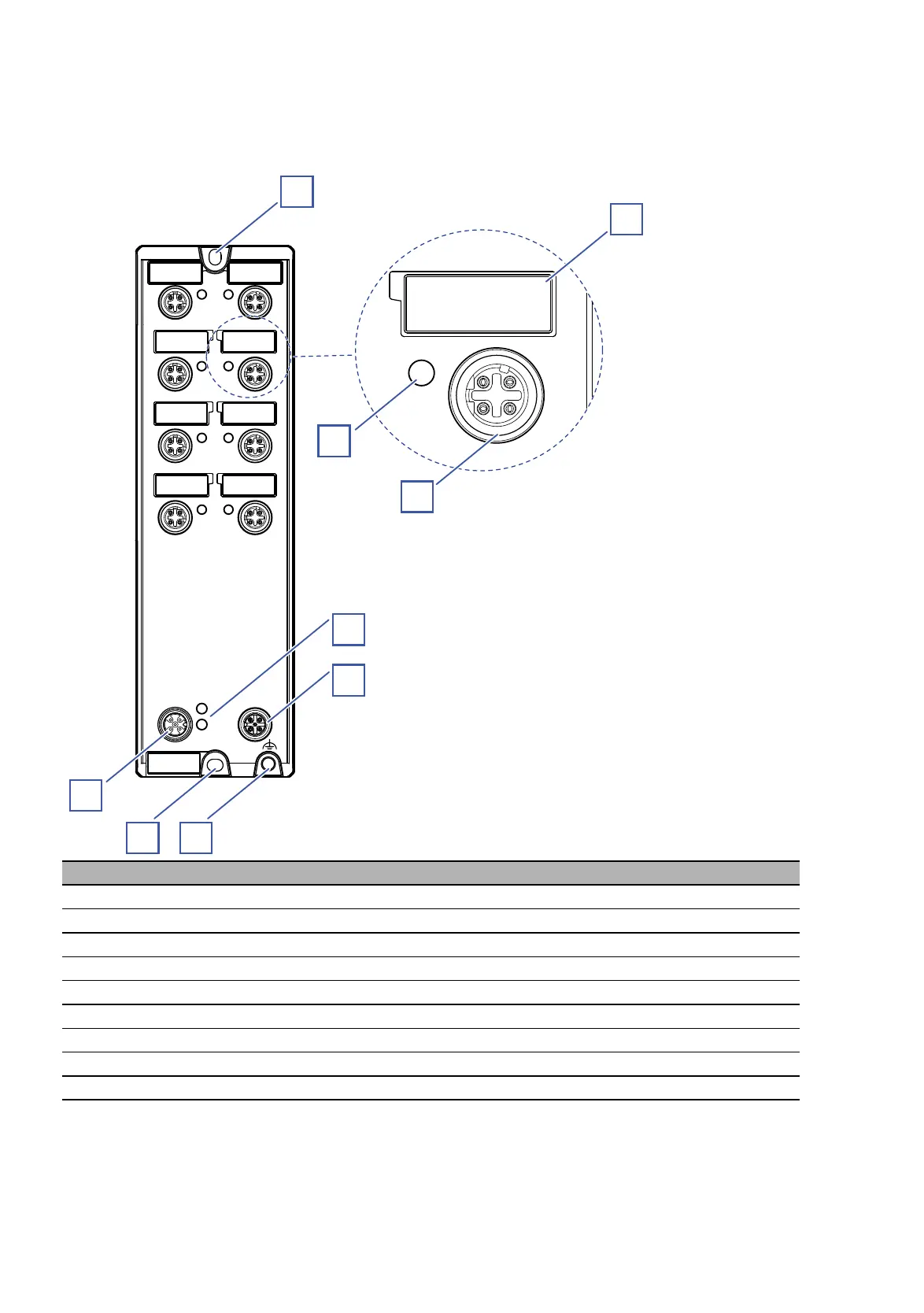

1.2 Device view
1.2.1 OCTOPUS 8TX-EEC
Item Characteristic
1 Slot hole for mounting on a flat surface
2 8 × Indicator plate
3 8 × 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections
4 8 × LED display elements for port status
5 LED display element for device status
6 M12 interface for the connection of ACA21-M12 (EEC) and ACA22-M12 (EEC)
7 Ground connection
8 Slot hole for mounting on a flat surface
9 Supply voltage connection
1
2
4
5
6
7
8
9
3
1
5
2
3
4
6
7
8
ACAPOWER
