Installation OCTOPUS 8TX-EEC
Release
07
01/2021
19
This port supports:
Autonegotiation
Autopolarity
Autocrossing
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Power over Ethernet (PoE/PoE+)
Devices are supplied with PoE voltage (54 V DC SELV) using the internal
power supply. PoE voltage via twisted pair cables is supplied using the wire
pairs transmitting the signal (phantom supply).
Delivery state: Autonegotiation activated
The screw threads of the M12 ports are electrically connected to the device
casing.
The PoE voltage is uncoupled from the power supply.
The maximum PoE output of the device is 35 W.

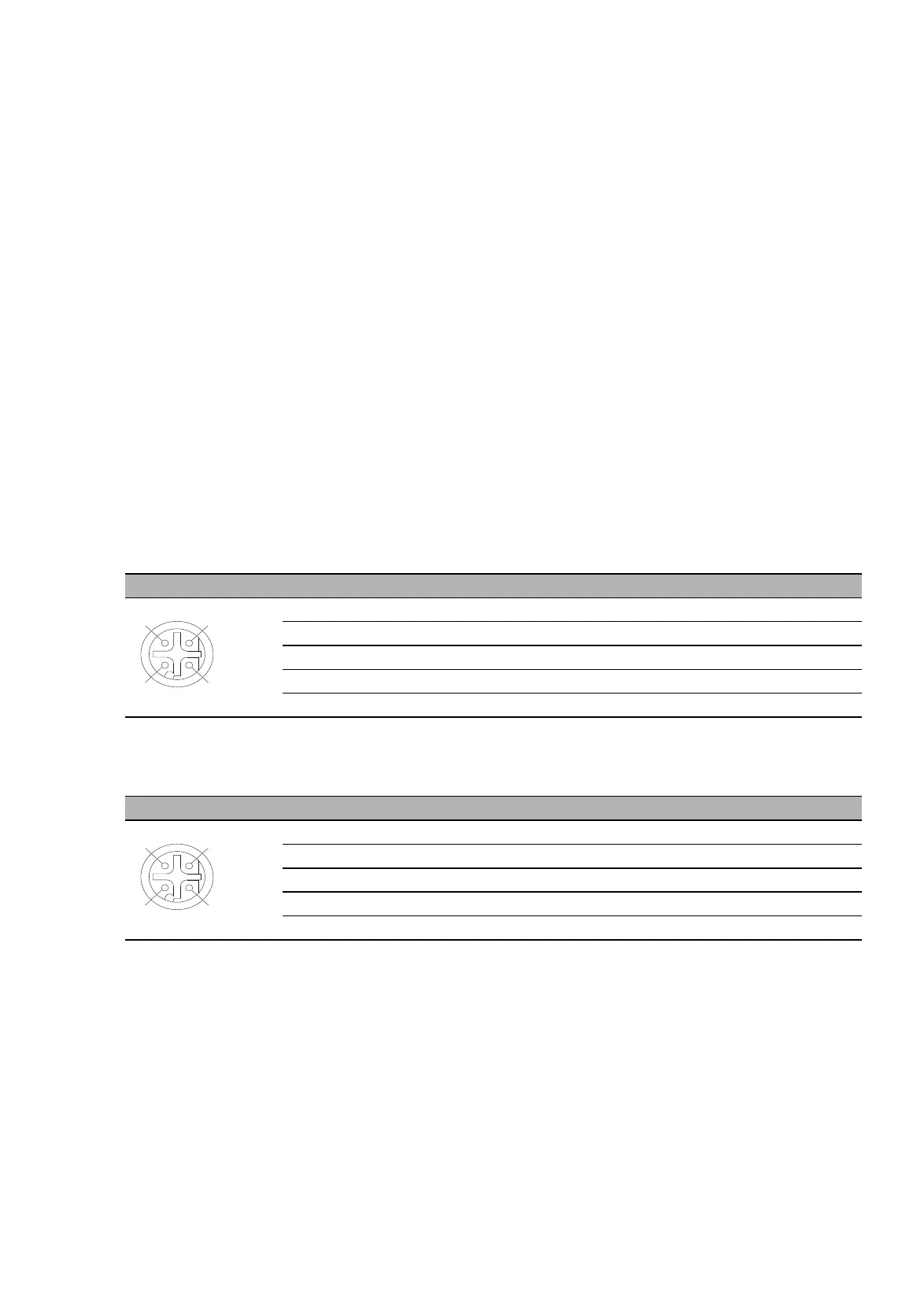

1.4.3 Pin assignment OCTOPUS 8TX-EEC and OCTOPUS
8TX-EEC-M
1.4.4 Pin assignment OCTOPUS 8TX PoE-EEC
Figure Pin Function
1 TD+ Transmit Data+
2 RD+ Receive Data+
3 TD- Transmit Data-
4 RD- Receive Data-
Housing: shield
Figure Pin Function PoE voltage input
1 TD+ Transmit Data + V+
2 RD+ Receive Data + V-
3 TD- Transmit Data- V+
4 RD- Receive Data- V-
Casing: shield
1
23
4
1
23
4
