1.5.2 Port Status
These LEDs provide port-related information.

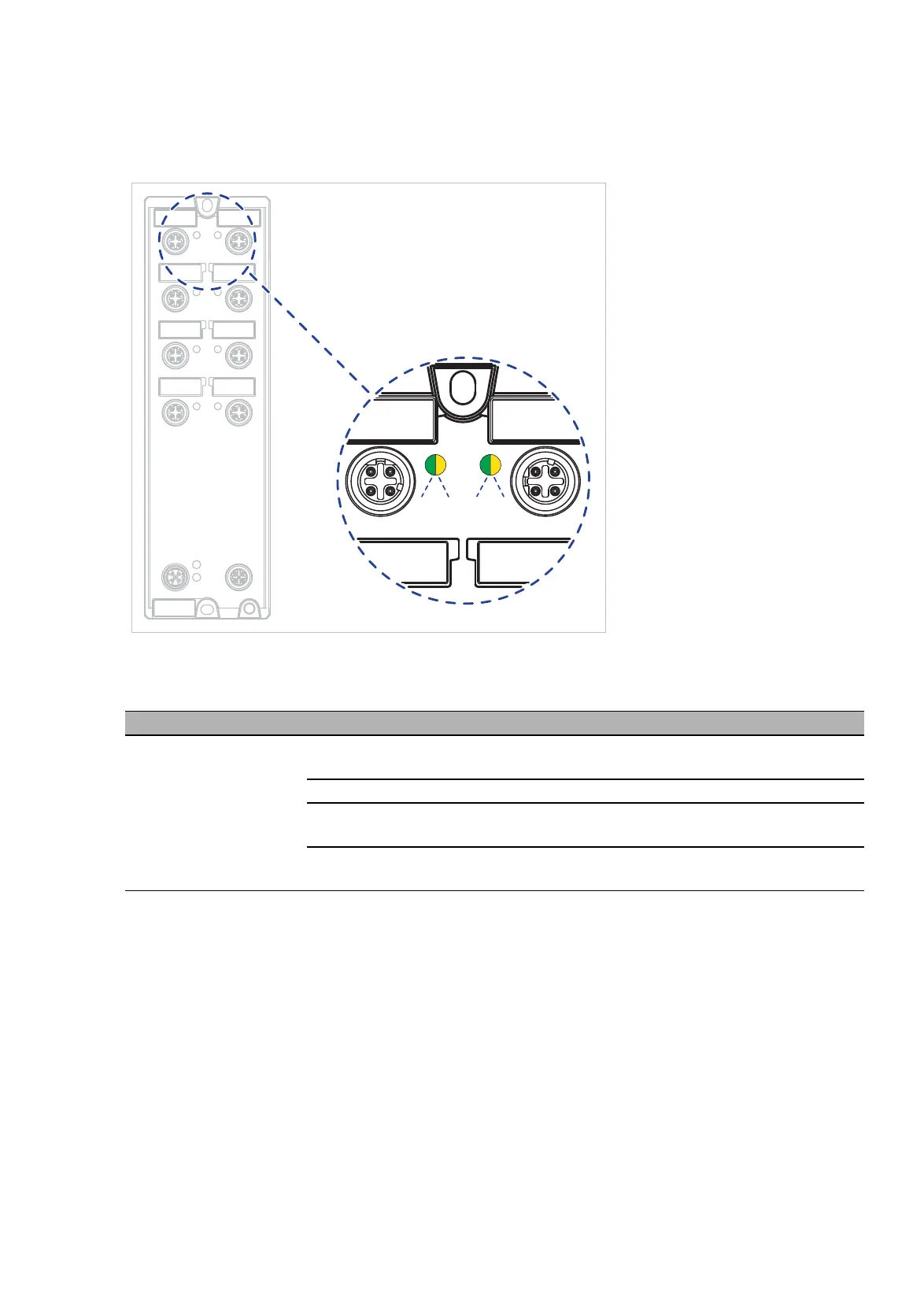

Figure 4: Display elements port status OCTOPUS 8TX-EEC
LED Display Color Activity Meaning
L/D Link state/
data traffic
— none Device detects an invalid or
missing link
green lights up Device detects a valid link
yellow flashing Device is transmitting and/or
receiving data
green/
yellow
flashing alternately Update of the configuration via the
M12 interface
DL DL
