Belden Hirschmann OCTOPUS 8TX PoE-EEC - Display Elements; Device State

20
Installation OCTOPUS 8TX-EEC
Release 07 01/2021
1.5 Display elements
After the supply voltage is set up, the software starts and initializes itself.
During this process, various LEDs light up.
1.5.1 Device state
These LEDs provide information about conditions which affect the operation
of the whole device.

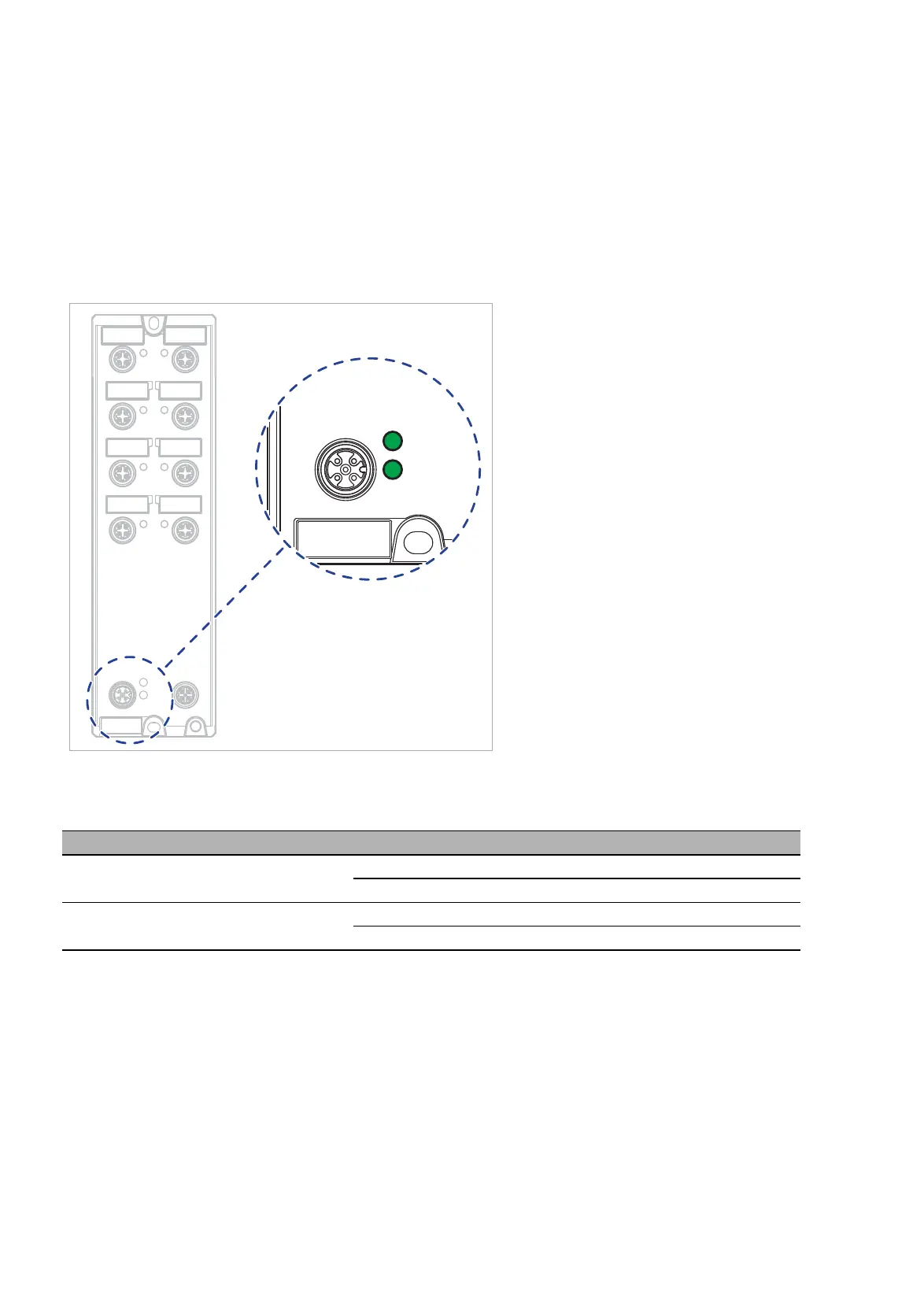

Figure 1: Display elements device status OCTOPUS 8TX-EEC
LED Display Color Activity Meaning
P1 Supply voltage 1 green lights up Supply voltage is on
none Supply voltage is too low
P2 Supply voltage 2 green lights up Supply voltage is on
none Supply voltage is too low
P1
P2
Power
