Installation OCTOPUS 8TX-EEC
Release 07 01/2021
21

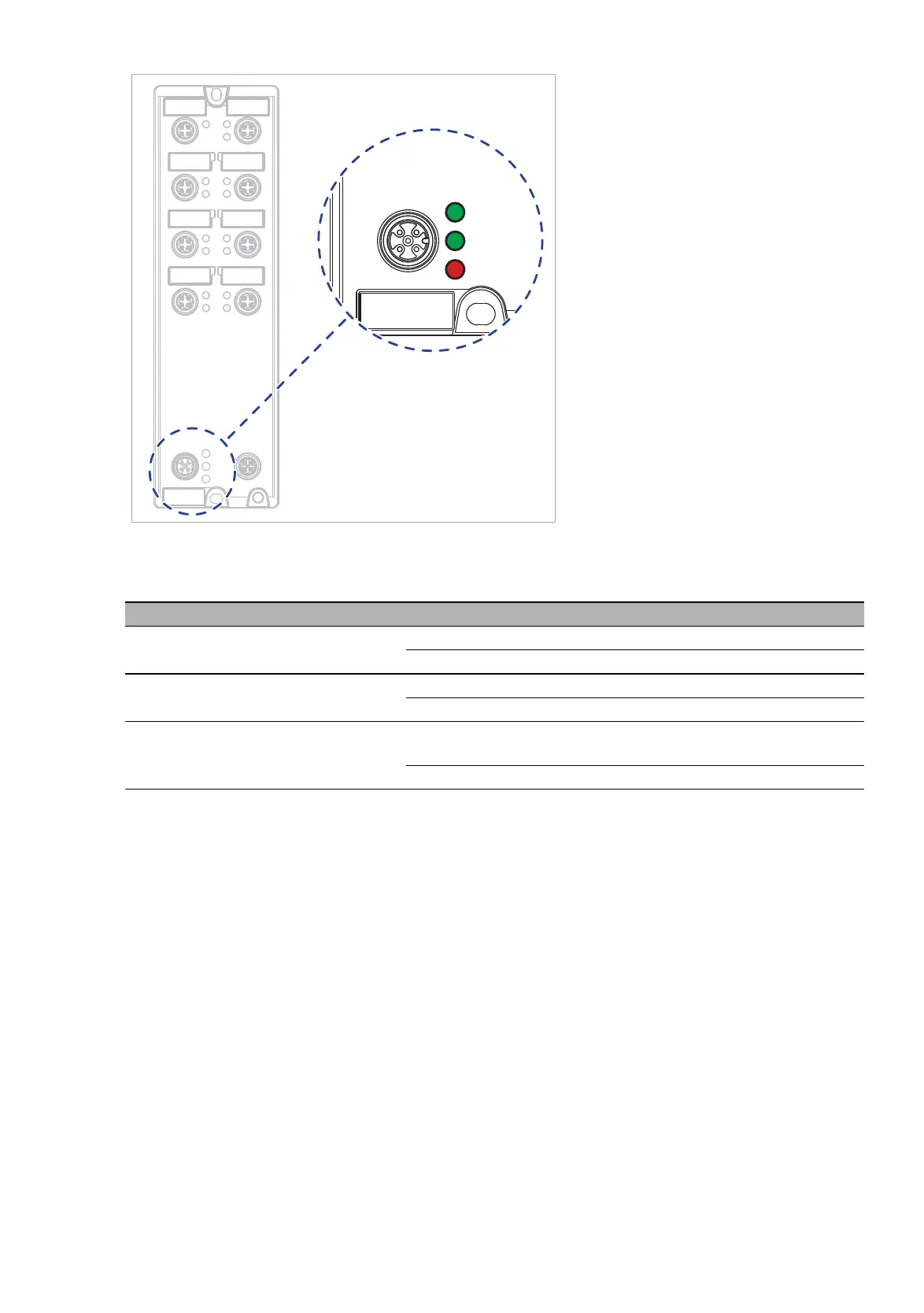

Figure 2: Display elements device status OCTOPUS 8TX PoE-EEC
LED Display Color Activity Meaning
P1 Supply voltage
1
green lights up Supply voltage is on
none Supply voltage is too low
P2 Supply voltage
2
green lights up Supply voltage is on
none Supply voltage is too low
FAULT PoE status red lights up The combined power output on the PoE ports
exceeds the maximum total power output.
none The total PoE output is sufficient.
P1
P2
Power
FAULT
