22
Installation OCTOPUS 8TX-EEC
Release
07
01/2021

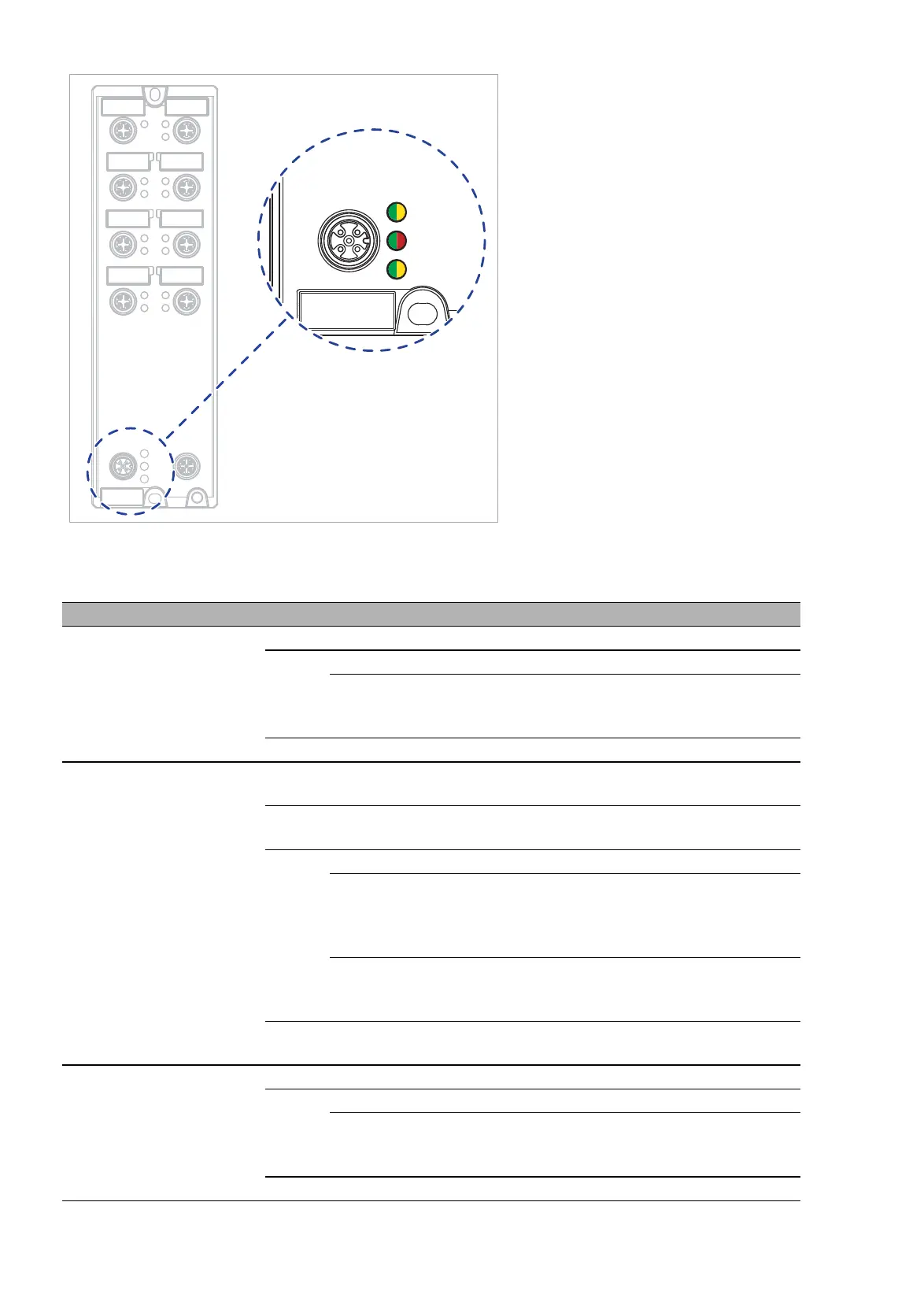

Figure 3: Display elements device status OCTOPUS 8TX-EEC-M
LED Display Color Activity Meaning
Power Supply voltage — none Supply voltages 1 and 2 are too low.
yellow lights up Supply voltage 1 or 2 is on
flashes 4
times a
period
Software update is running. Maintain the
power supply.
green lights up Supply voltage 1 and 2 is on
Status Device Status — none Device starts
Device is not ready for operation
green lights up Device is ready for operation.
Characteristics can be configured
red lights up Device is not ready for operation
flashes 1
time a period
The boot parameters used when the device
has been started differ from the boot
parameters saved.
Start the device again.
flashes 4
times a
period
Device has detected a multiple IP address
red/
green
flashing
alternately
Device is in the recovery mode.
ACA Storage medium
ACA22-M12-C
(EEC)
— none No ACA connected
green lights up ACA is plugged
flashes 3
times a
period
Device writes to/reads from the storage
medium
yellow lights up ACA is not ready for operation
