Belden Hirschmann OCTOPUS 8TX PoE-EEC - Pin Assignment OCTOPUS 8 TX Poe-EEC; Pin Assignment OCTOPUS 8 TX-EEC-M; Operating the Device

Installation OCTOPUS 8TX-EEC
Release 07 01/2021
33

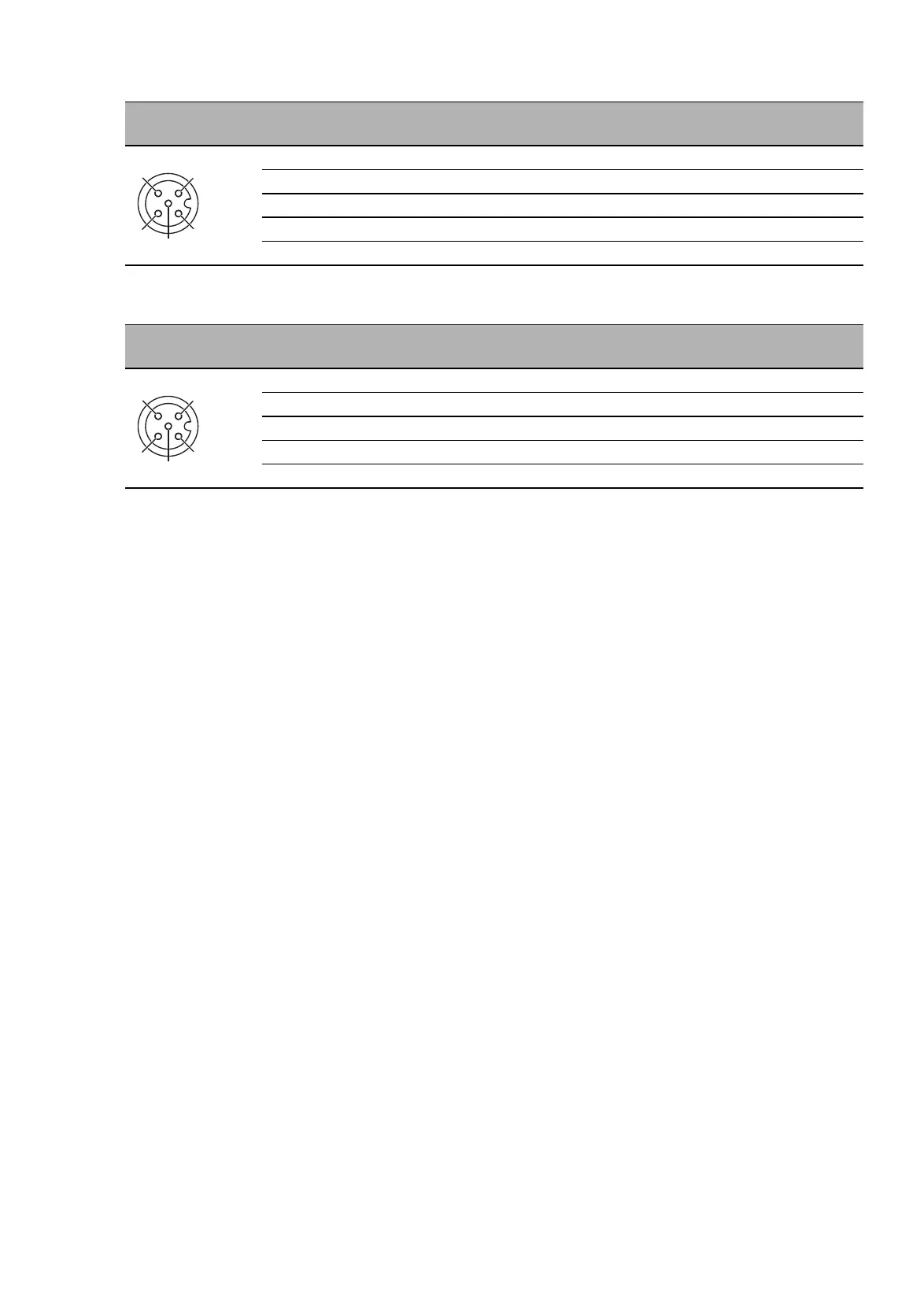

2.3.3 Pin assignment OCTOPUS 8TX PoE-EEC
2.3.4 Pin assignment OCTOPUS 8TX-EEC-M
2.4 Operating the device
When you connect the supply voltage, you start up the device.
M12 5-pin (“A”-
coded)
Pin Function
1 Power supply (1): +24 V DC (1)
2 Not used
30V
4 Power supply (2): +24 V DC (2)
5 Not used
M12 5-pin (“A”-
coded)
Pin Function
1 Power supply (1): + 24/36 V DC (1)
2 Signal contact
30V
4 Power supply (2): + 24/36 V DC (2)
5 Signal contact
2
1
4
3
5
2
1
4
3
5
