Installation OCTOPUS 8TX-EEC
Release 07 01/2021
1.6 Management interfaces
1.6.1 ACA-M12 interface
This applies to the following device variants only:
 OCTOPUS 8TX-EEC
 OCTOPUS 8TX PoE-EEC
This interface is a 5-pin, “A”-coded M12 socket with shielding.
This interface allows you to connect the ACA21-M12 (EEC) or ACA22-
M12 (EEC) storage medium.

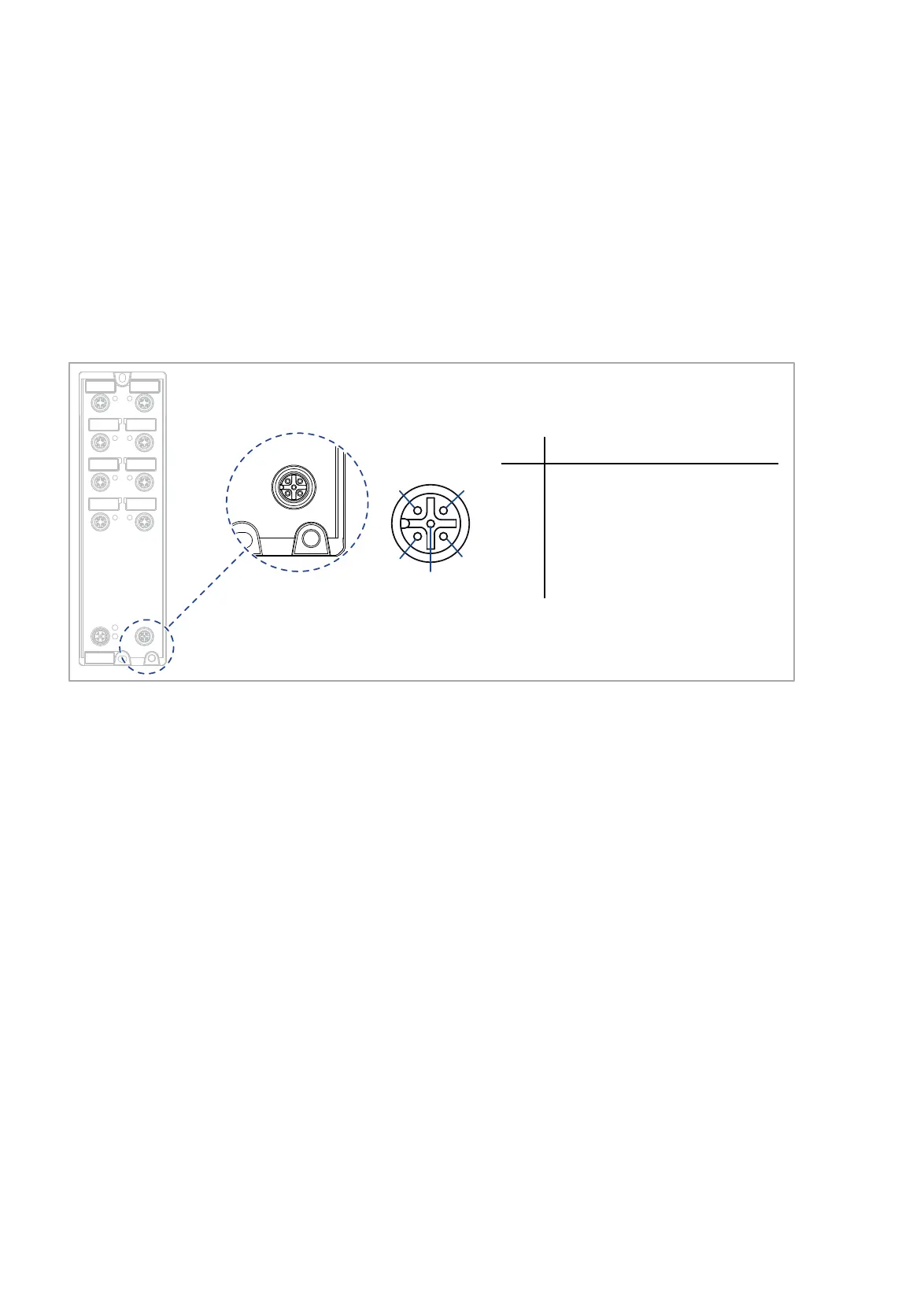

Figure 7: ACA-M12 interface
Note: This interface is for temporary connection only.
1.6.2 ACA22-C interface
This applies to the following device variants only:
 OCTOPUS 8TX-EEC-M
This interface is a 5-pin, “A”-coded M12 socket with shielding. This interface
is NOT electrically isolated from the power supply input.
Pin
1
2
3
4
5
Function
U
in
5 V
N. C. Not used
D- Data -
GND Ground (0 V)
D+ Data +
1
2
3
4
5
ACA
