30

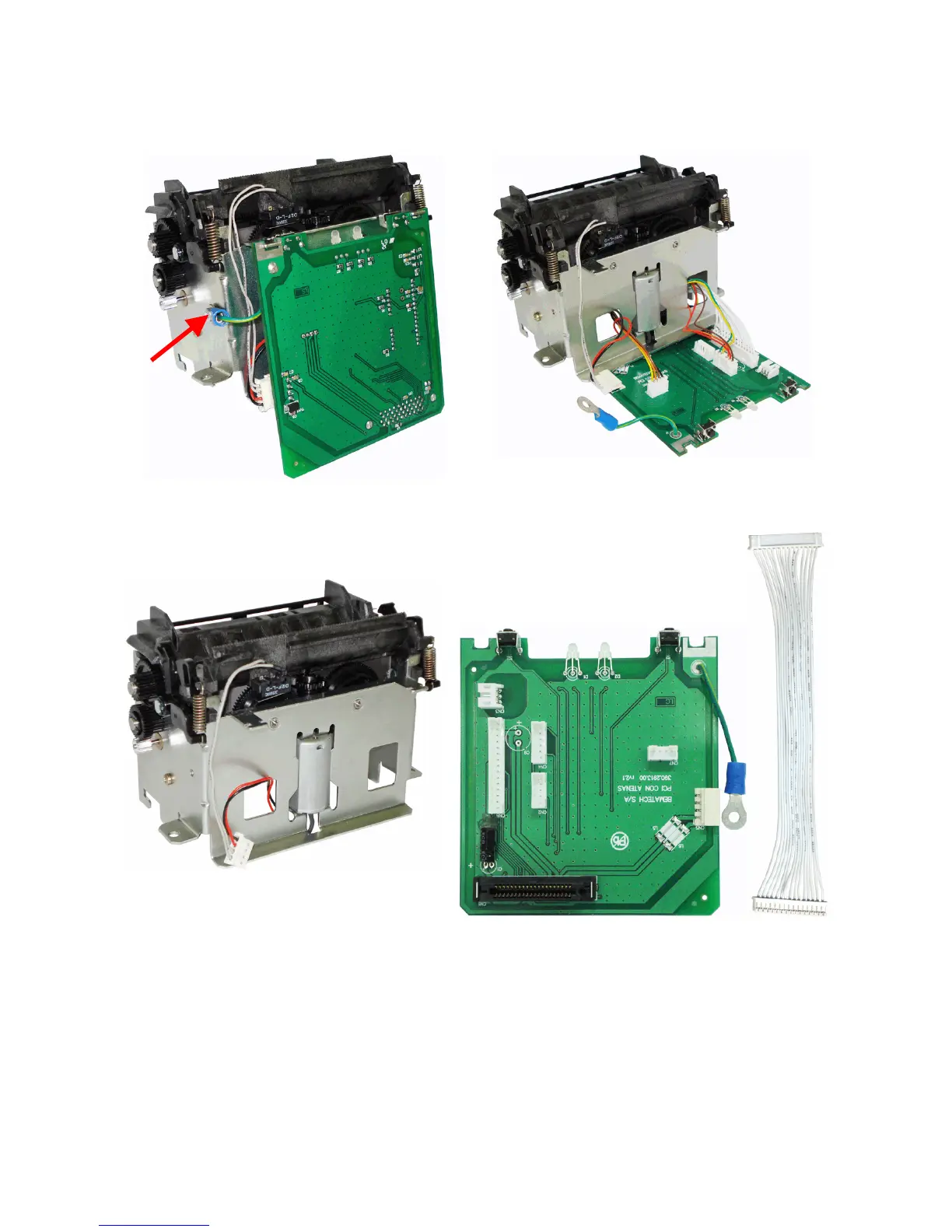

To separate the connection board from the cutter mechanism, start by loosening the screw
that holds the grounding cable located on the side of the equipment, then move away the
connection board and disconnect the cables.
Below you can see the cutter mechanism, the print head and the connection board with the
thermal print head connection cable.
