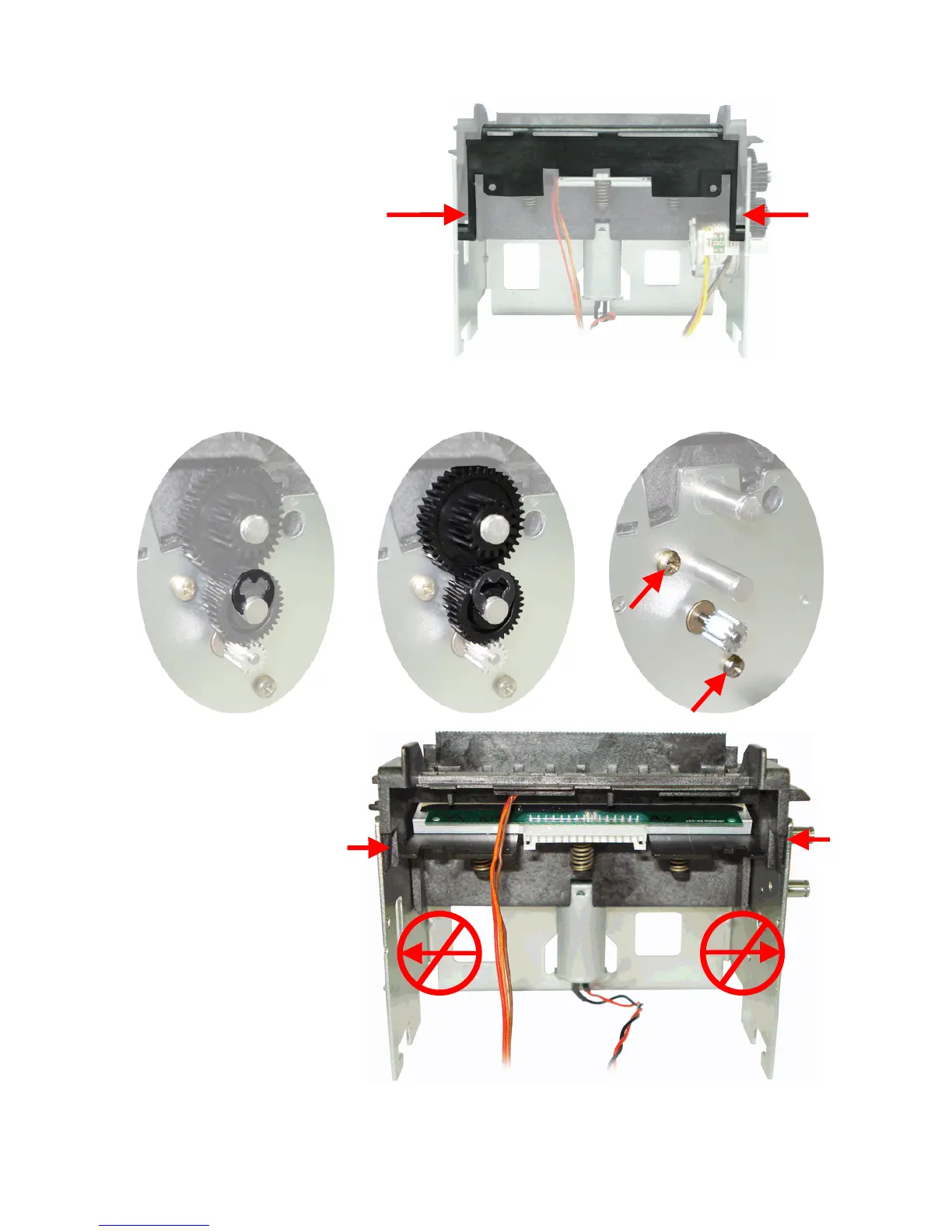

To remove the paper guide, just
press it by its base, disconnecting
it from the metal chassis (as
shown on the picture on the
right).
To remove the paper feed motor remove the elastic ring that secures the gears, then pull the
gears out. To remove the motor just loosen the two screws that hold it to the metal chassis.
To separate the plastic
chassis from the metal
chassis just press the plastic
chassis locks towards the
inside.
Do not push out the sides of
the metal chassis – this will
deform the chassis and may
cause malfunction to the
cutter and the printing
mechanism.
