Bend-Tech Dragon A400 - Horizontal Gate Rollers

18 Bend-Tech Dragon A400
Powered Gate Retrot Guide
Installation Guide
02

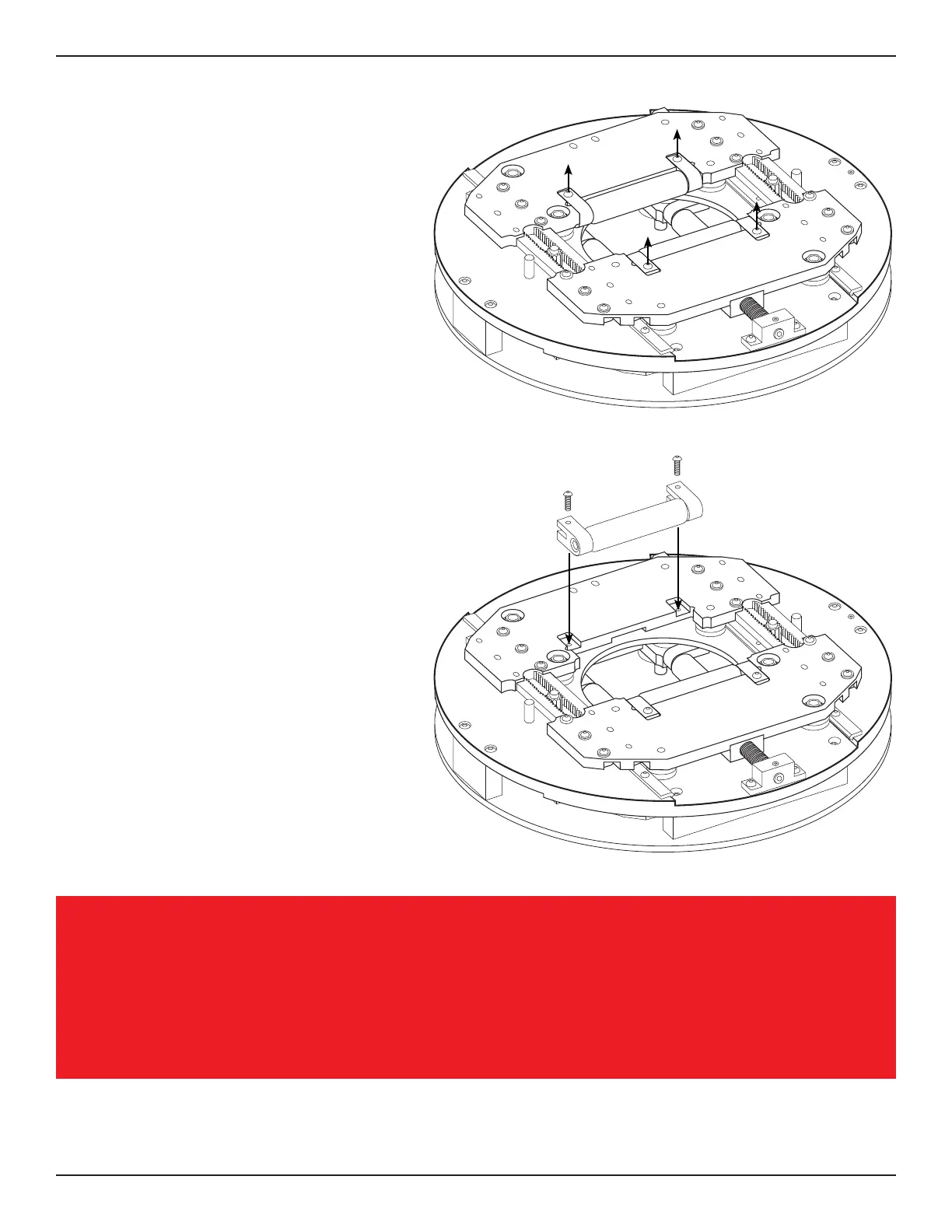

1. Horizontal Gate Rollers
Using a ¼ in. Allen wrench on the
3 o’clock Gate Lead Screw, open
the horizontal Gate wide enough to
allow enough room to remove the
Gate Rollers, about 3-4 in.

the four screws that attach the Gate
Rollers to the Gate.
Remove the pillow block and
needle bearing assemblies from
the old roller and install on the new
stainless steel rollers.
Position the pillow blocks so
the thicker side is seated on the

Allen wrench, tighten the Allen head
screws hand tight.
Note

Installer close the Gate using the Horizontal Gate Lead Screw. This aids in
handling of the Gate during the installation process.
