19Bend-Tech Dragon A400
Powered Gate Retrot Guide
Installation Guide
02

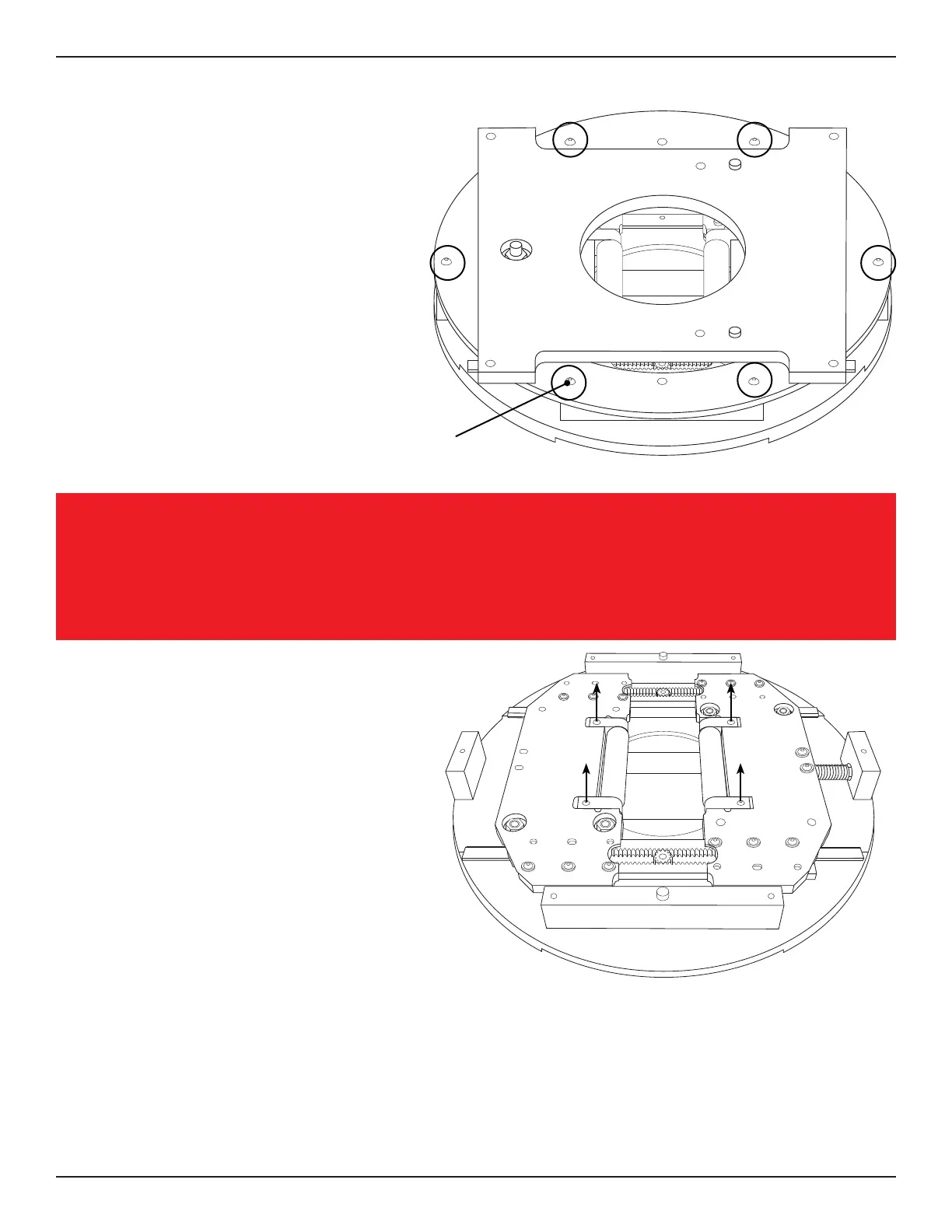

2. Gate Mount Removal
Turn the Gate over so the Gate
assembly is face down on the work
begin removing the six Allen head
screws that fasten the Gate Bearing
Rotation Plate to the Gate assembly.
With the six Gate Bearing Rotating
Plate screws removed, lift the Gate
Bearing Rotation Plate and Gate
assembly and set aside.
Note
The Installer will need to rotate the Gate Bearing Mount Plate to access all six
mounting screws.
3. Vertical Gate Rollers
Using a ¼ in. Allen wrench on the 12
o’clock Gate Lead Screw, open the
vertical Gate wide enough to allow
enough room to remove the Gate
Rollers, about 3-4 in.
the four screws that attach the Gate
Rollers to the Gate. Remove the
pillow block and needle bearing
assemblies from the old roller and
install on the new stainless steel
rollers. Position the pillow blocks
so the thicker side is seated on the
Remove all 6 screws
