Bender A-ISOMETER IRDH375 - Connection with Coupling Devices

24

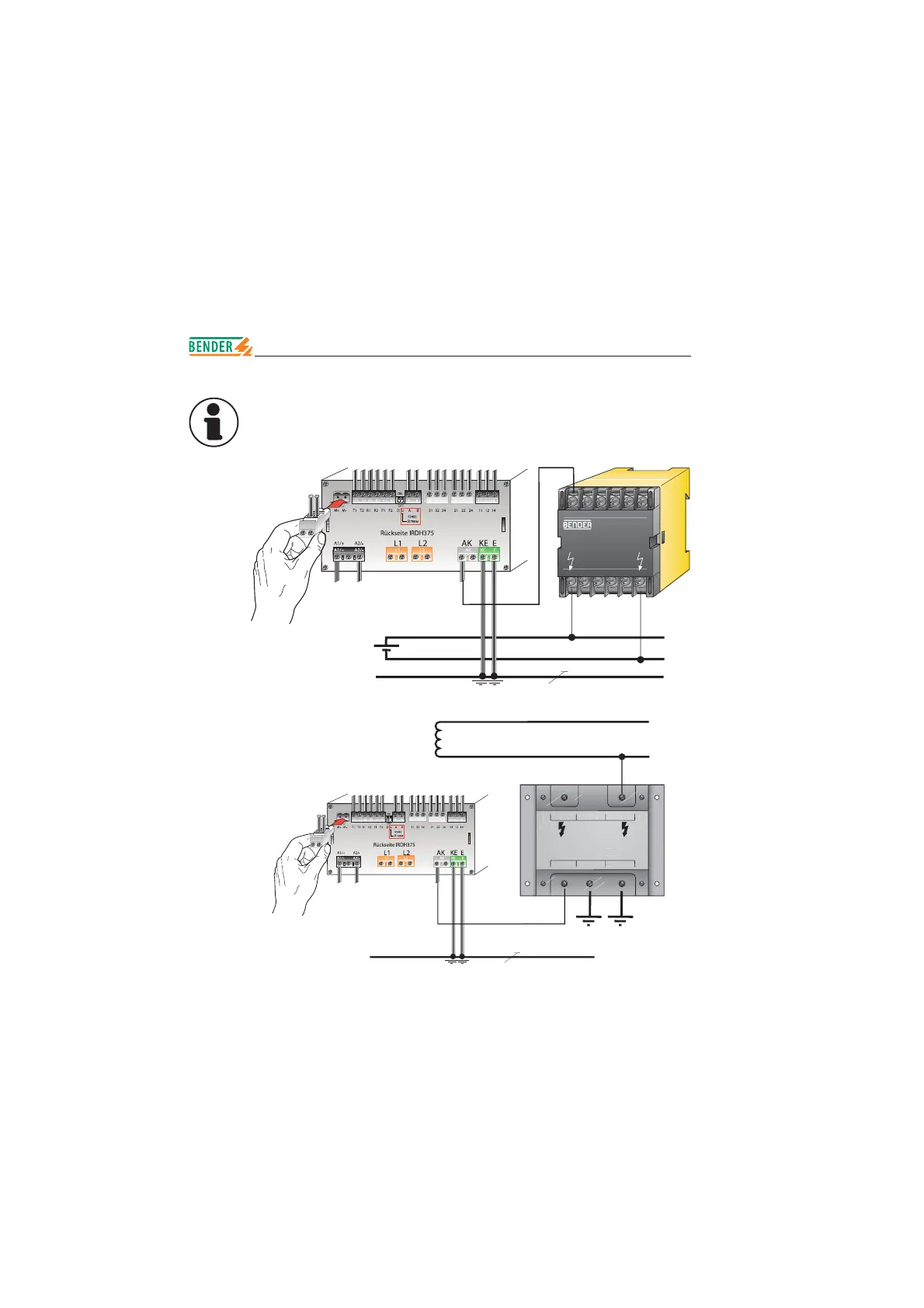

Wiring diagram with coupling devices
Please observe the settings in the „ISO ADVANCED AGH“ menu !
Connection
L+
L-
PE
Un DC 0...1760 V
Achtung Hochspannung
Danger High Voltage
Ankopplungsgerät
Typ AGH150W-4
AK160
+-
2
534
Achtung Hochspannung
Danger High Voltage
Ankopplungsgerät
Typ AGH520S
L2
L1
Un AC 0...7200 V
PE
Connection with
AGH150W-4
for DC systems
up to 1760 V
Connection with AGH520S
for pure AC systems
up to 7200 V
