34

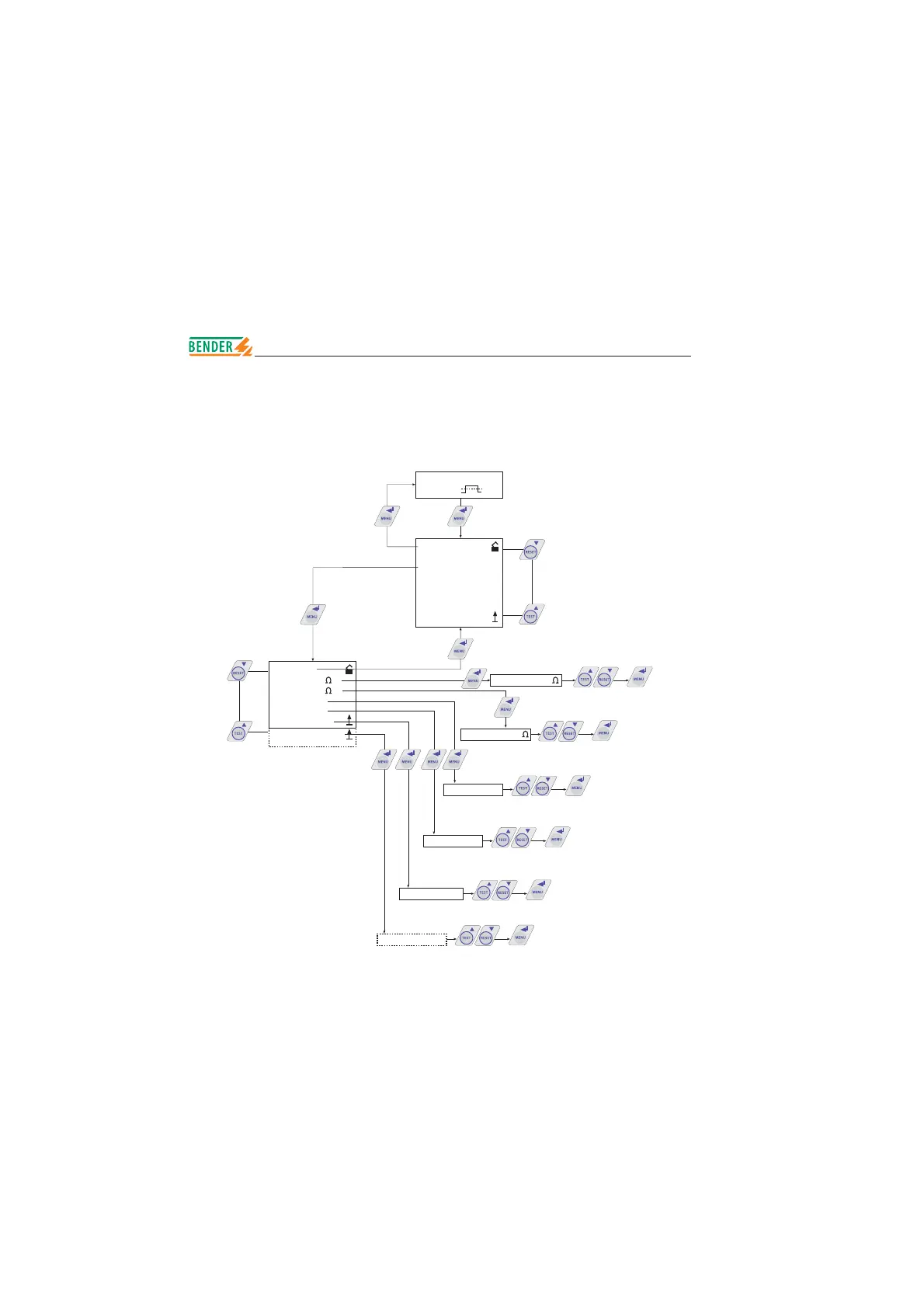

Setting of the basic functions in the ISO SETUP
All alarm functions such as Alarm1 and Alarm2 (prewarning and main alarm)
as well as the operating principle of the output relays K1 and K2 (NO = N/O
operation, NC = N/C operation) are set in this menu. IRDH375B: current output
with optionally two ranges of values.
Operation and setting
*** IT-SYSTEM ***
R >010 M
1. EXIT
2. HISTORY INFO
3. ISO SETUP
4. ISO ADVANCED
5. COM SETUP
6. PASSWORD
7. LANGUAGE
8. SERVICE
1. Exit
2. AL1: 100 K
3. AL2: 200 K
4. K1 : NO
5. K2 : NO
6. Memory: on
7. M+/M-: 0-20 mA
Alarm1 : 100 K
Alarm2 : 200 K
K1: NO
K2: NO
Memory: on
M+/M-: 0-20 mA
K1: NO
K1: Flash
K1: NC
K2: NO
K2: Flash
K2: NC
Memory: on
Memory: off
M+/M-: 0-20 mA
M+/M-: 4-20 mA
