iso685-D-P_D00170_00_M_XXDE/06.2016
19
Mounting
5. Mounting
5.1 General instructions
Only qualified personnel are permitted to carry out the work necessary
to install, commission and run a device or system.
Risk of electrocution due to electric shock!
Touching live parts of the system carries the risk of:
• An electric shock
• Damage to the electrical installation
• Destruction of the device
Before installing and connecting the device, make sure that the in-
stallation has been de-energised. Observe the rules for working on elec-
trical installations.

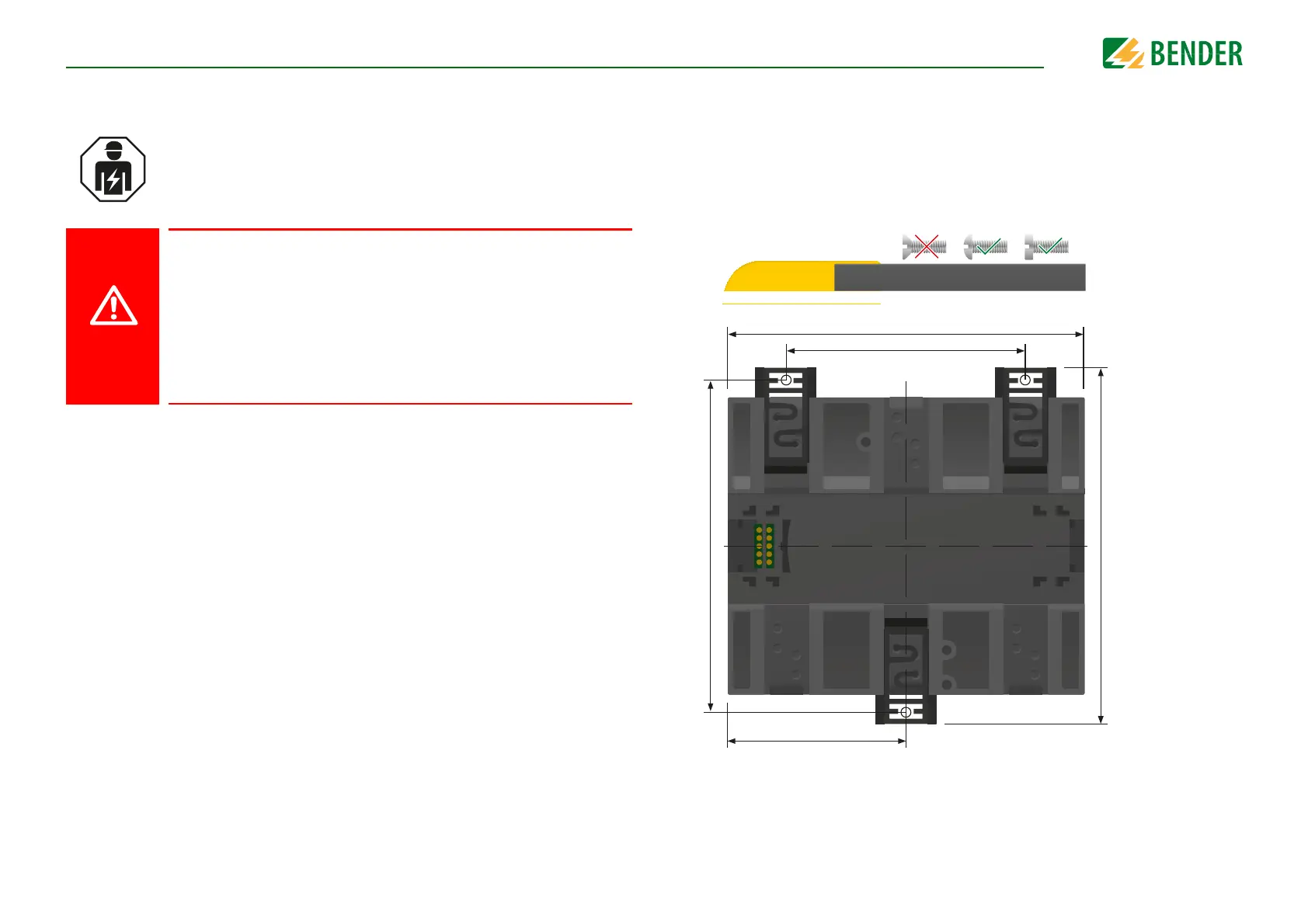

5.2 Screw mounting
19. Fix the three mounting clips delivered with the device (two of them packed sepa-
rately) manually or using a tool, as illustrated below.
20. Drill the mounting holes for the M4 thread according to the dimensioned drilling
template.
21. Fix the ISOMETER® using three M4 screws.
72 mm
108 mm
54 mm
100 mm
107,3 mm
