ENGINE OIL LEVEL INSPECTION
1. Stand the scooter on a level surface.
NOTE:
Make sure the scooter is upright when inspect-
ing the oil level.
2. Start the engine and let it warm up for a few
minutes.
3. Turn off the engine.
4.
•
Inspect:
Engine oil level
④
Oil level should be between maximum
2
①
and minimum
3
marks.
②
Oil level is below the minimum mark
③
→ Add oil up to the proper level.
①：dipstick
②：maximum mark
③：minimum mark
④：filter
5. Start the engine and let it warm up for a few
minutes.
6. Turn off the engine.
NOTE:
Wait a few minutes until the oil settles before in-
specting the oil level.

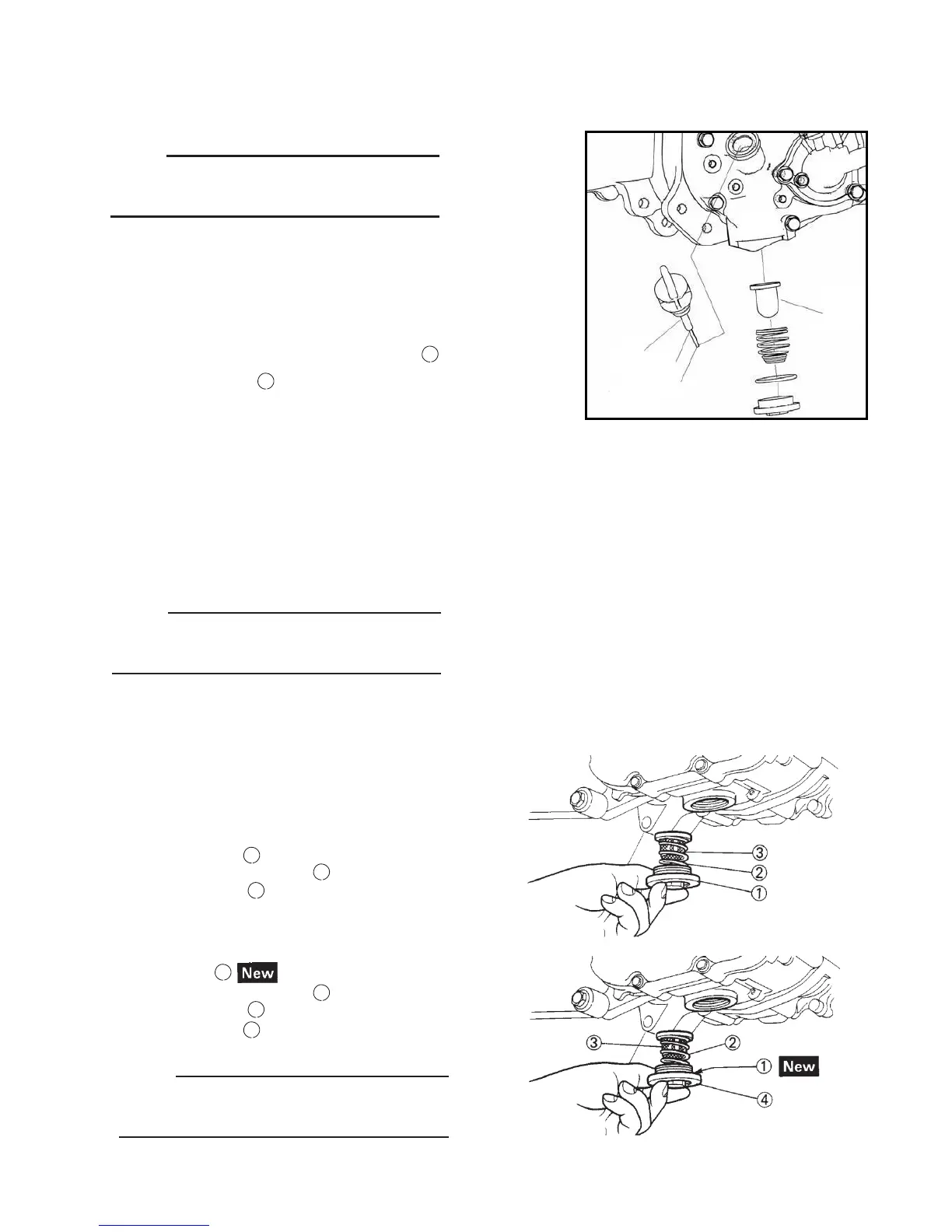

ENGINE OIL REPLACEMENT
1. Start the engine and let it warm up for sev-
eral minutes.
2. Turn off the engine and place an oil pan un-
der the engine.
3.
•
Remove:
•
Oil filler plug
•
Drain plug
1
•
Compression spring
2
•
Oil strainer
3
O-ring
Drain the crankcase of its oil.
4.
•
Install:
•
O-ring
1
•
Compression spring
2
•
Oil strainer
3
•
Drain plug
4
Oil filler plug
NOTE:
Check the O-ring (drain plug). If damaged, re-
place it with a new one.
