Introduction

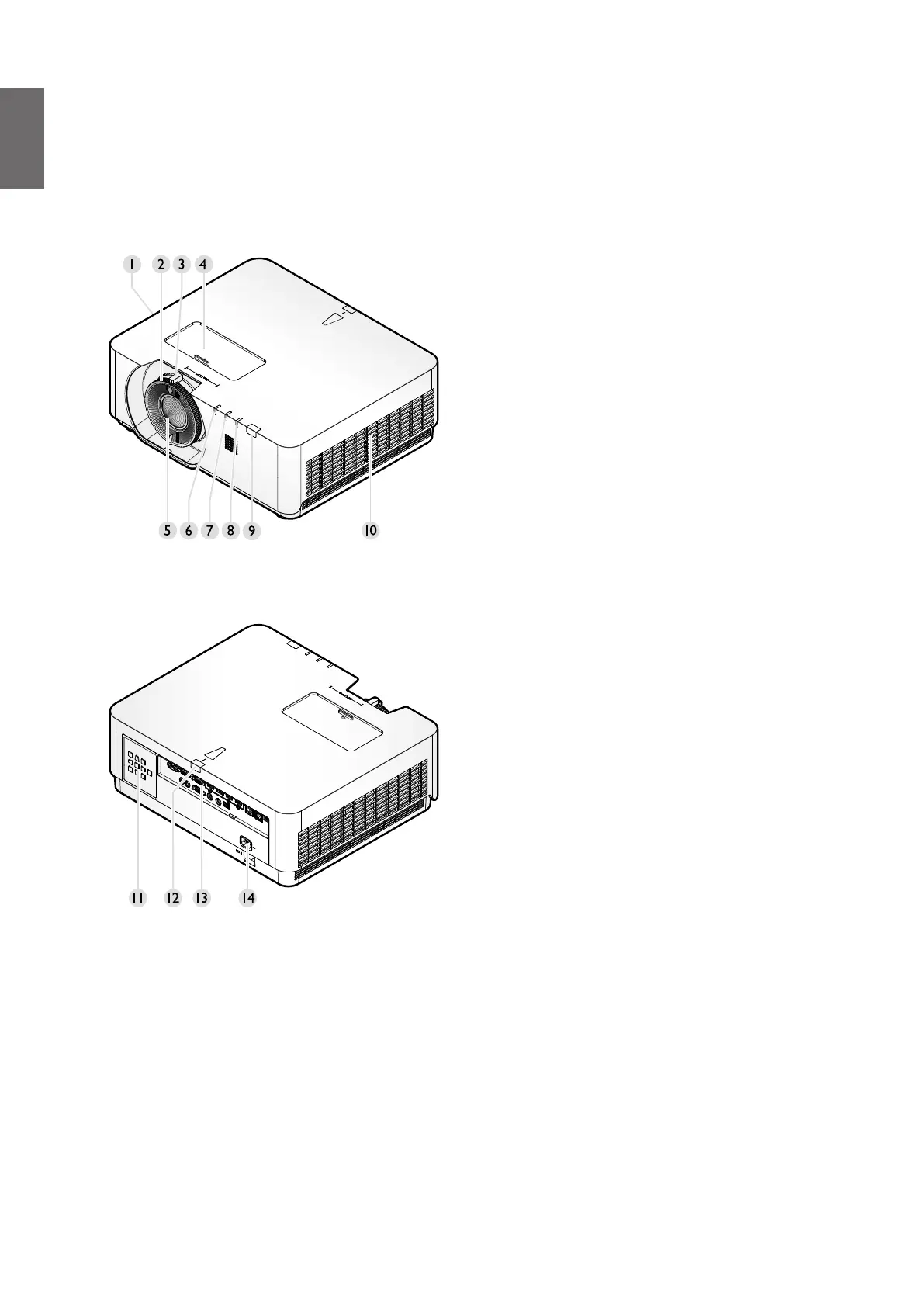

Projector exterior view
Front and upper side view
1. Side vent (air inlet)
2. Focus adjustment
3. Zoom
4. Len shift
5. Projection lens
6. LIGHT SOURCE indicator light
7. TEMPerature indicator light
8. POWER indicator light
9. Front IR remote sensor
10. Side vent (air outlet)
Rear view
11. Control panel
12. Rear IR remote sensor
13. Control terminals
14. AC power cord inlet
