English
16

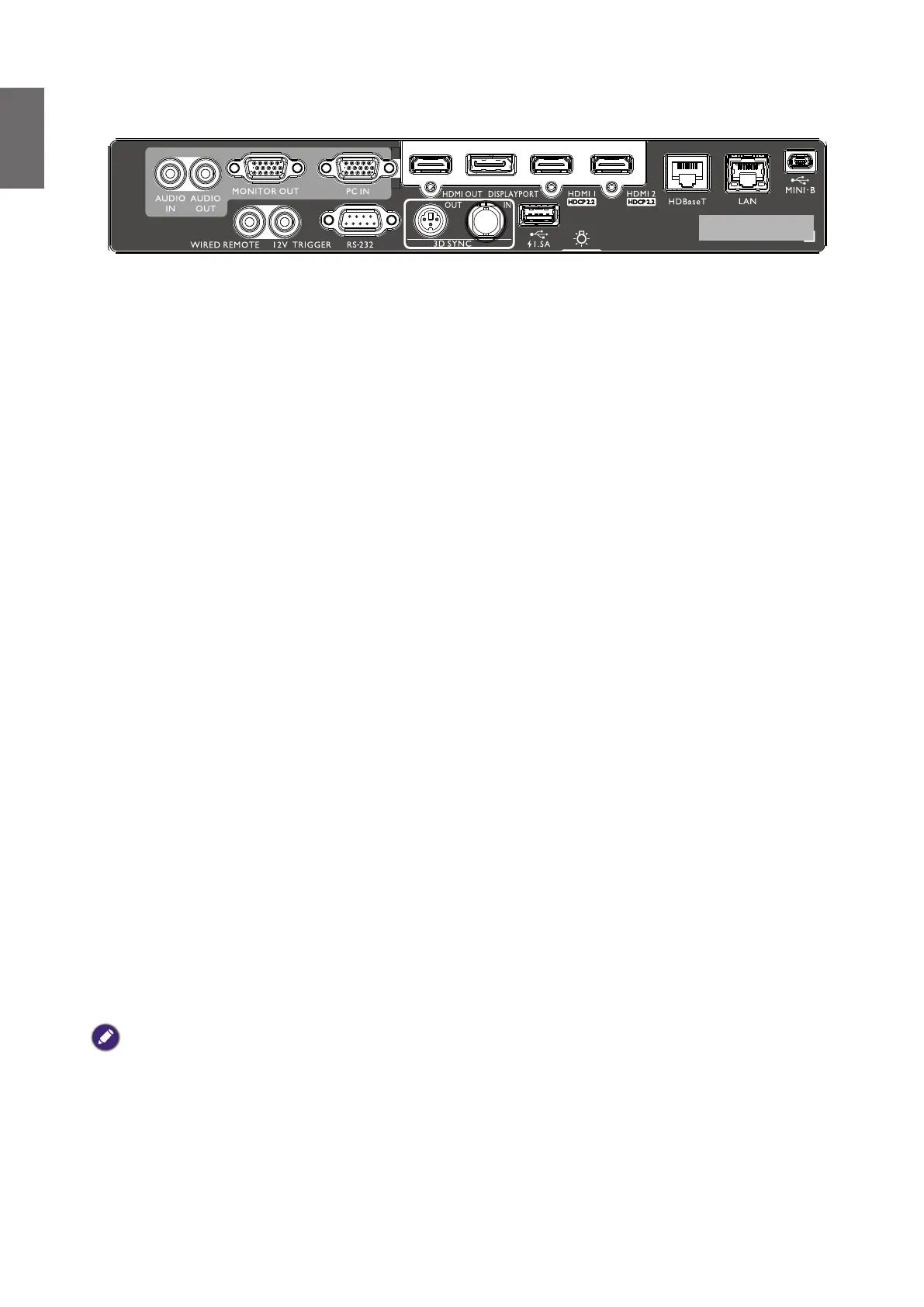

Control terminal
MINI-B
Support Mini USB type B for service only.
LAN
For connection to RJ45 Cat5/Cat6 Ethernet cable
to control the projector through a network.
HDBaseT
For connection to a HDBaseT transmitter via an
Ethernet cable (Cat5/Cat6) to input up to 4K 30Hz,
RS232 control signal and IR
control signal. The HDBaseT port supports RS-232/
IR/LAN Control, which can be selected in OSD
HDMI 2
Connection to HDMI source.
HDMI 1
Connection to HDMI source.
DISPLAYPORT
Connection to a Display Port source.
HDMI OUT
Connection to HDMI device.
PC IN
15-pin VGA port for connection to RGB,
component HD source, or PC.
MONITER OUT
Connection to other display equipment for
concurrent playback display.
AUDIO OUT
Connection to a speaker amplier or headset.
AUDIO IN
Connection to an audio input source via an audio
cable.
REAR LIGHT
Illumination for terminals.
USB 1.5A
Support 5V/1.5A output.
3D SYNC IN
Connect 3D-sync in cable from a computer or an
enabled device.
3D SYNC OUT
Connection to 3D IR sync signal transmitter.
RS-232 IN
Standard 9-pin D-sub interface for connection to PC
control system and projector maintenance.
12V TRIGGER
3.5mm mini earphone jack, employs 200mA display
relay to provide 12(+/-1.5)V output and short circuit
protection.
WIRED REMOTE
Connection to wire remote controller.
Caution:
Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case
of an invalid port, e.g. a wired remote controller is connected to trigger output. For more information about upgrading
rmware via Lan, please contact BenQ service.
