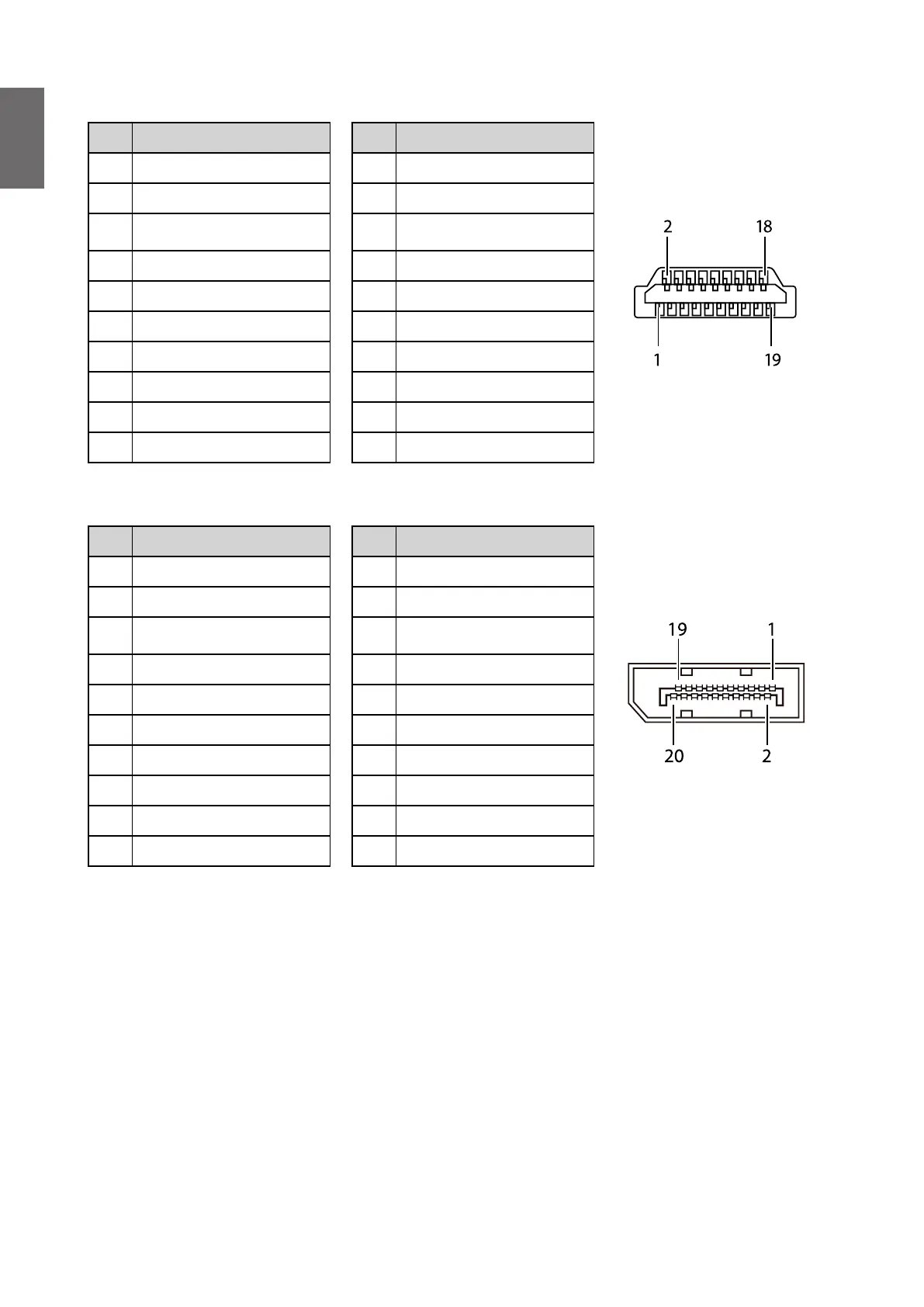

HDMI 1
No. Serial No. Serial
Even-numbered pins of 2 to 18
Odd-numbered pins of 1 to 19
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5 V Power (max 50 mA)
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Display Port
No. Serial No. Serial
1 ML_Lane 0 (p) 11 GND
2 GND 12 ML_Lane 3 (n)
3
ML_Lane 0 (n)
13
CONFIG1
4 ML_Lane 1 (p) 14 CONFIG2
5 GND 15 AUX CH (p)
6 ML_Lane 1 (n) 16 GND
7 ML_Lane 2 (p) 17 AUX CH (n)
8 GND 18 Hot plug
9 ML_Lane 2 (n) 19 Return
10 ML_Lane 3 (p) 20 DP_ PWR
Even-numbered pins of 2 to 20
Odd-numbered pins of 1 to 19
