3.1. Overview
3.1.1. Overview DC2004

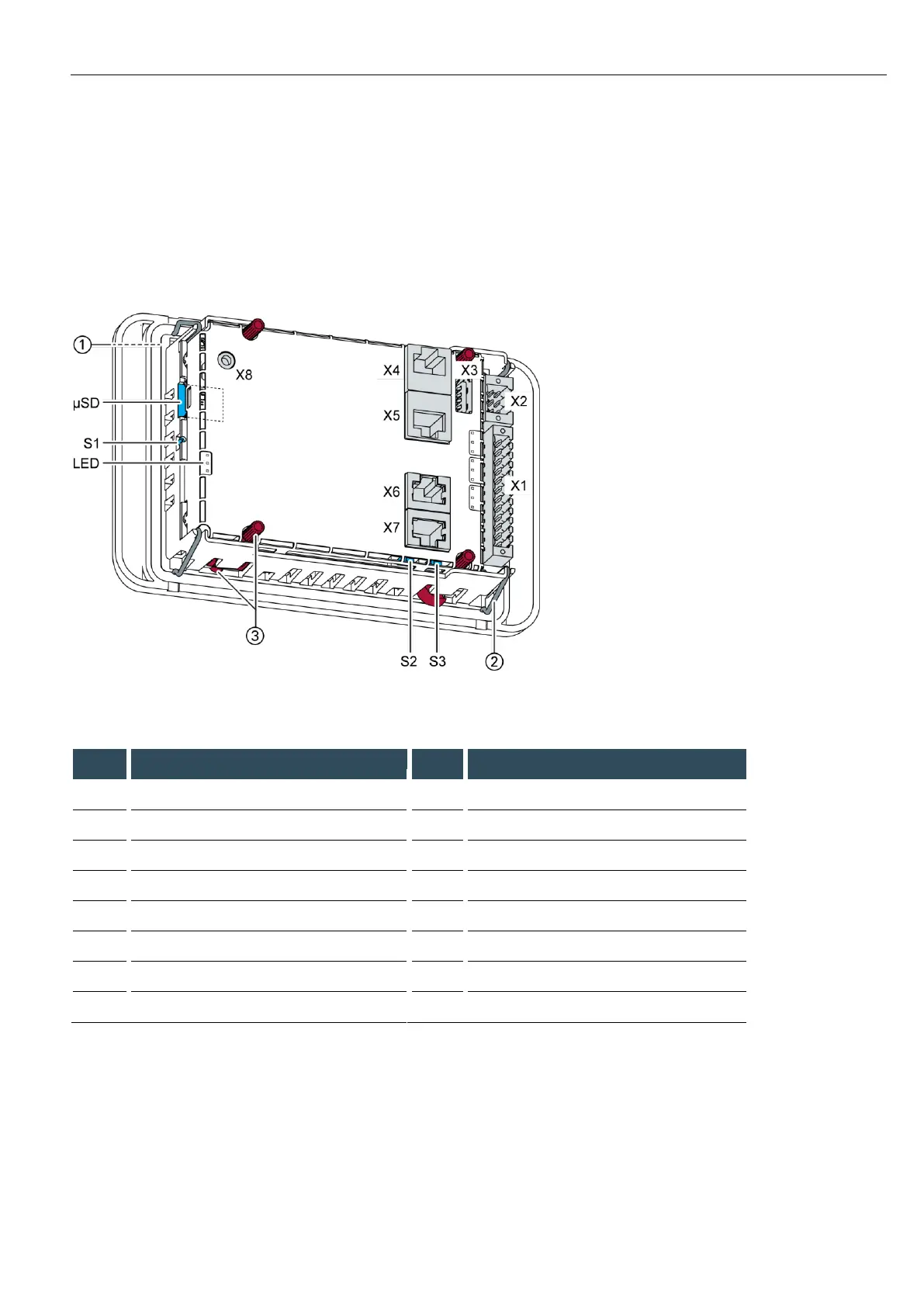

Fig. 1: Overview DC2004 (rear view)
Item
Designation
Item
Designation
1
Display 4.3 inch
X6
RS-232 / RS-485
2
Securing clip (qty 4)
X7
CAN bus
3
Twist-lock catch (qty 4)
1
X8
Debug interface
X1
Power supply , digital inputs / output
S1
Function key (Reset and Run/Stop)
X2
Analogue inputs
S2
Terminating resistor CAN (120 Ohm)
X3
USB 2.0
S3
Terminating resistor RS-485 (120 Ohm)
X4
Ethernet (ETH0)
µSD
microSD card connection (optional)
X5
EtherCAT (ETH1)
LED
LEDs: PWR, Run/Stop, Error
1
Required only for protection rating IP65
