6.2.3. ECC21XX Slim
The device must be connected to the network with the correct settings before it can be used.

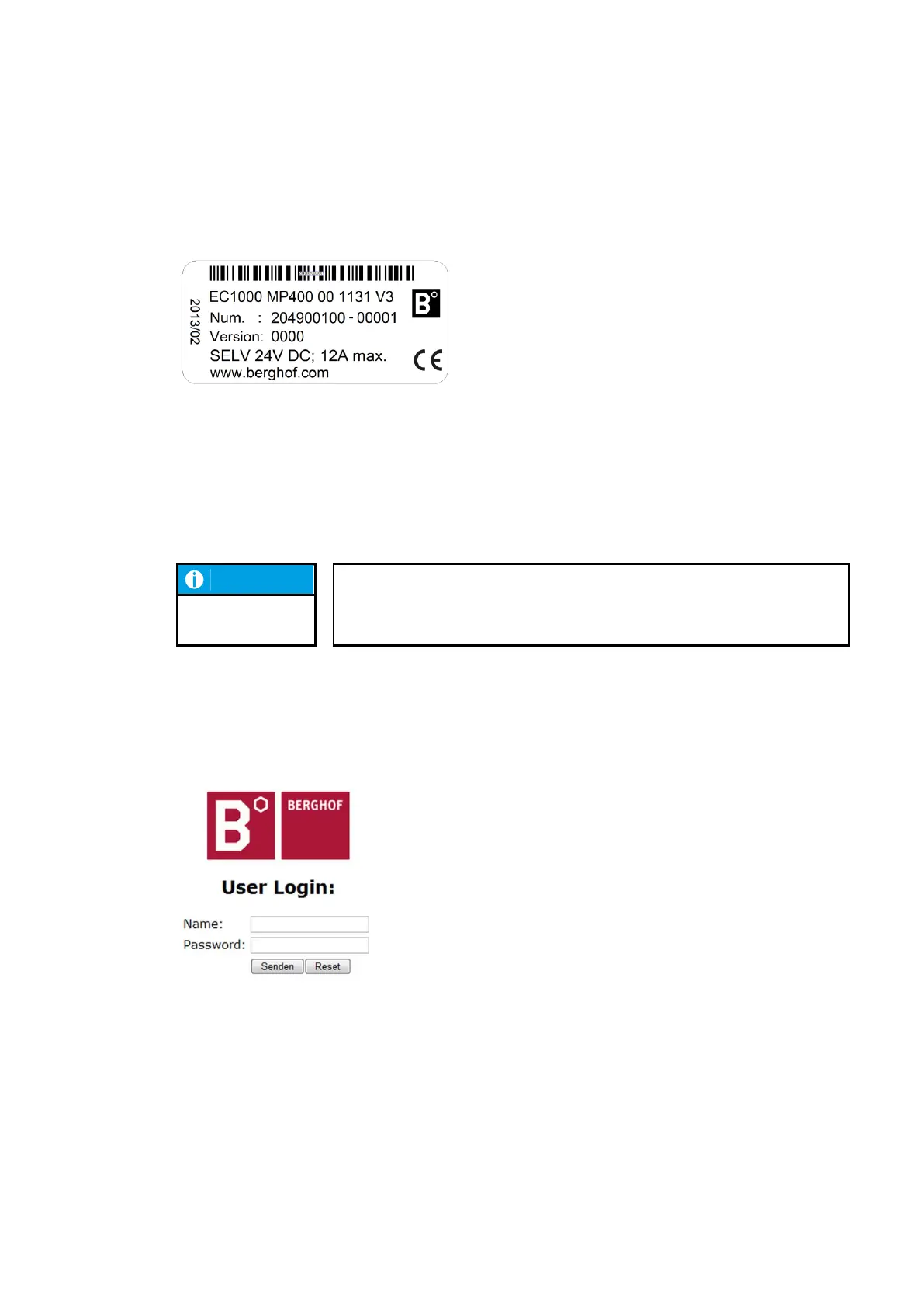

Fig. 42: identification plate with device serial number 00001 (example)
1st Note down the IP address and subnet mask:
IP address: 169.254.255.XX
XX corresponds to the last 2 digits of the device serial number. Exception: 00 becomes 100.
Subnet mask: 255.255.255.0
Damage to property
Before connecting the power supply, ensure that all cabling is correct,
including the polarity of all the connections.
2nd Supply the device with power (24 V).
3rd Connect the device to a programming computer using a network cable (X4) and network switch.
4th Open a web browser on the programming computer.
5th Enter the IP address of the device into the web browser.
The login screen will appear.
Fig. 43: login window
6th Use the following user name and password to log into the device:
Name: admin
Password: admin
