3.1.3. Overview ET2004

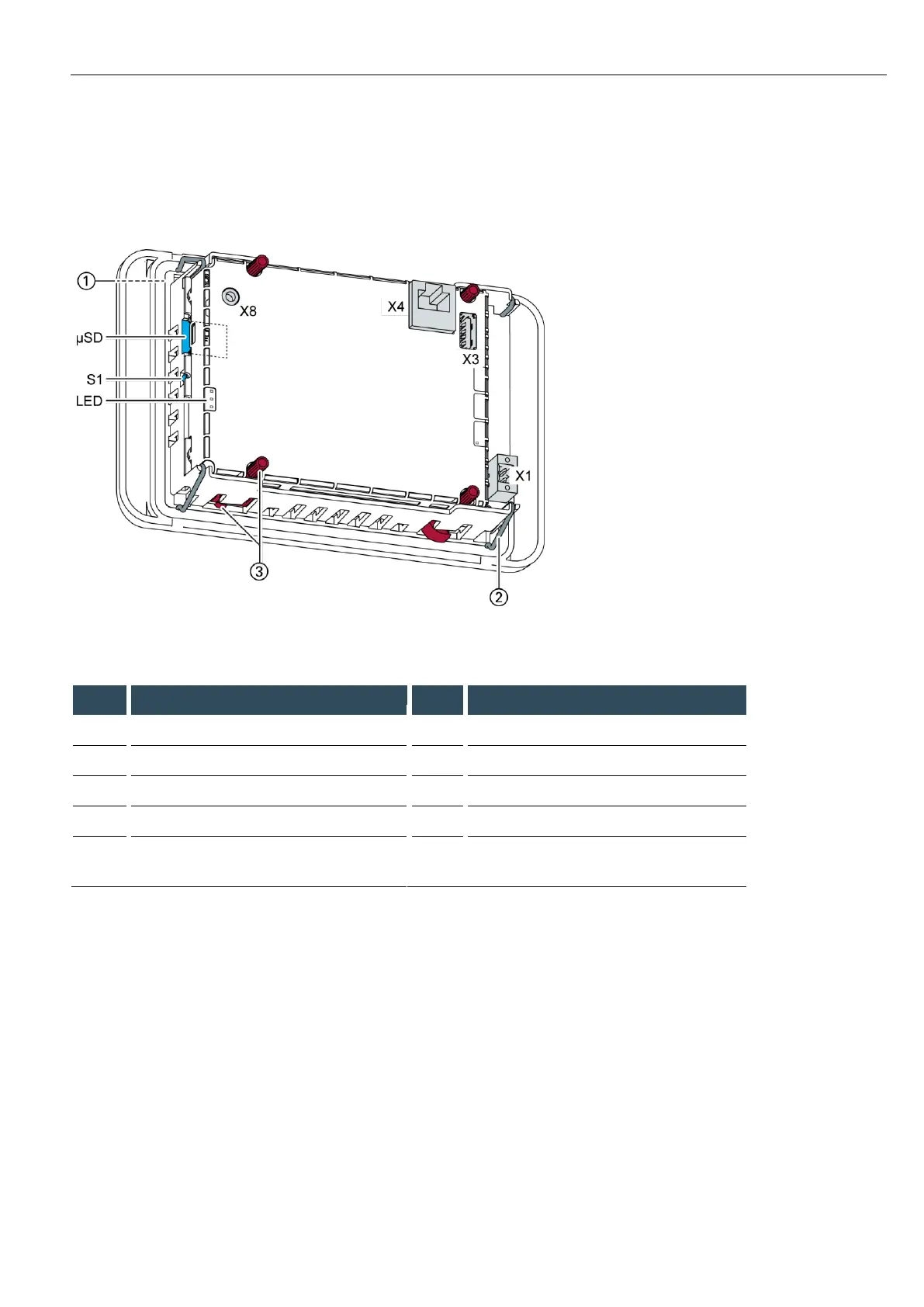

Fig. 3: Overview ET2004 (rear view)
Item
Designation
Item
Designation
1
Display 4.3 inch
X1
Power supply
2
Securing clip (qty 4)
X3
USB 2.0
3
Twist-lock catch (qty 4)
1
X4
Ethernet (ETH0)
S1
Function key (Reset and Run/Stop)
X8
Debug interface
LED
LEDs: PWR, Run/Stop, Error
µSD
microSD card connection (for future
applications)
1
Required only for protection rating IP65
