5.1.1. Connecting the power supply to the DC20XX and ECC21XX Slim
CAUTION
Live parts!
 Before starting any work on the device, switch off all power feeds,
including peripherals.
 Connect the power supply to plug X1 according to the following table.

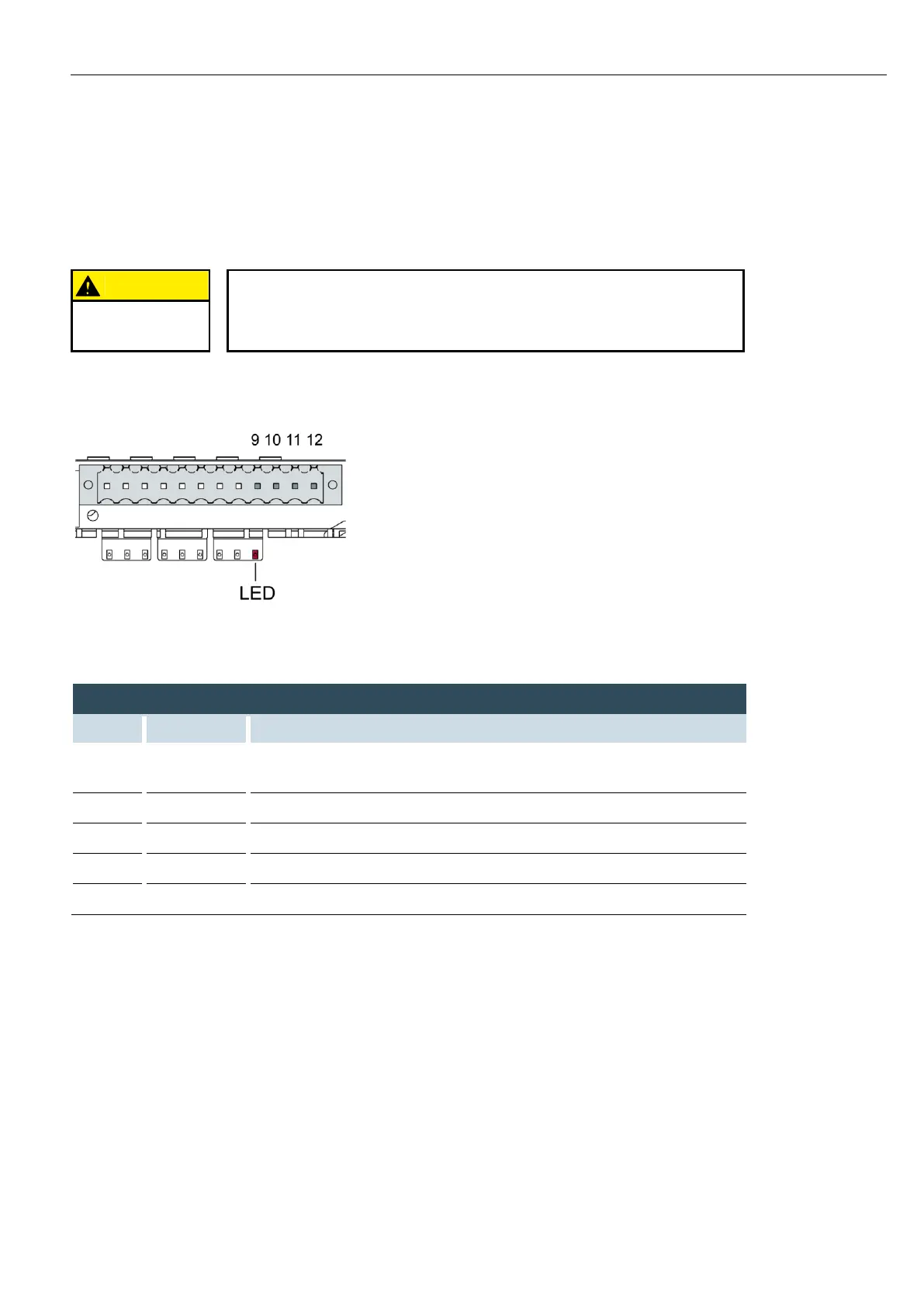

Fig. 15: Power supply to the DC20XX and ECC21XX Slim plug X1 with power LED
Power supply plug X1
Pin
Designation
Assignment
1…8
I/O
Digital inputs and outputs (see “Digital inputs and outputs, DC20XX and
ECC21XX Slim”)
9
L1+
Feed to digital output (max. 2 A) for I/O
10
L+ 24 V
Power supply 24 V DC (–15 %/+20 %) (PLC internal processing) max. 1.2 A
11
L+ 24 V
Power supply 24 V DC (–15 %/+20 %) (PLC internal processing) max. 1.2 A
12
GND
–
The following counterparts have been tested for the SC-SMT 3.5 (Weidmüller) plug-in connector and are
approved for use with the device:
 BLZF 3.50/12/180
