4.3. Installation, ECC21XX Slim
The ECC21XX Slim is designed to be installed on a mounting rail to DIN EN 60715:2001, 35 x 7.5 mm.
Danger of burns!
The surface of the device can become hot.
Ensure that there is sufficient convectional cooling for heat to dissipate.
Ensure that there is also a minimum of 50 mm free space both above and
below the device.

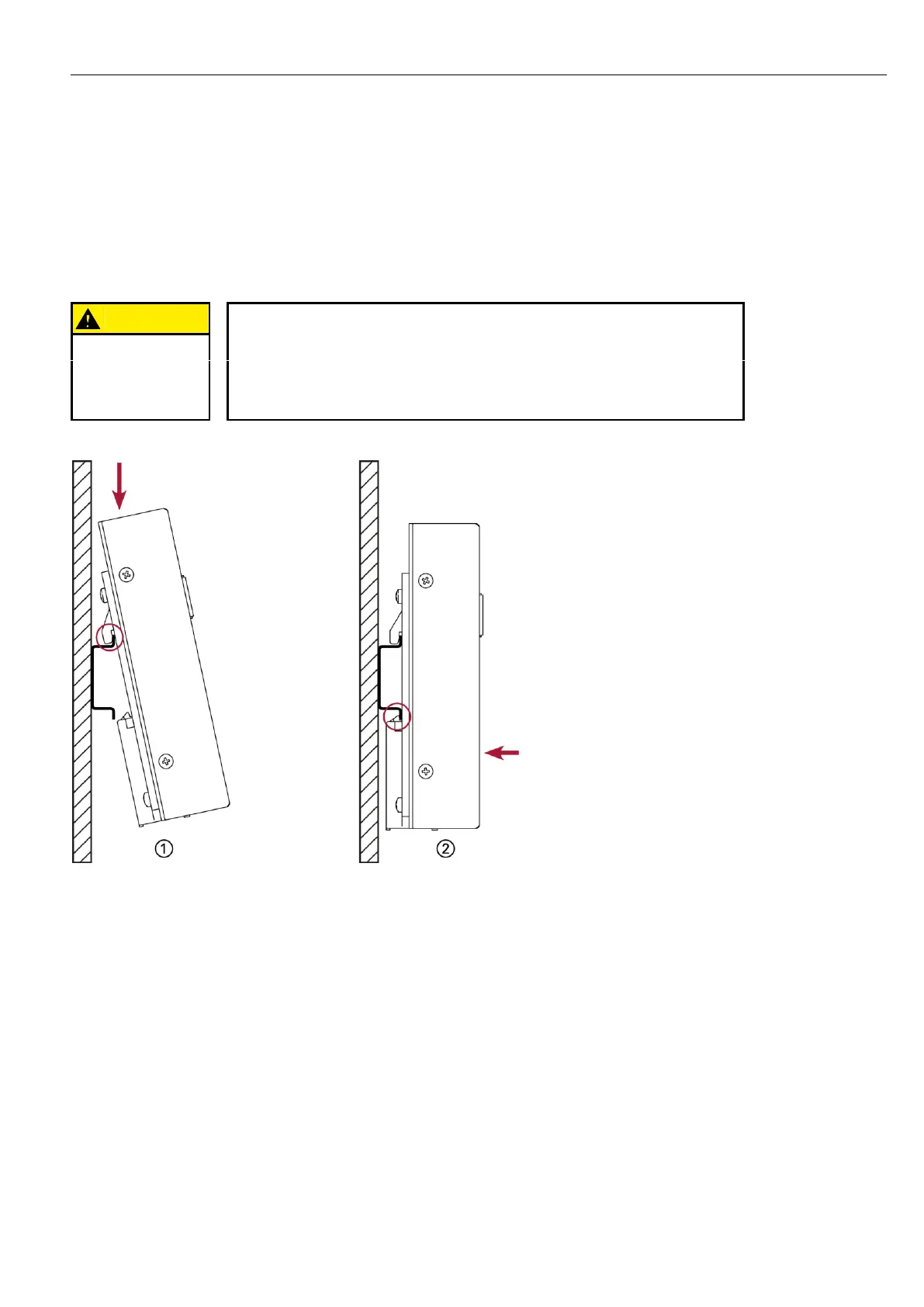

Fig. 14: Installing the device
Requirements:
At least 1 cm free space must be left between the device and the adjacent module.
1st Insert the device into the mounting rail from above so that the clip is resting on the rail.
2nd Push the device down against the mounting surface so that the retaining spring engages.
The device is now engaged on the mounting rail.
