4.2. Installation, DC20XX and ET20XX

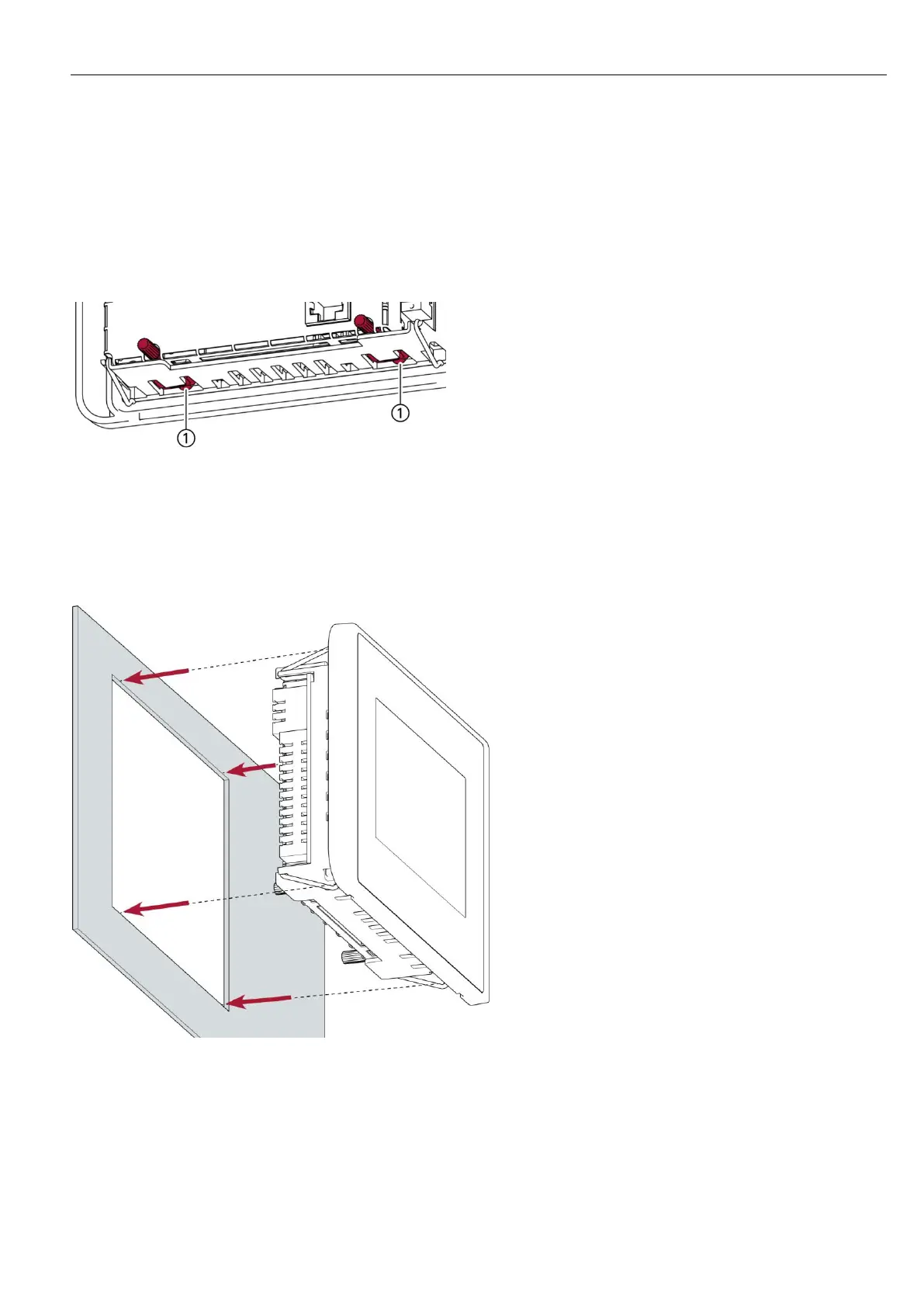

Fig. 11: Open the twist-lock catches
1st Device with twist-lock catches: make sure that the twist-lock catches are turned anti-clockwise to the
limit and are fully open (1).
Fig. 12: Installation in an installation cut-out, example with 4 securing clips
2nd Making sure the alignment is correct, push the device evenly into the installation cut-out until the 2 or
3 securing clips snap the device tight.
