USER HANDBOOK 2.0 | DC20XX, ET20XX, ECC21XX SLIM
Berghof Automation GmbH | Harretstrasse 1 | 72800 Eningen | www.berghof.com
Dialog-Controller-DC20XX_EN.docx

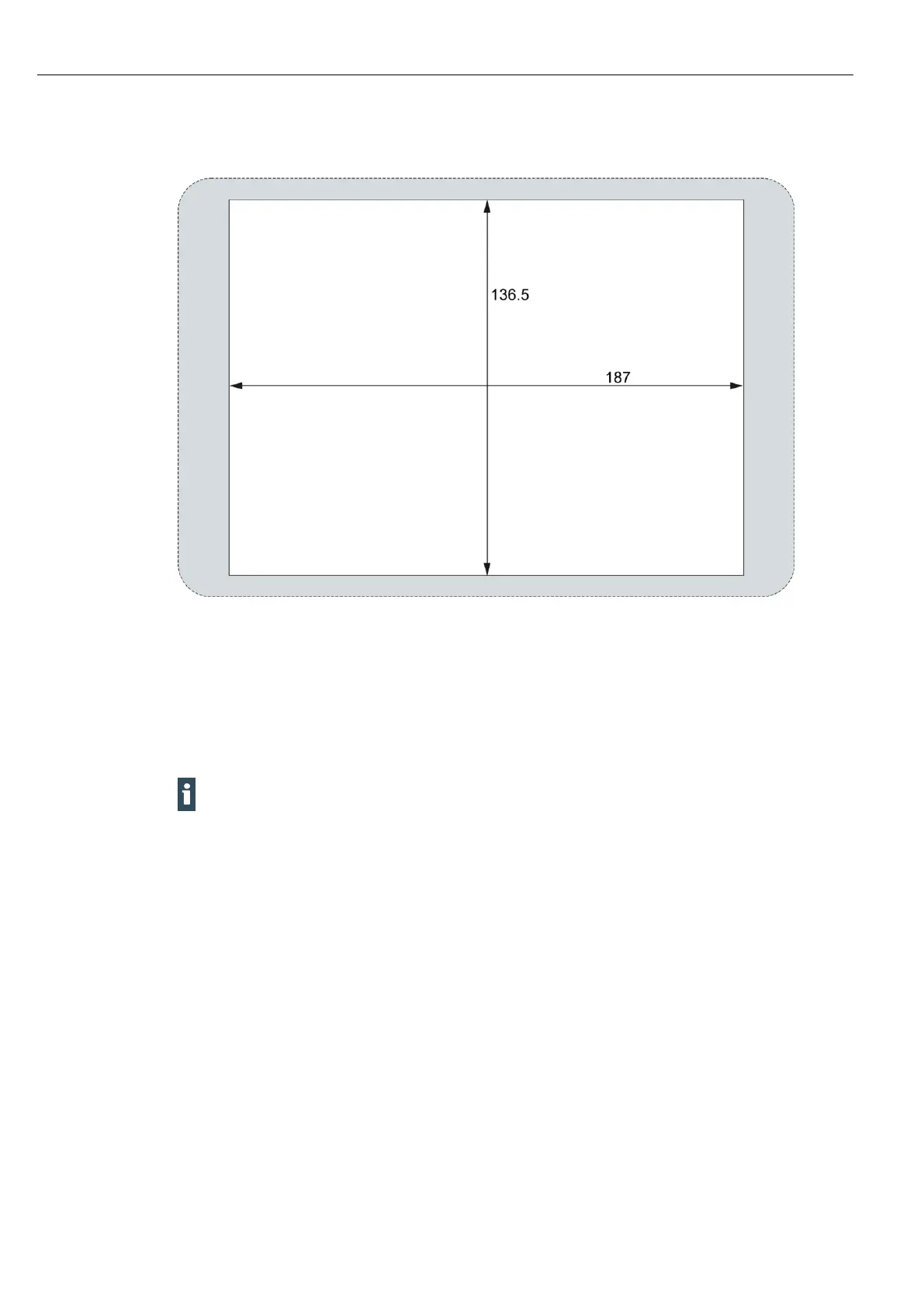

Fig. 10: Installation cut-out, DC2007 and ET2007
Cut a rectangular installation cut-out in the support material:
Height: 136.5 mm
Width: 187.0 mm
Max. corner radius: 3.0 mm
Thickness of the support material:
Protection class IP65 with twist-lock catches: only at 1.5–3.0 mm
Optimal: 1.5–2.0 mm
Max.: 3.0 mm
