3.1.4. Overview ET2007

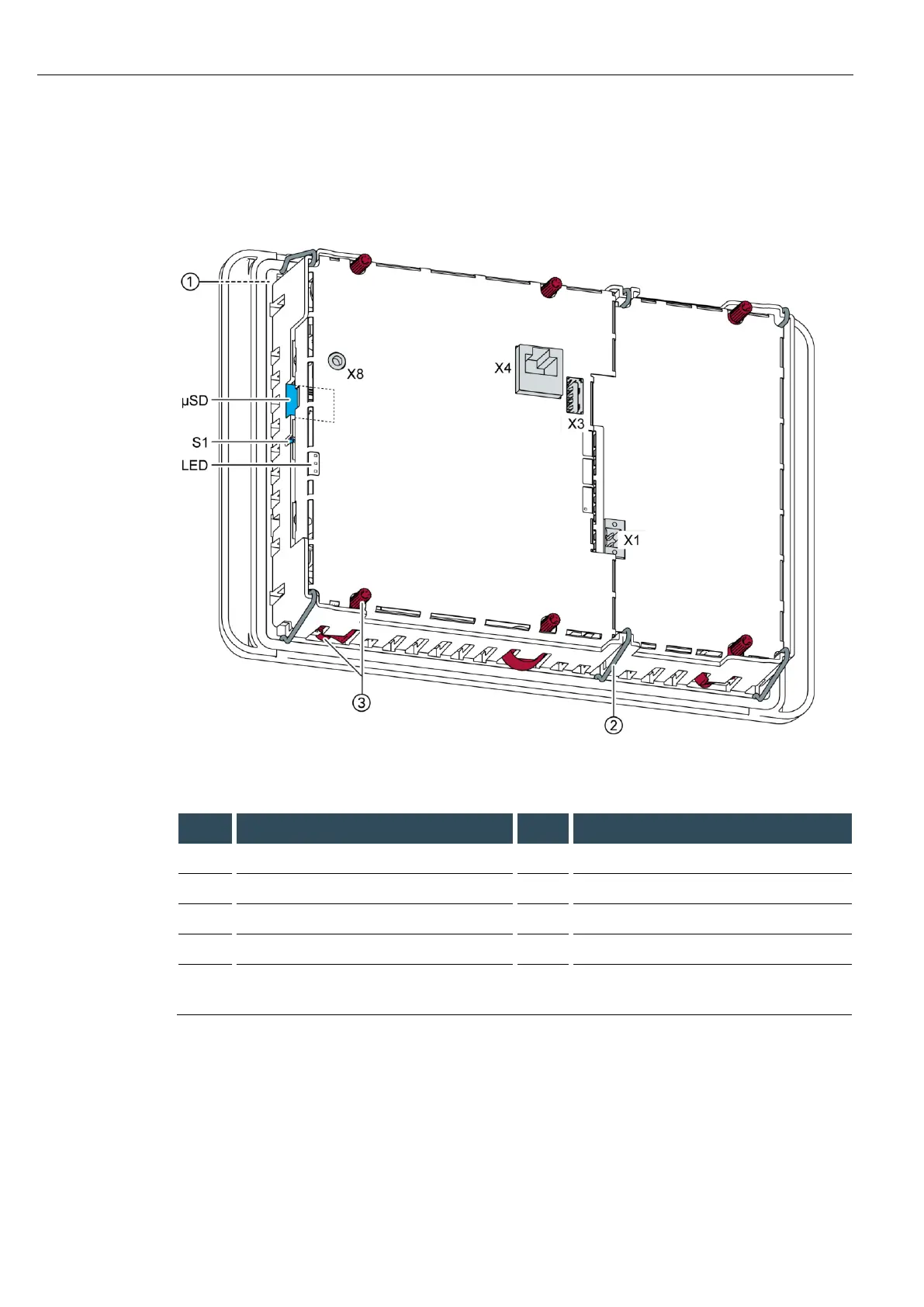

Fig. 4: Overview ET2007 (rear view)
Item
Designation
Item
Designation
1
Display 7 inch
X1
Power supply
2
Securing clip (qty 6)
X3
USB 2.0
3
Twist-lock catch (qty 6)
1
X4
Ethernet (ETH0)
S1
Function key (Reset and Run/Stop)
X8
Debug interface
LED
LEDs: PWR, Run/Stop, Error
µSD
microSD card connection (for future
applications)
1
Required only for protection rating IP65
