Voltage input AI (U)

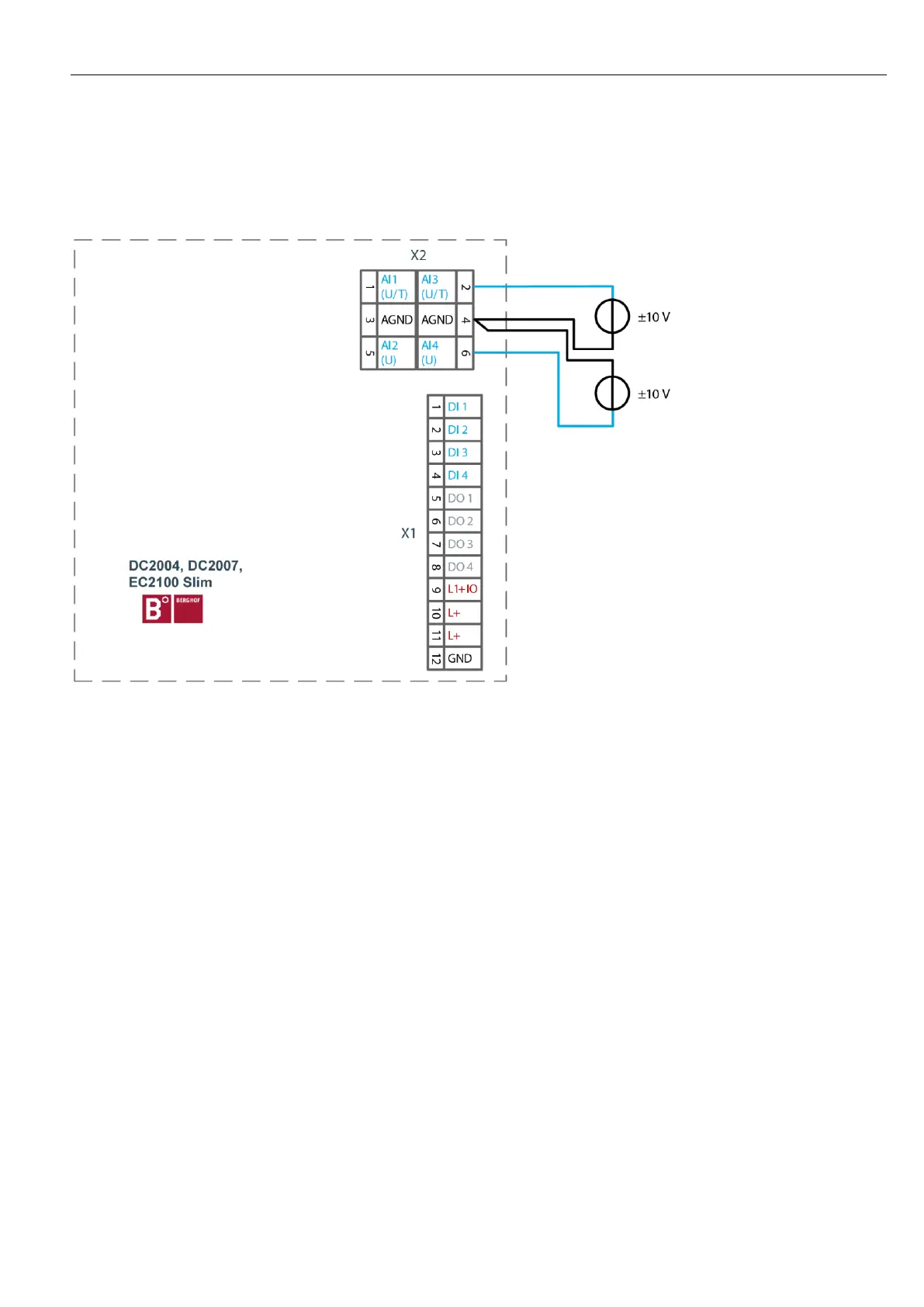

Fig. 31: example connection: voltage input
 Only use the corresponding AGND for each voltage input.
 Do not connect AGNDs from different channels.
 AGNDs from different channels must always be connected separately to the plug X1.
 Do not connect to the common GND. The required connections can already be found on the circuit
board.
 Cables to the analogue sensors/encoders should be connected as directly as possible (avoid the use of
terminals and terminal blocks).
