3.1.5. Overview ECC2100 Slim and ECC2110 Slim
The ECC2100 Slim and the ECC2110 Slim do not have a display of their own and are installed on a
mounting rail.

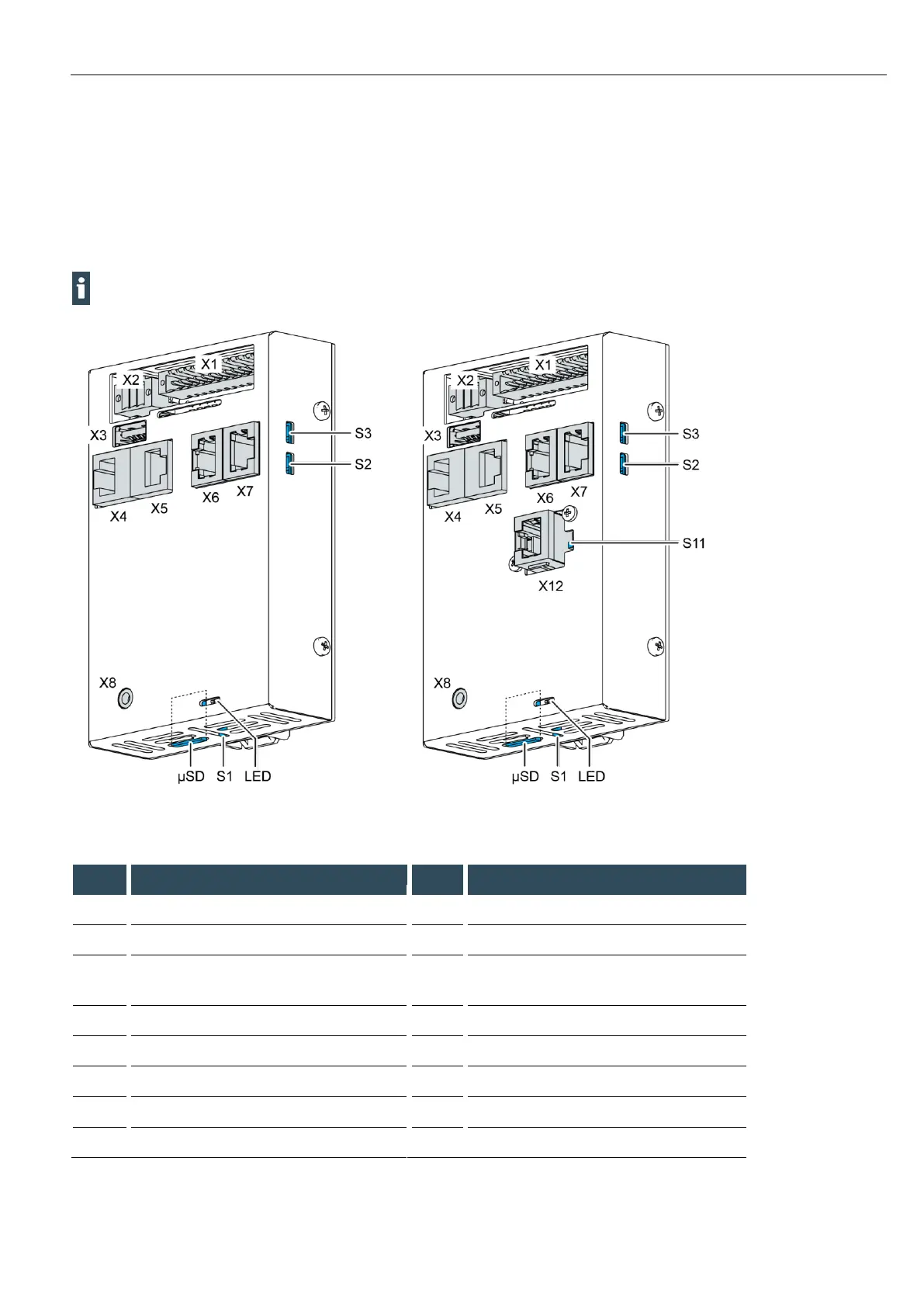

Fig. 5: Overview ECC2100 Slim
Fig. 6: Overview ECC2110 Slim
Item
Designation
Item
Designation
X1
Power supply , digital inputs / output
X12
CAN1 bus
X2
Analogue inputs
S1
Function key (Reset and Run/Stop)
X3
USB 2.0
S2
Terminating resistor CAN (120 Ohm)
X4
Ethernet (ETH0)
S3
Terminating resistor RS-485 (120 Ohm)
X5
EtherCAT (ETH1)
S11
Terminating resistor CAN (120 Ohm)
X6
RS-232 / RS-485
µSD
microSD card connection (optional)
X7
CAN0 bus
LED
LEDs: PWR, Run/Stop, Error
X8
Debug interface
