4.1.2. Installation cut-out, DC2007 and ET2007

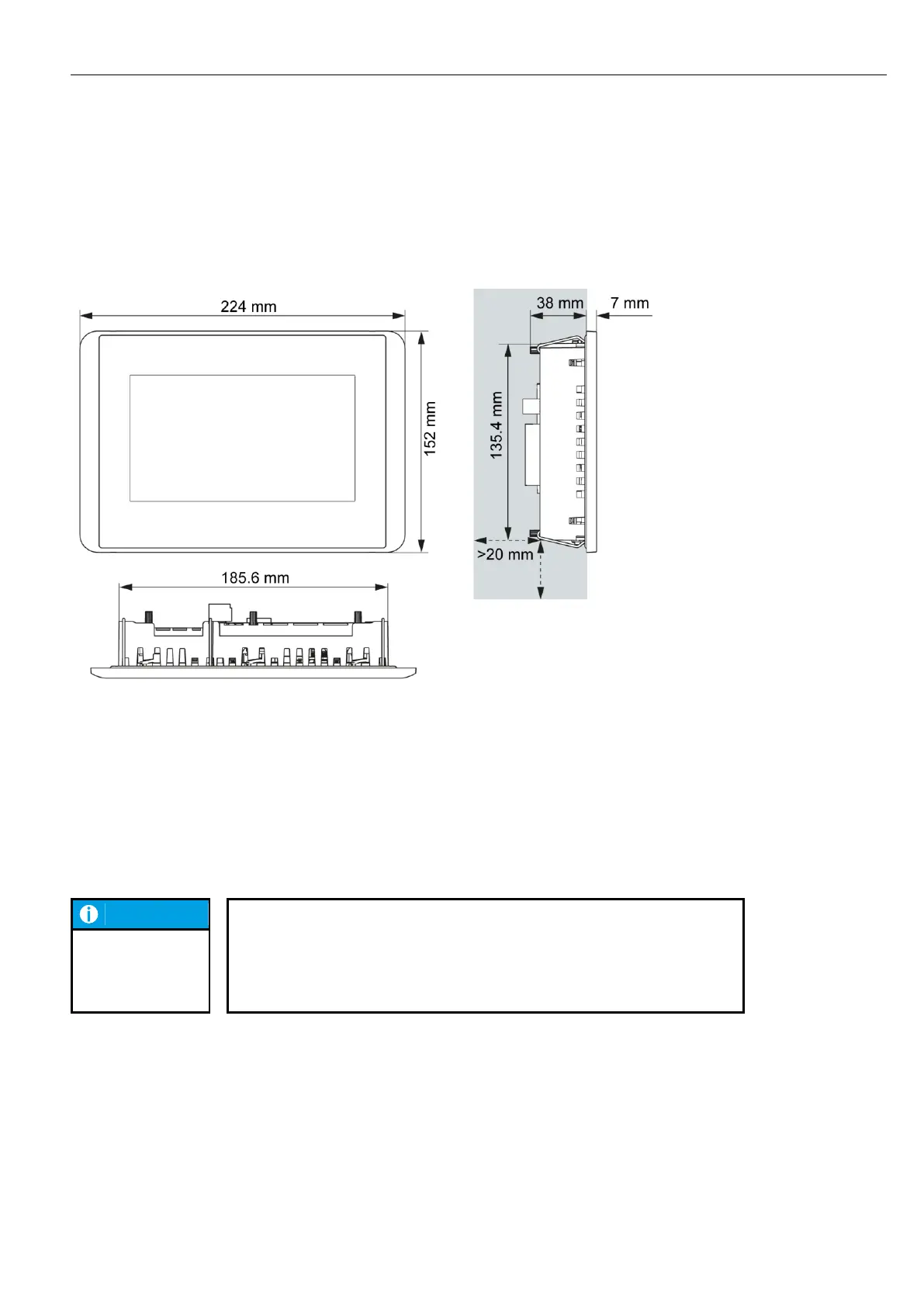

Fig. 9: Dimensions, DC2007 and ET2007
Requirements:
 The device must have a clear space of at least 20 mm all round at the rear, to allow sufficient air
circulation.
 The max. surrounding air temperature in the control cabinet must not exceed 55°C during operation.
 The support material for the installation cut-out must be flat, sufficiently stable, and be from 1 to 3 mm
thick.
NOTICE
Damage to the device!
Installation on uneven support material can lead to mechanical stresses and
cracks in the front face or malfunctioning of the touch screen.
 Make sure that the mounting points of the device are all in a common
plane, with no more than maximum ±0.5 mm variation.
