4. Installation
4.1. Preparation for installation, DC20XX and ET20XX
The devices are intended for installation in a rectangular cut-out on a front panel. The support material must
be rigid and be from 1 to 3 mm thick.
4.1.1. Installation cut-out, DC2004 and ET2004

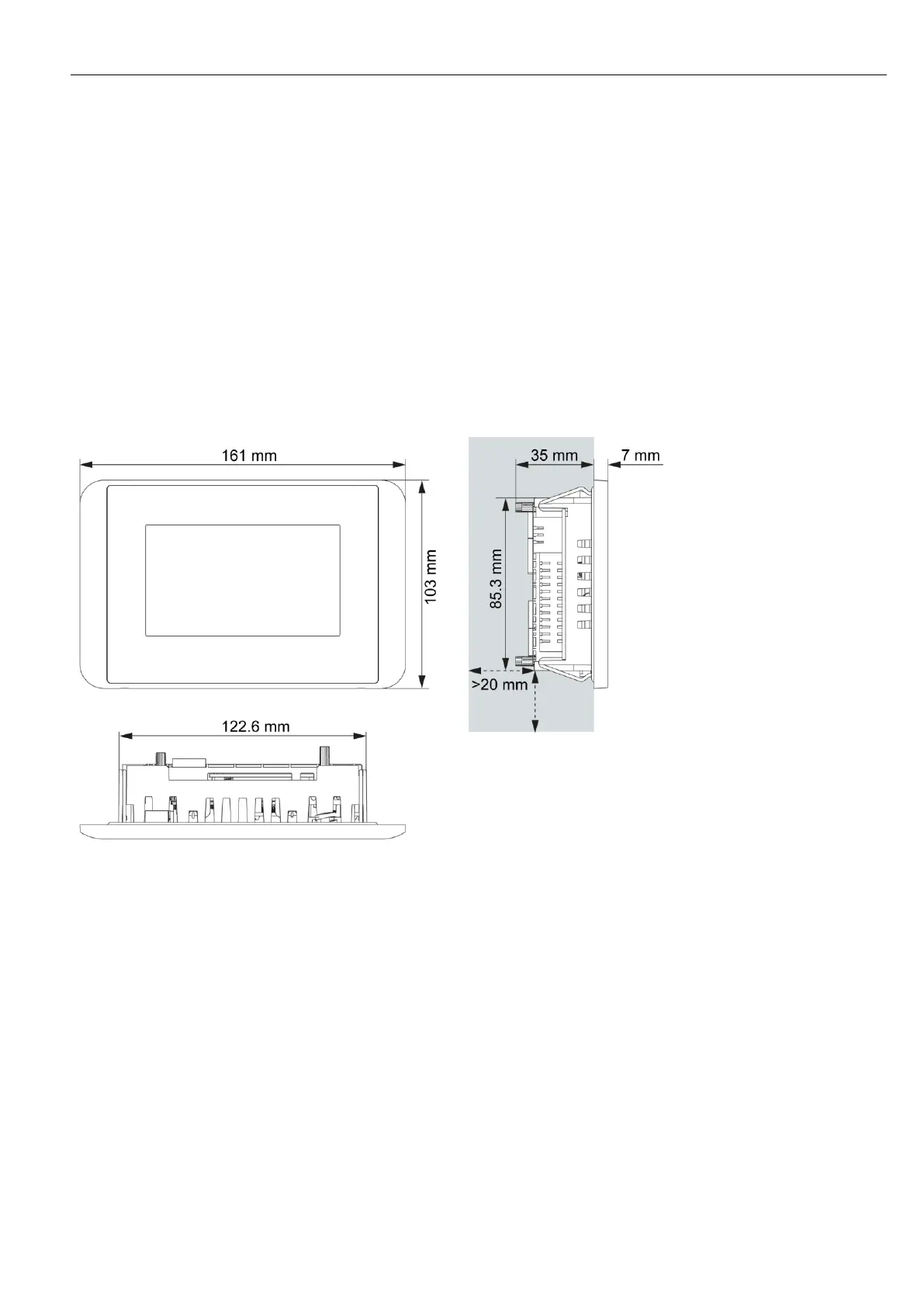

Fig. 7: Dimensions, DC2004 and ET2004
Requirements:
 The device must have a clear space of at least 20 mm all round at the rear, to allow sufficient air
circulation.
 The max. surrounding air temperature in the control cabinet must not exceed 55°C during operation.
 The support material for the installation cut-out must be flat, sufficiently stable, and be from 1 to 3 mm
thick.
