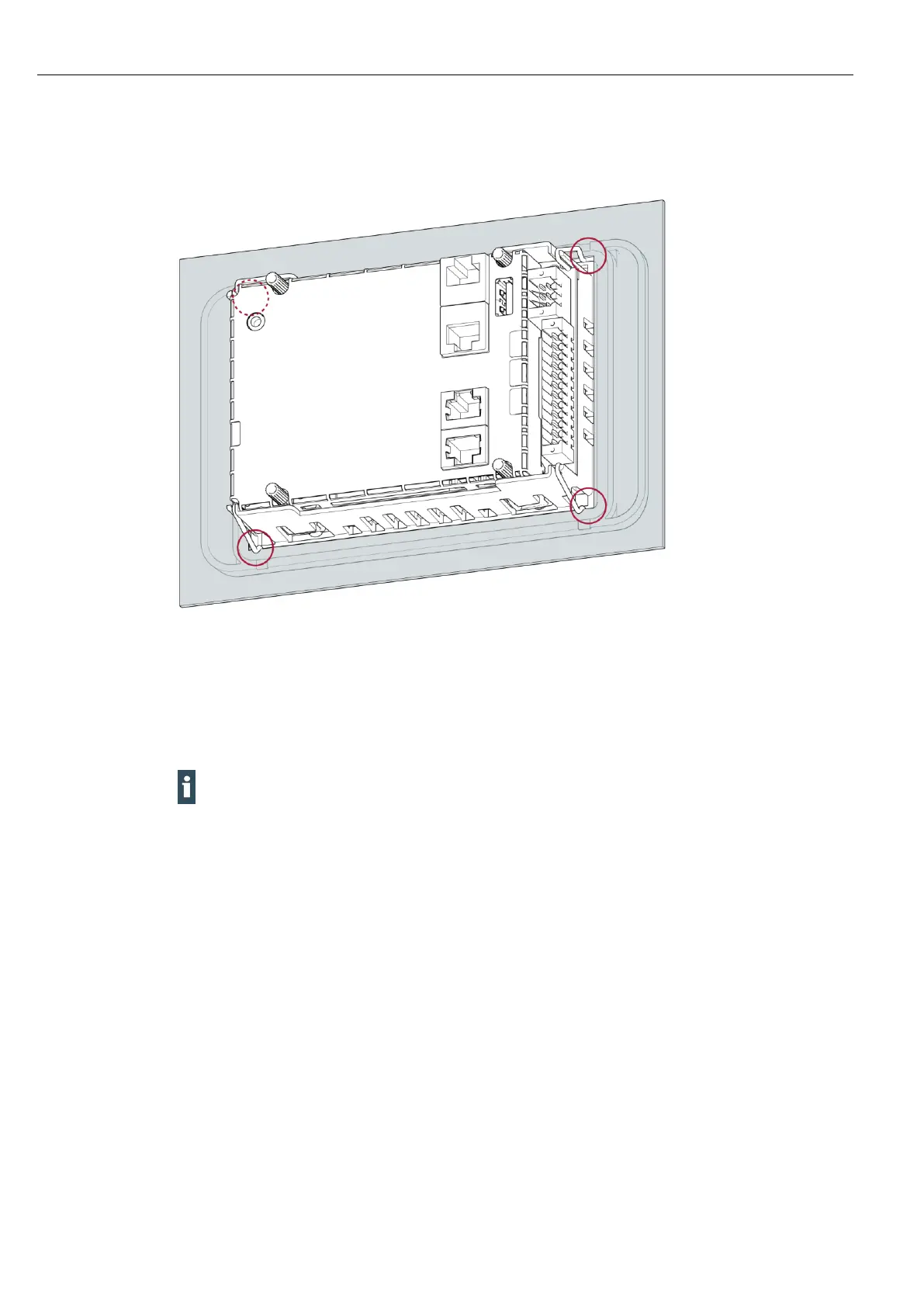

Fig. 13: Device clicked home in the installation cut-out, example with 4 securing clips
3rd Make sure the device lies flush all round.
4th Device with twist-lock catches: Secure the twist-lock catches by turning them with a T9x50
screwdriver. Apply maximum 0.4 Nm torque.
The protection rating IP65 at the front face is achieved only when the twist-lock catches are used
correctly.
