3 TECHNICAL SPECIFICATIONS
3.1 OVERALL DIMENSION

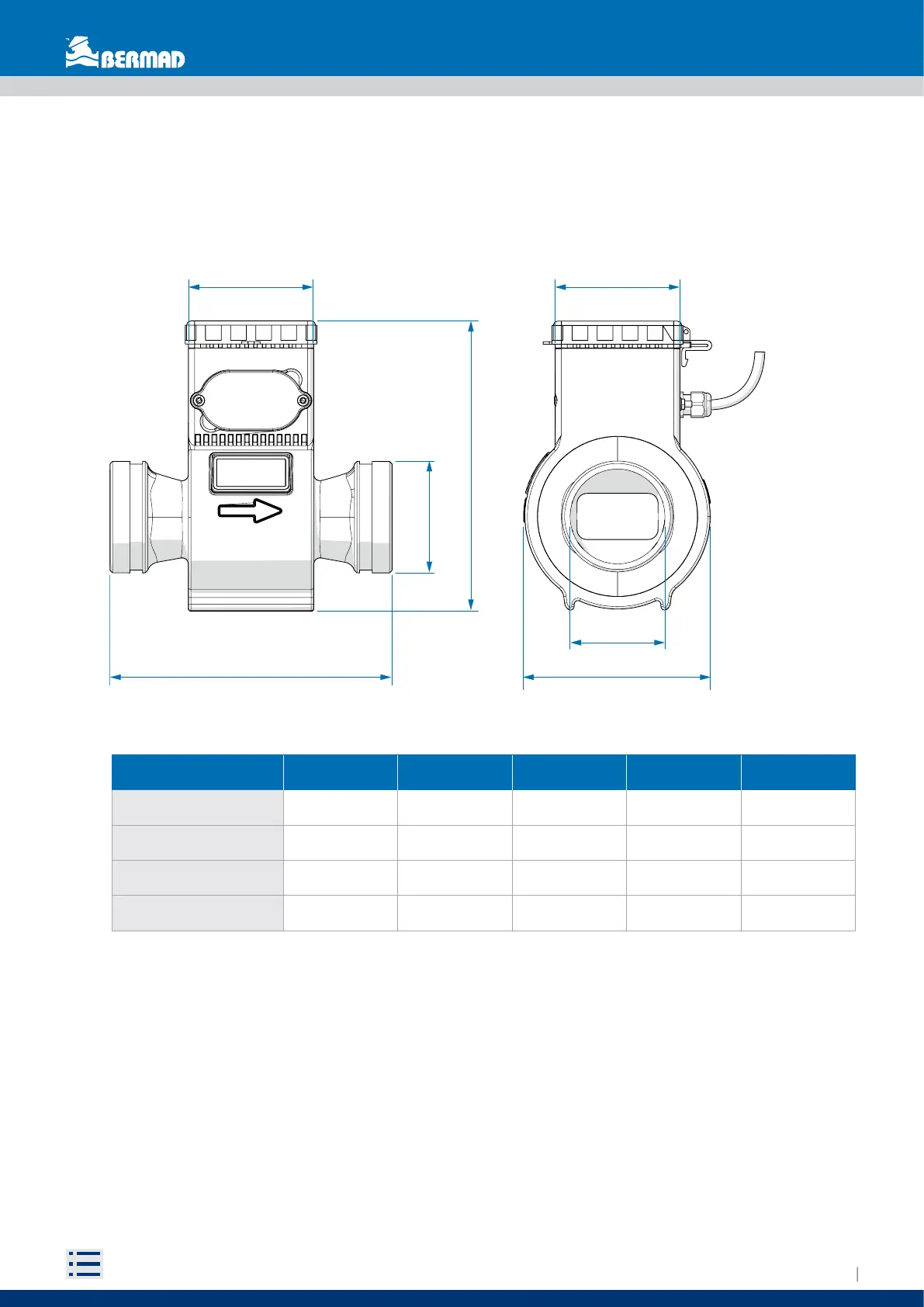

The overall dimensions of M10 are shown below.
L2
Di
L3L4
De
L1
L2
Size De L1 L2 L3 L4
DN50 / 2” 60.3 230 100 150 200
DN80 / 3” 88.6 230 100 150 225
DN100 / 4” 114.3 230 100 150 250
DN150 / 6” * 168.3 300 100 210 300
* DN150/6” Version are indicative
