Instruction Manual
77

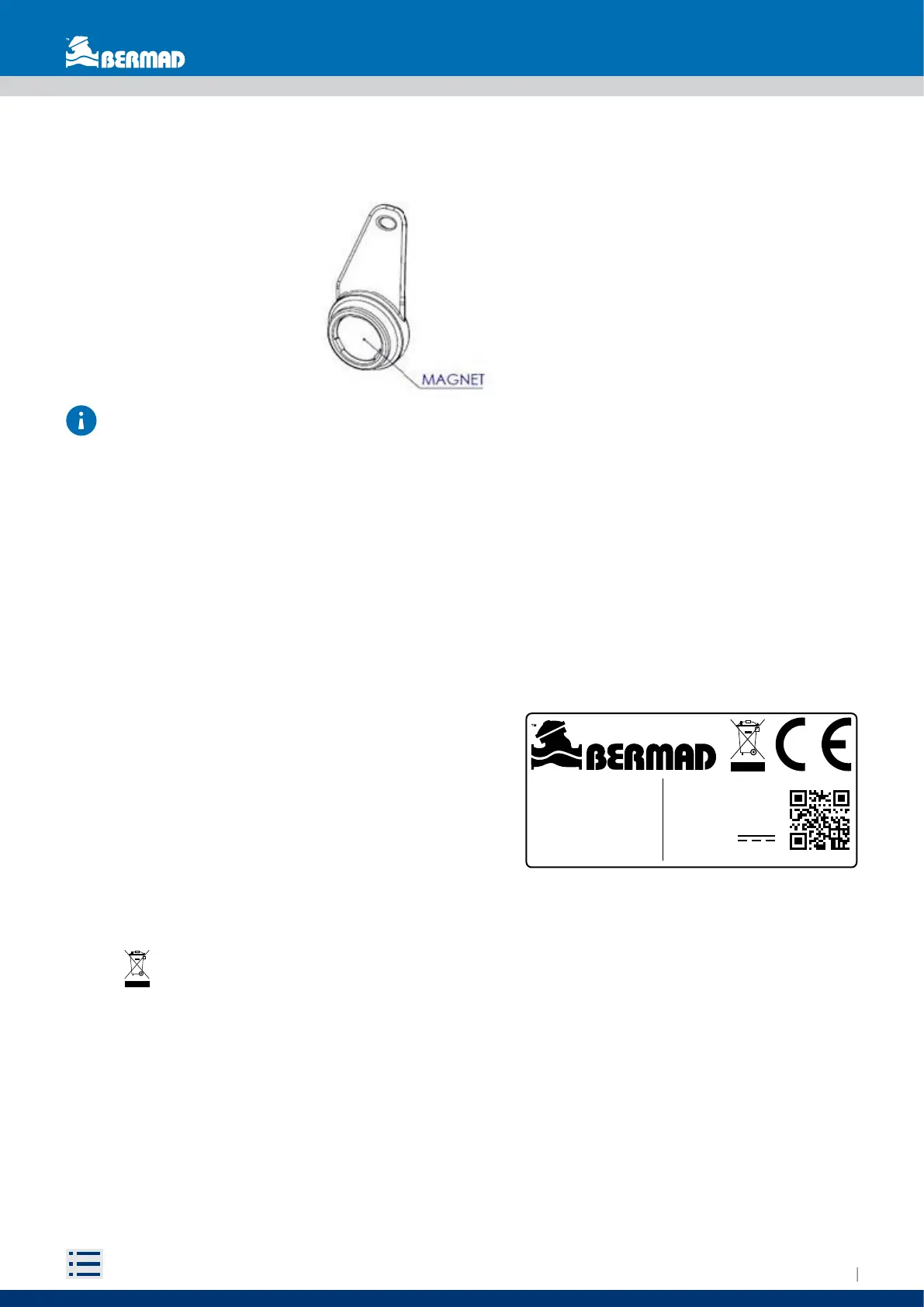

The M10 meter is equipped with a magnet for magnetic reed operation.
NOTES:
Electromagnetic flowmeters are designed specifically to operate under the following basic
conditions:
1. The liquid must be conductive
2. The tube must always be completely full
3. The input and output distances must be according to the recommended settings
4. The grounding instructions must be followed
1.4 PRODUCT IDENTIFICATION
Each M10 manufactured by BERMAD has a STANDARD identification plate
(Fig. 1) or MID (Fig. 2), that displays the following information:
STANDARD PLATE:
CE conformity mark.
MODEL: Instrument Model
S/N: Meter Serial Number
Size: Nominal diameter
PN: Pressure class
Qmax: Max flow rate
IP: Degree of protection
12Vdc / Battery: power supply, to be selected during
commissioning
This symbol means that the product must be
disposed of according to the legal requirements.
Fig. 1 STANDARD Identification Plate
Model: M10
S/N: N7K0056
Size: DN80/3”
PN: 16 bar
Qmax: 100 m
3
/h
IP: 68
12VDC
BATTERY
PN: M070080G16PF2AB
