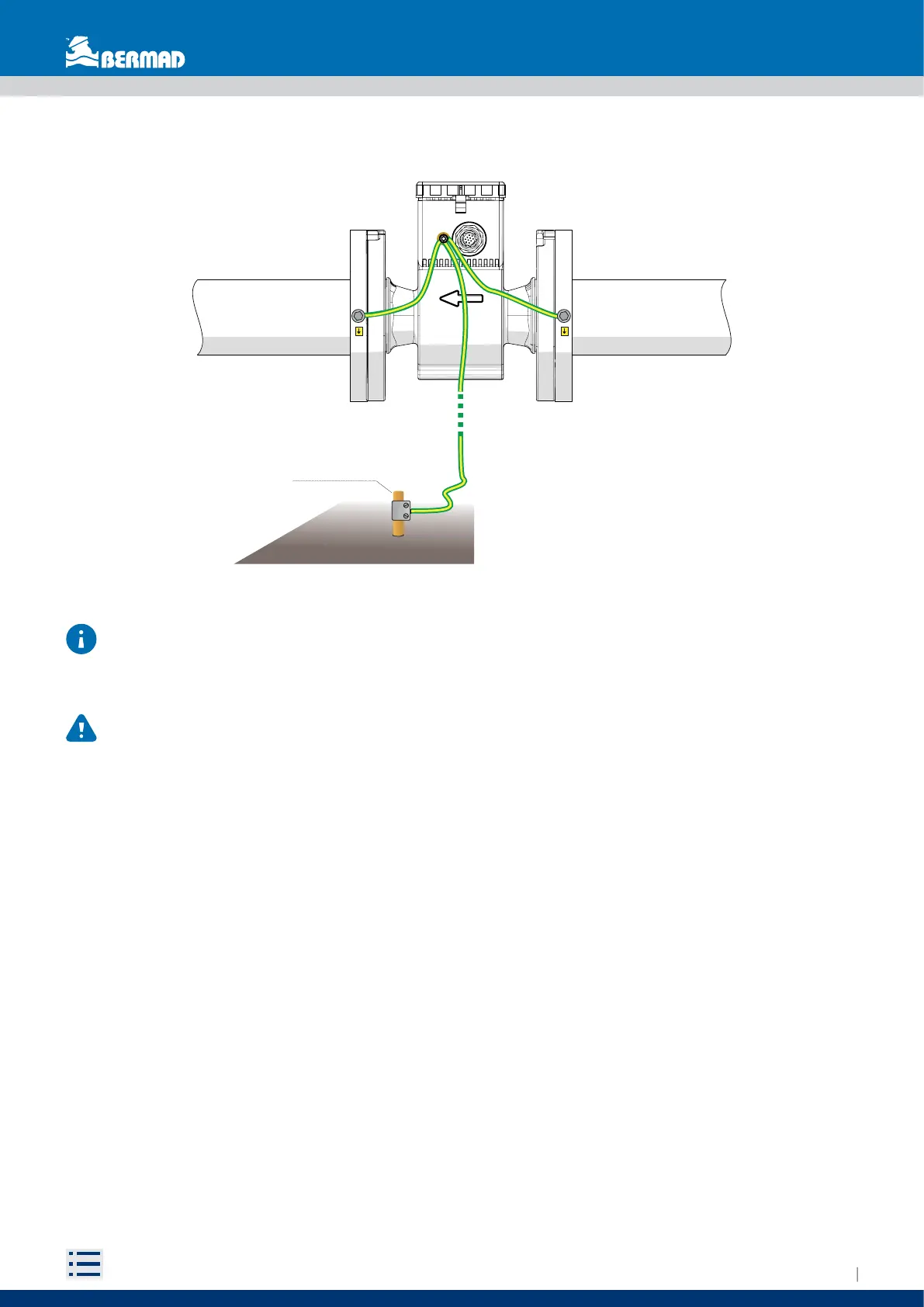

4.6.3.2 Metal Pipe Installation
Fig. 42
For a correct device operation, it is necessary to carry out a connection in a well-executed manner.
4.6.4 Connection to the power supply
THE ELECTRICAL CONNECTION OF THE DEVICE MUST BE CARRIED OUT BY QUALIFIED TRAINED PERSONNEL.
Make sure that all electrical connections have been made correctly before connecting the unit to the
power supply.
Power supply: 12VDC - 100mA (10.8 ÷ 13.2 V)
Power consumption: 0.25 ÷ 1 W
Grounding rod
METAL PIPES
