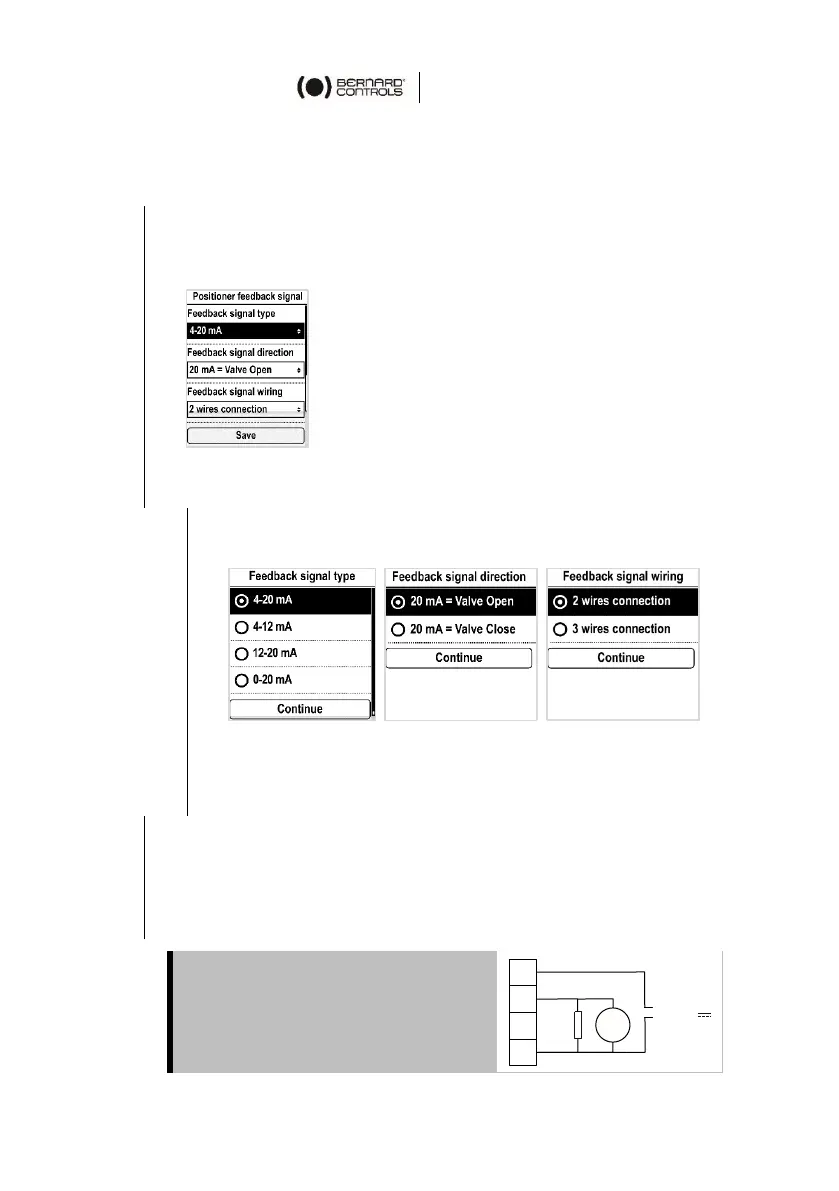

5.9.3 Set Positioner feedback signal
How to set Positioner Feedback signal
1. From Analog Input/Output menu, enter Positioner
feedback signal.
The Positioner feedback signal screen appears.
2. For Feedback Signal Type, Feedback Signal Direction and
Feedback Signal Wiring settings:
a. Select the setting to adjust and validate with OK.
The corresponding setting screen appears.
b. Select the desired value and validate with OK.
c. Continue button is highlighted, validate with OK.
The display goes back to Input signal type screen.
3. Go to Save then validate with OK.
The Input Signal Type confirmation screen appears.
4. Select YES then validate with OK.
You go back to Analog Input/Output menu.

The 0-10V signal can be obtained
using a 0-20mA combined with a
500 ohm (or 499 ohm 1%) resistor.
The power supply will be 15 to
32V.
32
33
34
35
0-10V
15-32V
+
−
+
−
