Setting up the machine
21
2020-09 EN 5040064.00A.04

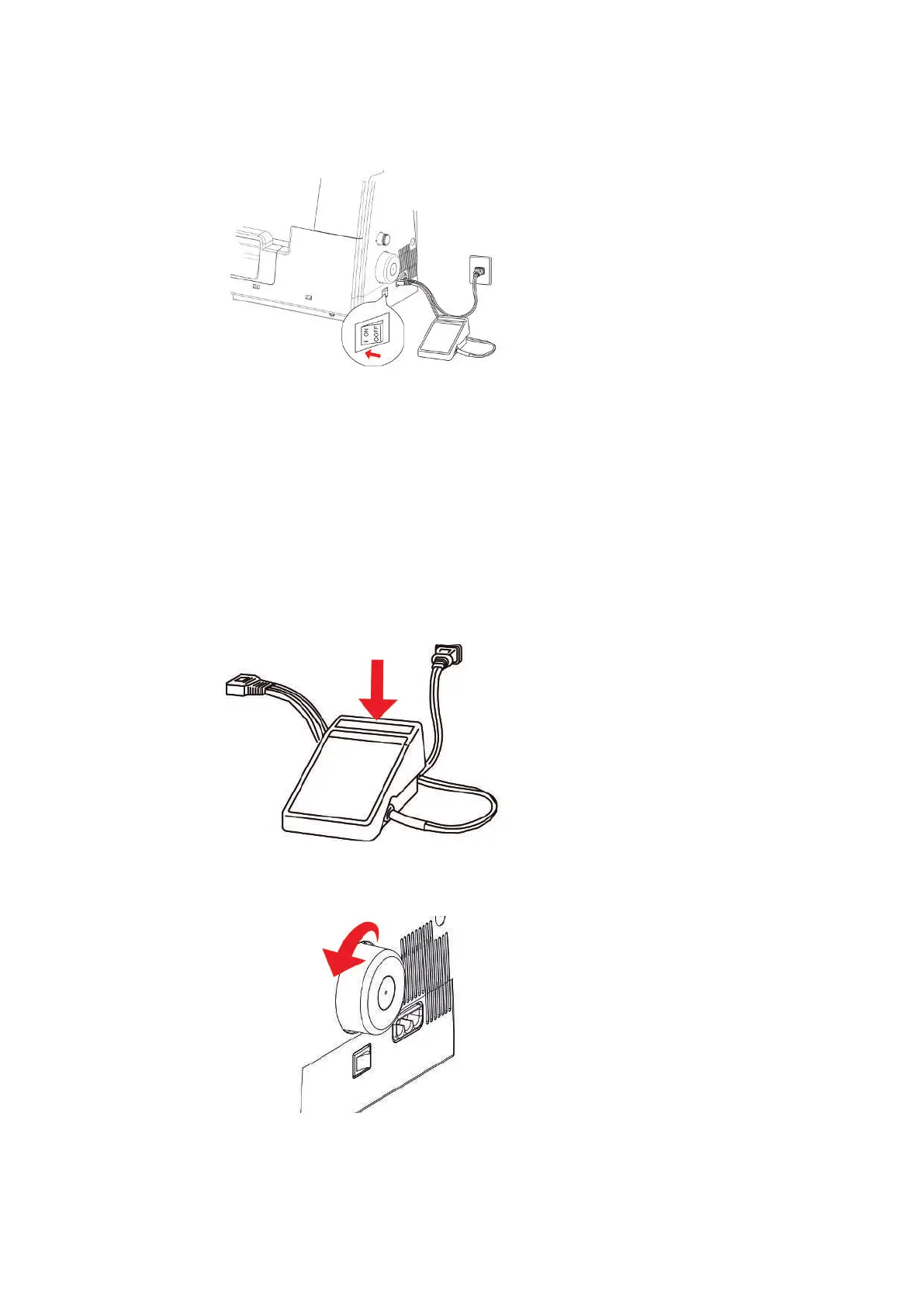

Switching the machine and sewing light on/off
> Set the Power Switch to «I».
– The machine and the Sewing Light switch on.
> Turn the Power Switch to «0».
– The machine switches off.
– The sewing light switches off time-delayed to the machine.
3.3 Foot control
Press the foot control
By operating the Foot Control the needle and knife move. The sewing speed can be infinitely adjusted by
more or less pressure on the foot control.
> To start the sewing process, increase the pressure on the Foot Control.
> To stop the sewing process, reduce the pressure on the Foot Control.
3.4 Handwheel
By turning the Handwheel counterclockwise, several activities can be performed.
• Slow, precise placement of the needle
• Moving the Loopers
• Moving the Knife
• Mechanical coupling of the Air Threader
