Setting up the machine
30
2020-09 EN 5040064.00A.04
3.9 Sewing Assistance

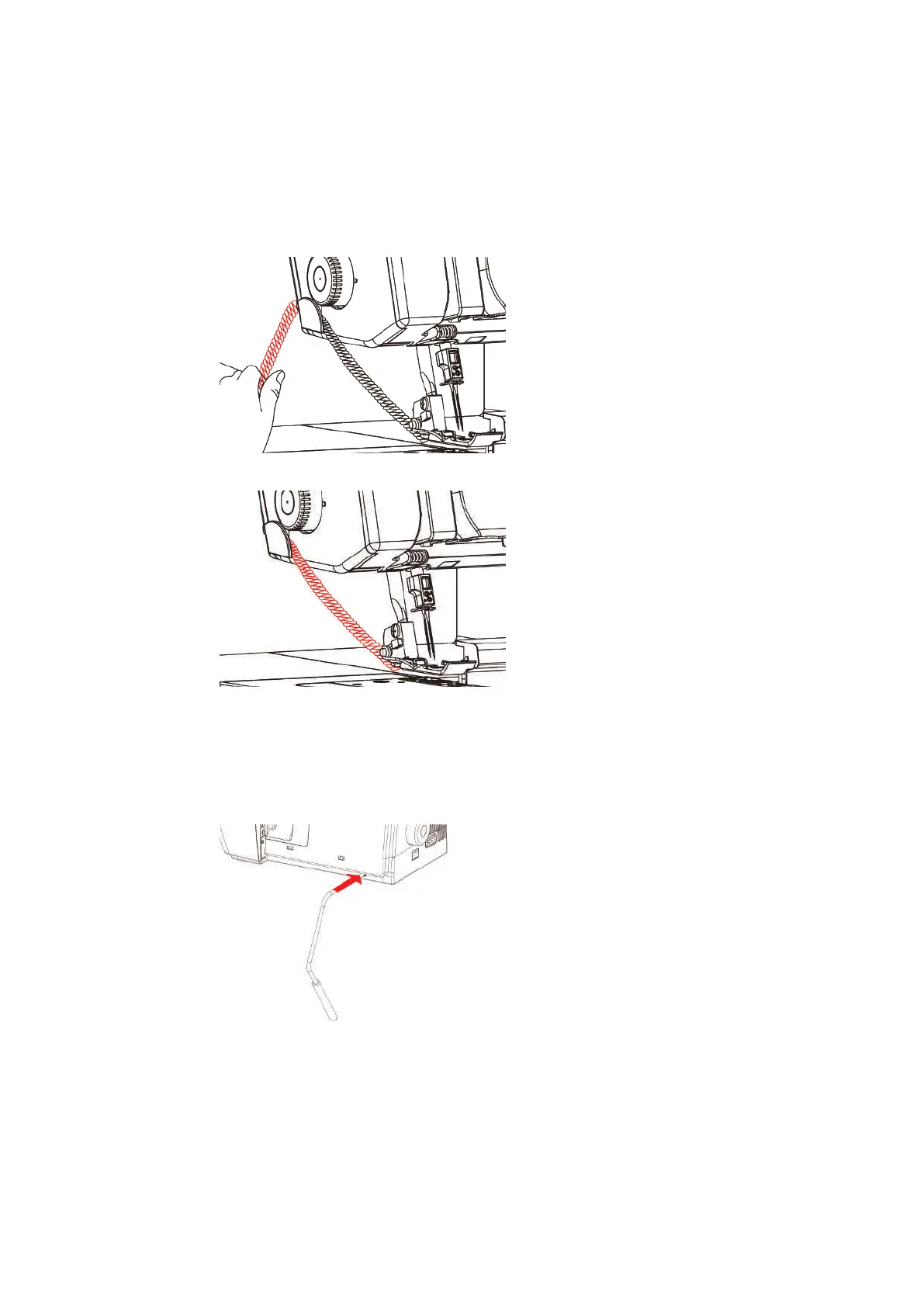

Using the thread cutter
The Thread Cutter is used to cut the threads/thread chain.
> Pull the threads/thread chain into the thread cutter and downwards.
ā The threads/thread chains are held after cutting and are ready for sewing.
Attaching/removing the knee lifter
Temporarily lifting the presser foot using the Free Hand System allows the sewing project to be repositioned
using both hands.
> To attach the Knee Lifter, push the Knee Lifter Engaging Cam in a horizontal position into the Knee Lifter
Connection until it stops.
> To remove the Knee Lifter, pull the Knee Lifter out of the Knee Lifter Connection without swinging the
Knee Lifter sideways.
