Bernette Airlock b64 - Attaching;Removing the Cut-Offs bin; Attaching;Removing the Freearm Cover

Setting up the machine
31
2020-09 EN 5040064.00A.04

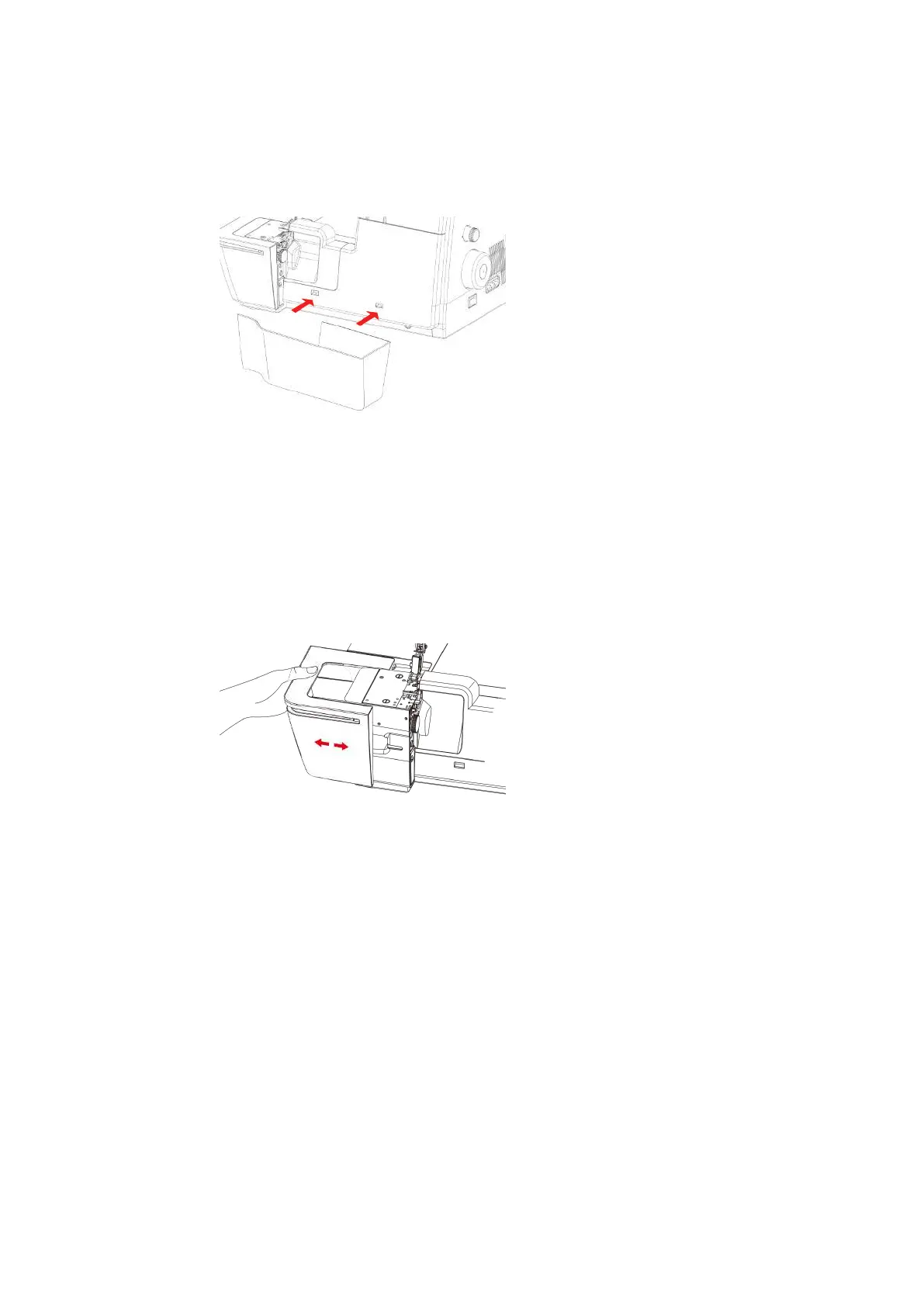

Attaching/removing the cut-offs bin
The Cut-offs Bin catches the fabric scraps during the sewing process.
> To attach the Cut-offs Bin, hook the Cut-offs Bin into the snap-in opening on the Looper Cover.
> To remove the Cut-offs Bin, lift the Cut-offs Bin out of the snap-in opening on the Looper Cover.
Attaching/removing the freearm cover
The freearm is ideal when working with tubular, closed projects such as cuffs, trouser hems or sleeve ends.
The freearm cover closes the gap between the stitch plate and the sewing surface.
Prerequisite:
• The slide-on table is removed.
> To attach the freearm cover, push the freearm cover along the guide rails from the left until it engages.
> To remove the freearm cover, pull the freearm cover to the left.
