Setting up the machine
28
2020-09 EN 5040064.00A.04

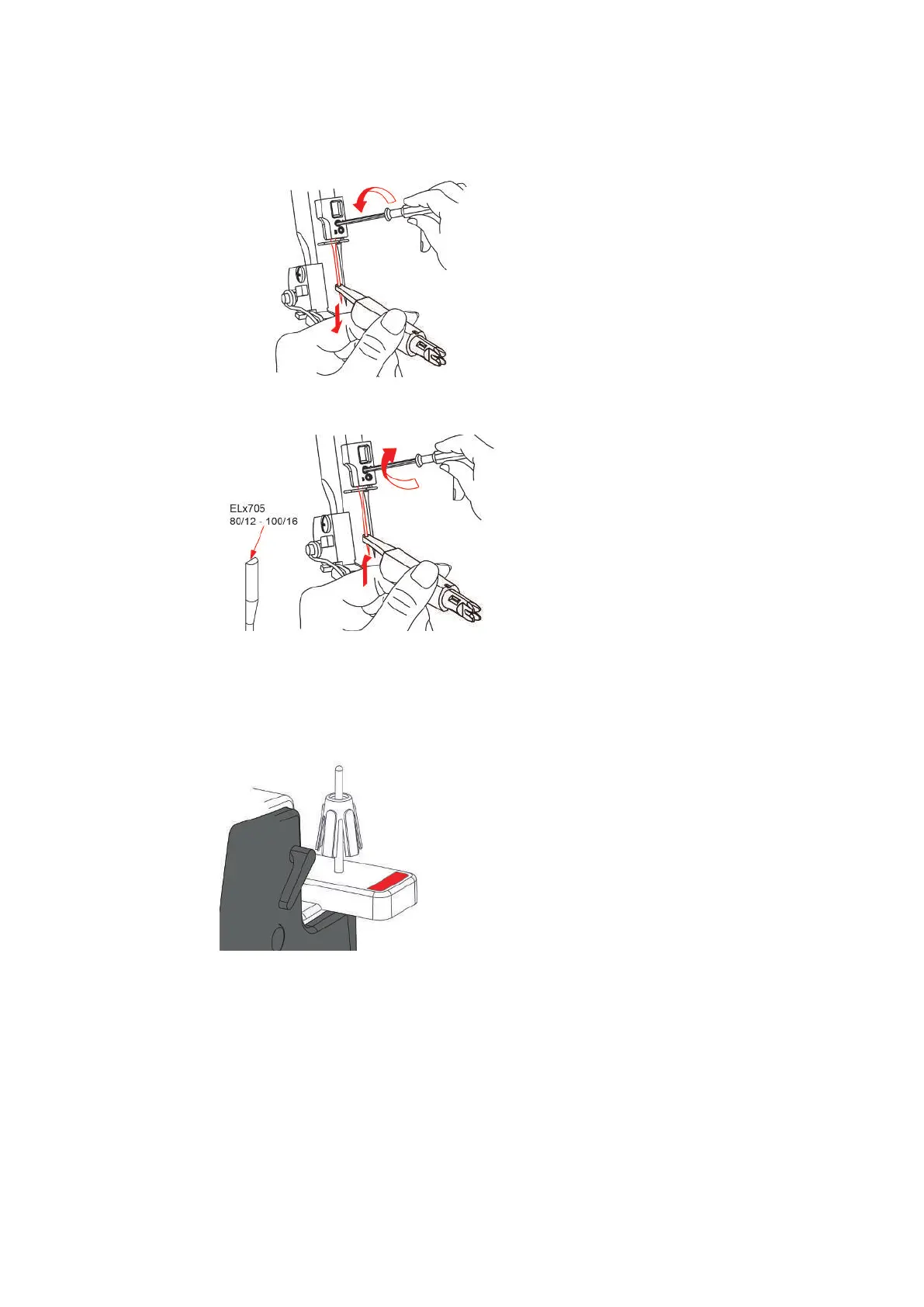

> Guide the Needle Inserter from below over the needle and loosen the Needle Screw using the supplied
Screwdriver.
> Pull the needle downwards to remove.
> Insert the new needle into the Needle Inserter with the flat side facing back.
> Push the needle into the corresponding Needle Holder opening as far as it will go.
> Tighten the Needle Holder Screws.
Needle Pad
The Needle Pad is used to store needles that are not being used.
