BestCode Next Series 8 Technical Manual October 2022 Page 221 of 290

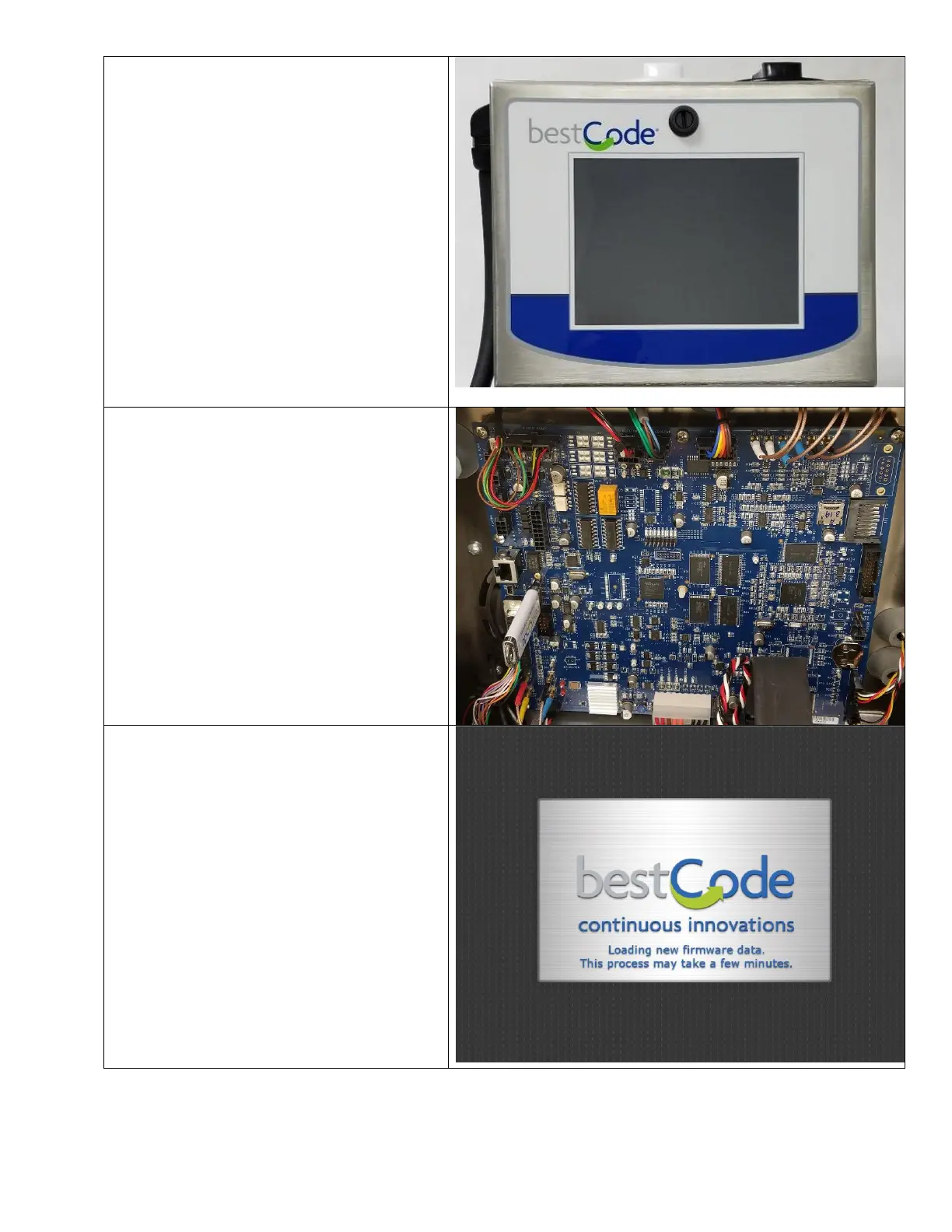

7. The System will power off once the Firmware

Load is Complete.

8. Disconnect the J-Link device.

9. Install the BestCode USB Stick containing the

current Firmware Version Files.

10. Power on the Printer.
