BestCode NExT 86 - Count Screen

BestCode Next Series 8 Technical Manual October 2022 Page 43 of 290
Pin
5
13
4
12
3
11
2
10
Pin
5
13
4
12
3
11
2
10
9
o
o
o
o
x
o
o
x
23
o
o
o
x
o
x
x
x
10
o
o
o
o
x
o
x
o
24
o
o
o
x
x
o
o
o
11
o
o
o
o
x
o
x
x
25
o
o
o
x
x
o
o
x
12
o
o
o
o
x
x
o
o
For continued counting, follow a simple Binary to Decimal Chart. The Decimal value corresponds to the ID Number.
Repeat Print
The printer will produce repeated print when a single print trigger is provided.
Repeat
How many times the print will occur for each print
trigger
0-10000
Delay
Increases or decreases the time between receiving a
print trigger and print occuring.
0-4,000,000,000
Pitch
Specifies the delay between repeated prints.
0-4,000,000,000
AutoPrint
The printer will automatically print with or without a print trigger. The print trigger state for AutoPrint is based off of the Rise
or Fall edge configured in Setup.
Pitch
Specifies the delay between repeated prints.
0-4,000,000,000
Delay
Increases or decreases the time between receiving a
print trigger and print occuring.
0-4,000,000,000

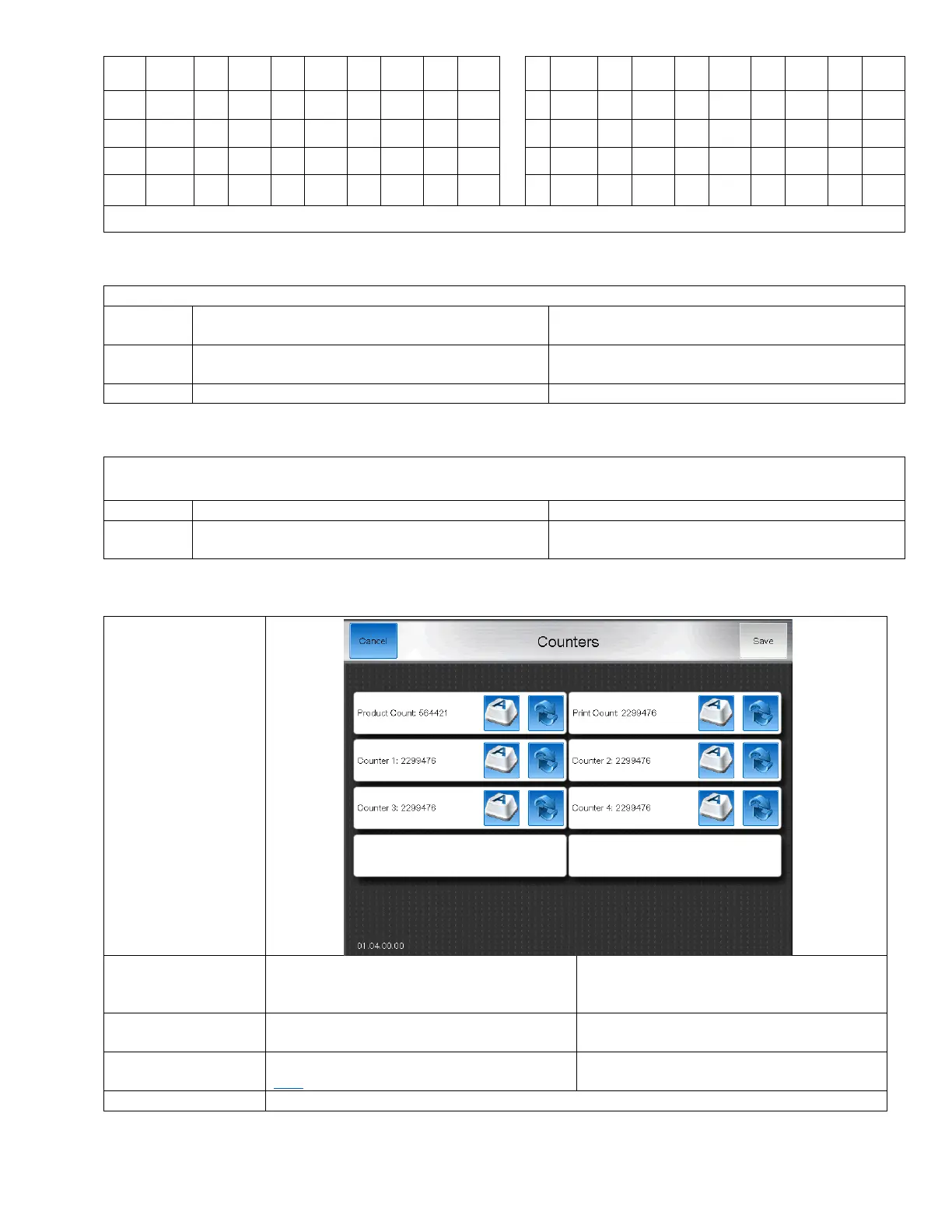

Count Screen
The count screen
keeps track of how
many prints and print
triggers have
occurred.
Product Count
This counter tracks how many print triggers
have been received from the Photoeye
sensor.
0-999,999,999
Print Count
This counter tracks how many prints have
occurred.
0-999,999,999
Counter 1-4
These are setup in the message editor. See
here
0-999,999,999
Counters can be reset OR manually typed in using the buttons next to each counter.
