BestCode Next Series 8 Technical Manual October 2022 Page 22 of 290

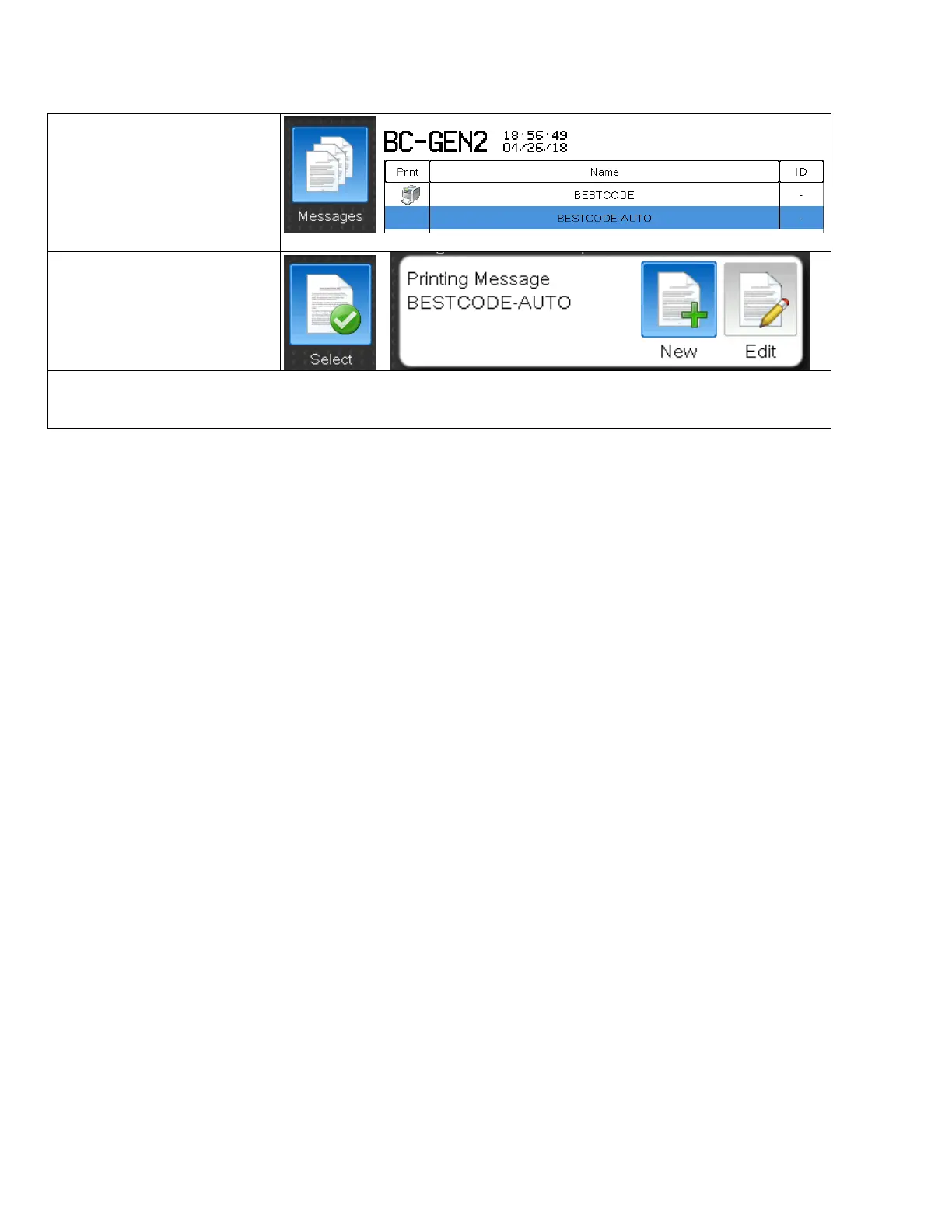

Selecting a message for print

1. Press the Messages Button

2. Select the desire message

3. Press the Select button

4. The selected message will

now be the actively printed

message

Note: The BESTCODE and BESTCODE-AUTO are calibration messages. They cannot be edited or deleted.
