Line Setup
A couple of items must be measured prior to running this mode. The Product Length, Sensor 1 to Print Slot distance,
and the Delay Distance.

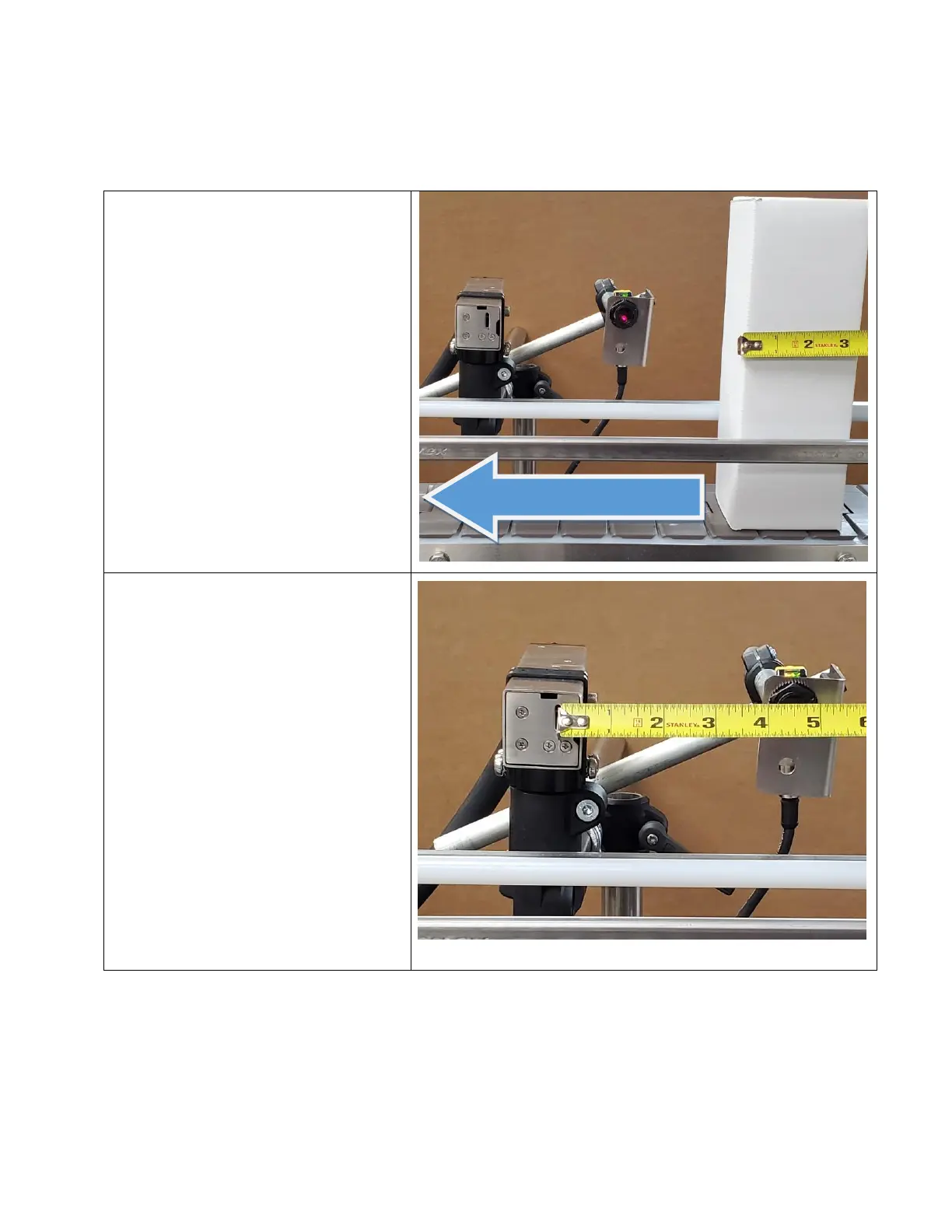

Product Length
A 3.25” product is moving on a conveyor
where it will pass a Print Sensor, then pass in
front of the Printhead.
Sensor 1 to Print Slot Distance
The distance from the Sensor 1 to Print Slot
must be greater than the Product width so
the product has time to pass entirely over the
sensor prior to printing. This is so the sensor
can make the line speed calculation in time
for print to occur.
The sensor distance should be less than 2
times the Product width to ensure that more
than 2 products do not pass the Print Sensor
prior to the 1
st
being printed as there is no
speed buffer to handle multiple unique
measurements.
Example Sensor 1 to Print Slot Distance: 4.5”
