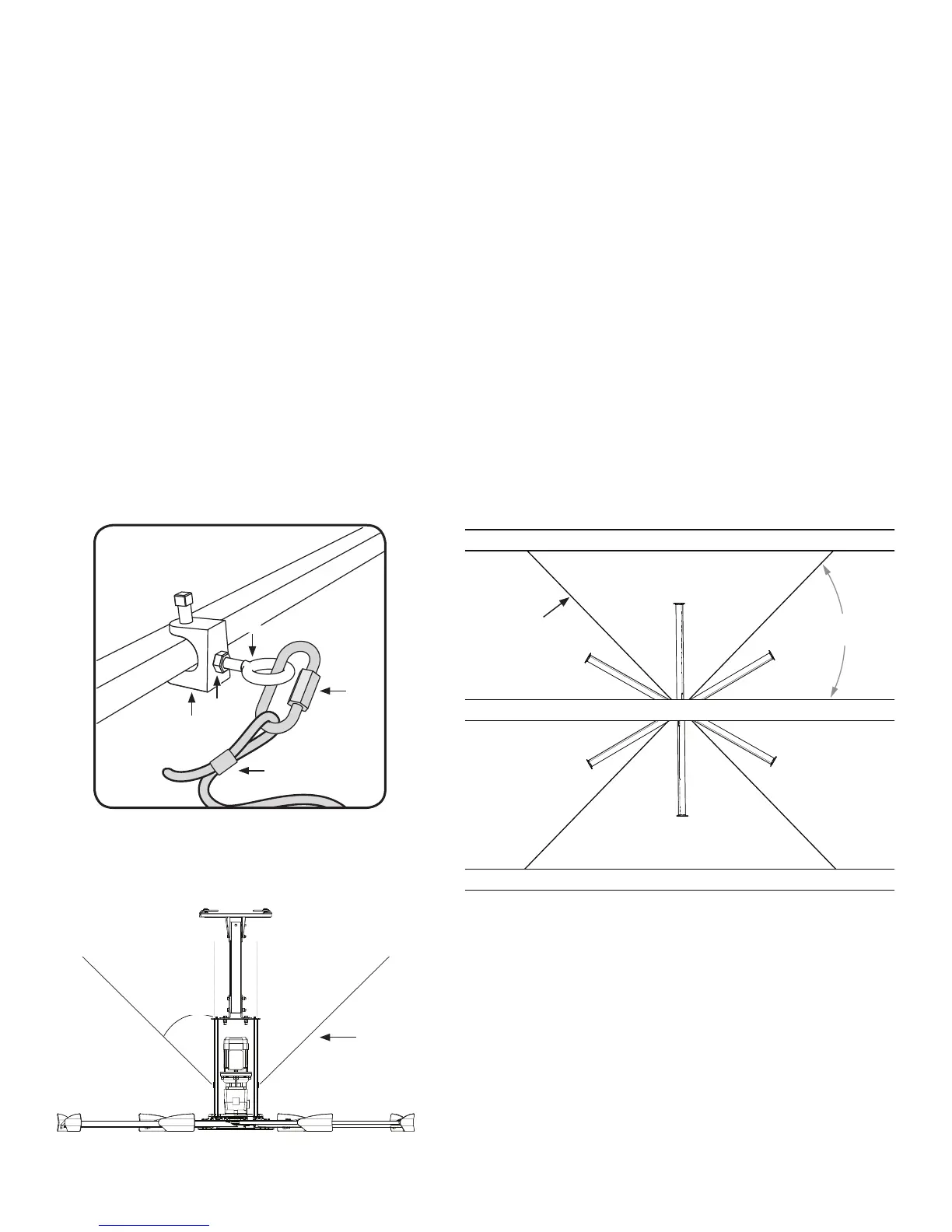

B. Attach beam clamps
For best results, the guy wires should be installed at 45° in the X-Y, Y-Z, and X-Z planes as shown below. If the
angle deviates by more than 15°, contact Customer Service for assistance.
Attach the beam clamp to the mounting structure. The guy wire should be approximately 45° from the horizontal
plane. Place the beam clamp accordingly. Fully tighten the set screw to secure the clamp.
Fasten the small eyebolt and nut onto the beam clamp. The nut will be on the outside of the beam clamp. Loop
the crimped end of the guy wire into the locking carabiner and secure to the eyebolt as shown. Securely tighten
the carabiner.
Guy Wire Hardware*:
a. 1/4” Beam Clamp
b. 1/4-20 x 1” Eyebolt
c. 1/4-20 Hex Nut
d. Locking Carabiner
e. Guy Wire
* The amount of hardware depends on the fan’s number of blades.
Note: I-beams shown above. Your mounting structure may dier.
Guy
Wire
I-Beam
I-Beam
I-Beam
I-Beam
I-Beam
I-Beam
45°
Beam Clamp
e
b
d
c
a
Guy
Wire
45°
