VFD Wiring: 100–125 V & 200–240 V, 1 Ф Controller
WARNING: Wait three minutes after disconnecting before servicing!
WARNING: Improper installation can cause electric shock or damage to the motor and controller. A
qualified electrician should perform the installation.

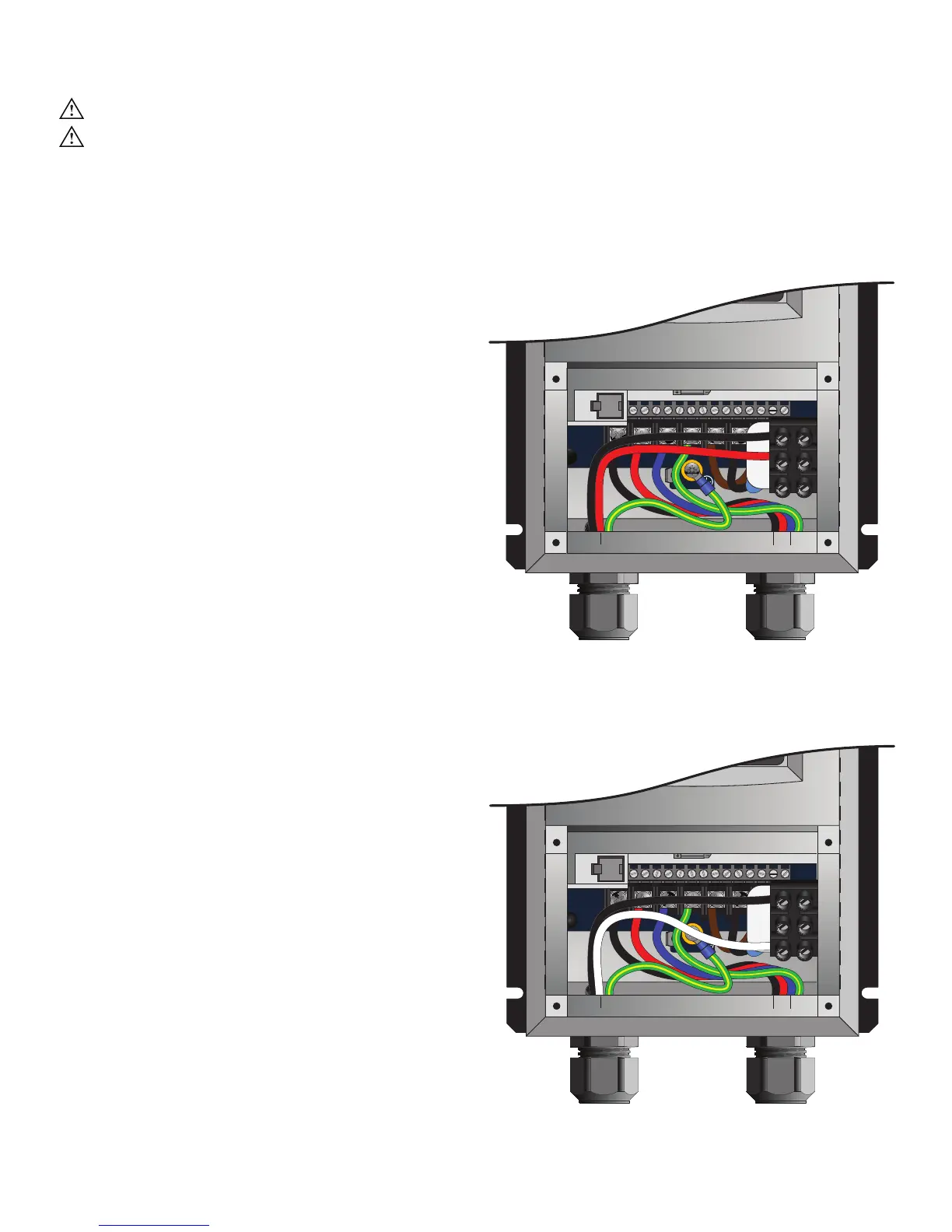

The diagrams below shows wiring options for a 100–125 V and 200–240 V, single-phase VFD. Note: The VFD
does not contain fusing! Power must be supplied to this controller via a dedicated circuit breaker or properly
fused disconnect!
200–240 V, 1 Φ, 50/60 Hz Controllers
The neutral terminal is not used when wiring the VFD
for 200–240 V, 1 Φ. A disconnect and EMI filter are
included with this VFD.
100–125 V, 1 Φ, 50/60 Hz Controllers
(Optional)
The L2 terminal is not used when wiring the VFD for
100–125 V, 1 Φ. A disconnect is included with this VFD.
AC Input Wiring
2W plus GND
Motor Output Wiring
3W plus GND
AC Input Wiring
2W plus GND
Motor Output Wiring
3W plus GND
BLK
BLK
RED
RED GRN/
YEL
GRN/
YEL
BLU
BLK
WHT
GRN/
YEL
BLK
RED GRN/
YEL
BLU
