BIG ASS FANS Basic 6 - Cutting the Extension Tube

Cutting the extension tube
CAUTION: Make sure the safety cable is not damaged after cutting and drilling the extension tube!

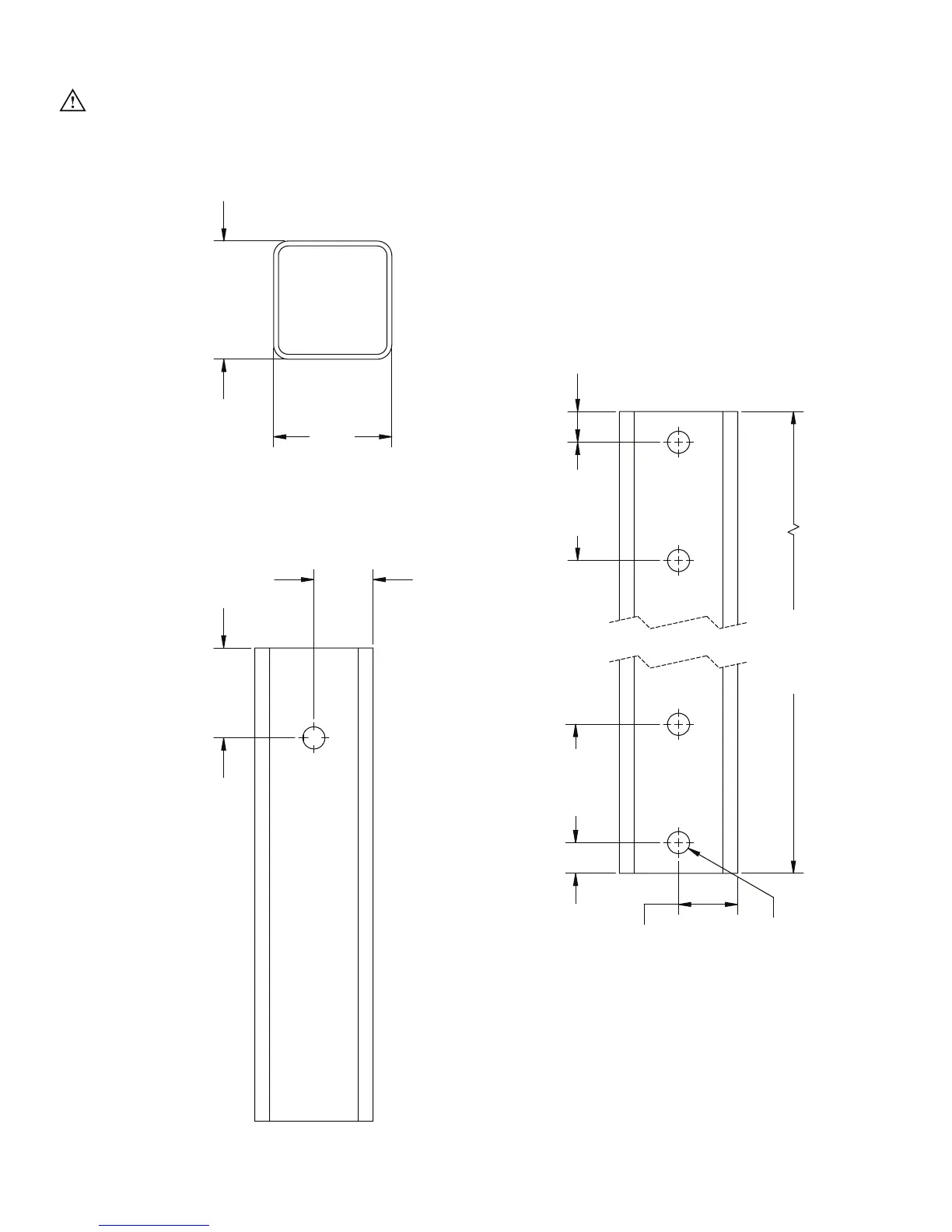

If your mounting structure requires a non-standard extension tube length, use the guidelines below to cut the
extension tube.
IMPORTANT Safety cable is attached here. Do not cut or alter this end!
BOTTOM END—
CUT THIS END
ONLY
TOP
END
Length
Ø0.56” (1.4 cm)
9/16” or 7/32”
Drill Permissible
0.78”
(1.98cm)
0.78” (1.98cm)
1.5”
(3.8 cm)
1.5”
(3.8 cm)
3”
(7.62 cm)
3”
(7.62 cm)
3”
(7.62 cm)
3”
(7.62 cm)
2.8”
(5.79 cm)
