8. Confirm Orientation
After securing the main fan unit to the lower yoke, allow the fan to hang
so that the extension tube is plumb to the ground. When it is properly
positioned, fully tighten all mounting hardware to 40 ft·lb (54.2 N·m).
9. Install Guy Wires
ATTENTION
Guy wires are intended to constrain the fan’s lateral movement and are only included with fans that have
extension tubes 4 ft (1.2 m) or greater in length. Depending on the conditions at the installation site, guy
wires may be needed for fans with shorter tubes to prevent any lateral movement. If guy wires are needed
and were not included with your fan order, contact Big Ass Fans Customer Service.

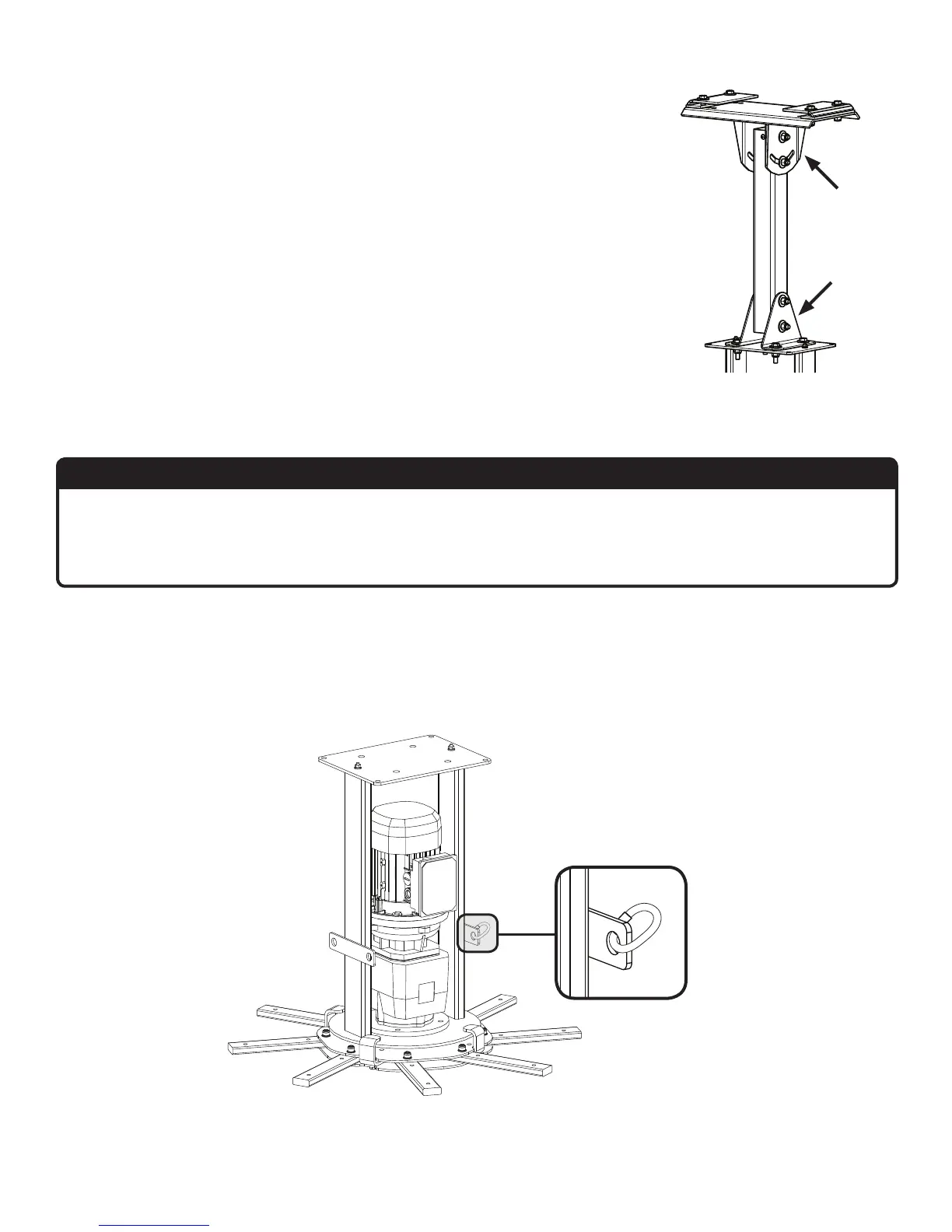

A. Attach locking carabiners to main fan unit
Attach the (4) locking carabiners to the guy wire brackets on the main fan unit as shown. Securely tighten the
carabiners.
